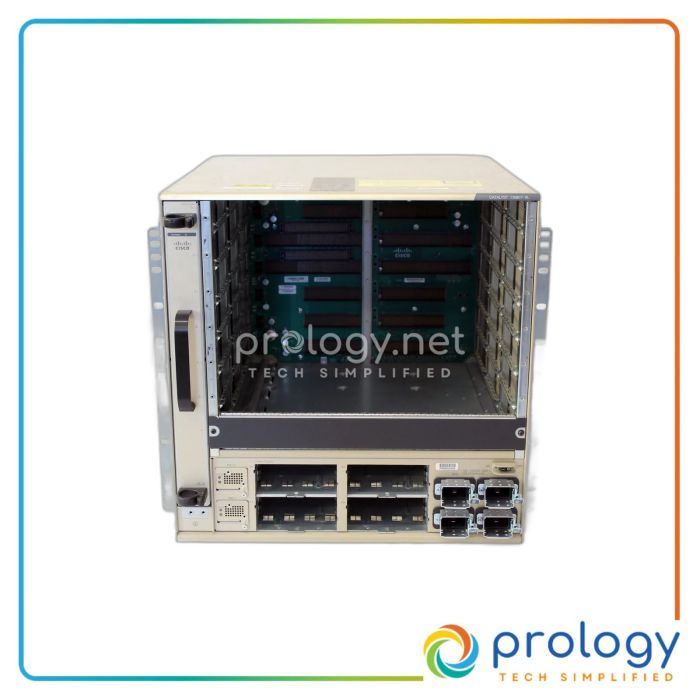

main product photo

Cisco Catalyst 6807-XL 7-Slot Modular Switch – Refurbished | C6807-XL

In Stock
1 units available
SKU
C6807-XL-REFURBISHED
MPN
C6807-XL
Be the first to review this product
A$1,620
The Cisco Catalyst 6807-XL is a refurbished modular switch for enterprise core environments. It features a 7-slot chassis, supports up to 11.4 Tbps, and offers redundant supervisor engines.
In Stock
General
  • Device Type: Switch Chassis
  • Expansion Slots: 7
  • Number of Module Slots: 5
  • Number of Supervisor Engine Slots: 2
  • Redundant Supervisor Engines: Yes
Ports & PoE
  • Port Density: Supports Gigabit, 10G, and 40G Ethernet
Performance & Capacity
  • System Bandwidth Capacity: 11.4 Tbps
  • Per-Slot Switching Capacity: 880 Gbps
Power
  • Power Supply Compatibility: AC: 3000W (up to 4 power supplies)
  • Power Redundancy Scheme: N+1 (with optional power supply)
Physical
  • Width: 17.4 in
  • Depth: 18.1 in
  • Height: 17.4 in
  • Weight: 61.95 lbs
Environmental
  • Operating Humidity Range: 5 - 90% (non-condensing)
  • Max Operating Temperature: 104 °F
  • Min Operating Temperature: 32 °F
  • Max Storage Temperature: 149 °F
  • Min Storage Temperature: -4 °F

Request a quote or add to cart — pricing available on enquiry for refurbished stock.

For international customers, please contact us for personalised support and assistance.

Request Quote / Enquire
180-Days Warranty
Secure Checkout
Free Delivery AU
Dispatch in 1–2 Business Days
Add to Wish List Add to Compare
Cisco · Catalyst 6807-XL Series
C6807-XL 7-Slot Modular Switch Refurbished
Designed for enterprise core and aggregation environments.
Overview
The Cisco Catalyst 6807-XL is a robust modular switch chassis designed for high-density networking in enterprise environments. Built on the Cisco Catalyst 6500 DNA, it supports Gigabit, 10G, and 40G Ethernet port densities, ensuring high levels of network resilience. The chassis is also prepared for future 100 Gigabit Ethernet support, making it a forward-looking choice for network infrastructure.
Key Features
  • Modular Design: Supports up to 7 slots for flexible configuration.
  • High Capacity: Delivers up to 11.4 Tbps system bandwidth.
  • Redundant Supervisor Engines: Features dual supervisor engine slots for enhanced reliability.
  • Power Supply Compatibility: Accommodates up to 4 x 3000W power supplies.
  • Environmental Resilience: Operates in temperatures from 32°F to 104°F.
  • Hot-Swappable Fans: Ensures continuous operation during maintenance.
  • Jumbo Frame Support: Facilitates efficient data handling for large packets.
Specifications
General
Device TypeSwitch Chassis
Expansion Slots7
Number of Module Slots5
Number of Supervisor Engine Slots2
Redundant Supervisor EnginesYes
Ports & PoE
Port DensitySupports Gigabit, 10G, and 40G Ethernet
Performance & Capacity
System Bandwidth Capacity11.4 Tbps
Per-Slot Switching Capacity880 Gbps
Power
Power Supply CompatibilityAC: 3000W (up to 4 power supplies)
Power Redundancy SchemeN+1 (with optional power supply)
Physical
Width17.4 in
Depth18.1 in
Height17.4 in
Weight61.95 lbs
Environmental
Operating Humidity Range5 - 90% (non-condensing)
Max Operating Temperature104 °F
Min Operating Temperature32 °F
Max Storage Temperature149 °F
Min Storage Temperature-4 °F
Compliance
Compliant StandardsAS/NZ 3548 Class A, AS/NZS 60950, EN 60950, UL 60950, NEBS level 3

Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.

Reviews
Write Your Own Review
You're reviewing:Cisco Catalyst 6807-XL 7-Slot Modular Switch – Refurbished | C6807-XL
Your Rating
FAQ

Common questions about the Cisco Catalyst 6807-XL 7-Slot Modular Switch – Refurbished | C6807-XL.

The maximum bandwidth capacity of the C6807-XL is 11.4 Tbps.
The C6807-XL supports a total of 7 slots for modules.
Yes, the C6807-XL can support up to 4 redundant power supplies.
The operating temperature range for the C6807-XL is 32°F to 104°F.
Yes, the fan tray in the C6807-XL is hot-swappable.
The C6807-XL supports Gigabit, 10G, and 40G Ethernet ports.
