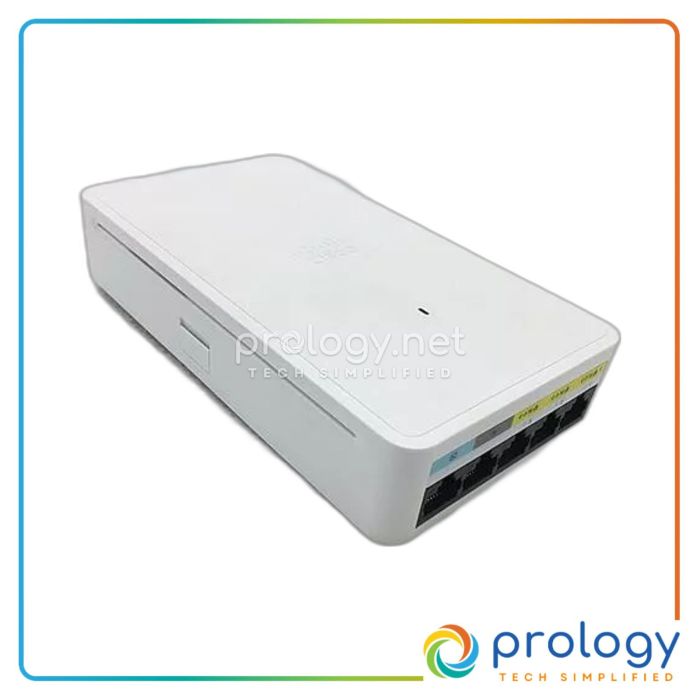

Cisco Catalyst 9105AX 3-Port Wall Plate Access Point Wi-Fi 6 – Refurbished | C9105AXW-K
In Stock — Ready to Ship
1 units available
SKU
C9105AXW-K-REFURBISHED
MPN
C9105AXW-K
A$571
The Cisco Catalyst 9105AXW-K is a refurbished Wi-Fi 6 wall plate access point ideal for enterprise environments. It features 2x2 MIMO, 1.488 Gbps data rates, and integrated Bluetooth 5.
In Stock — Ready To Ship
General
- Model: C9105AXW-K
- Technology: Wi-Fi 6 (802.11ax)
- MIMO: 2x2 uplink/downlink MU-MIMO
- Data Rate: Up to 1.488 Gbps
Ports & PoE
- Uplink Interface: 1x 100/1000/2500 Base-T
- Downlink Interfaces: 3x 10/100/1000 Base-T
- PoE Budget: 10.5W on LAN1
Performance & Capacity
- OFDMA: Yes
- Target Wake Time (TWT): Yes
- BSS Coloring: Yes
Power
- Power Over Ethernet: Yes
Physical
- Width: 3.54 in. (90 mm)
- Depth: 6.3 in. (160 mm)
- Height: 1.3 in. (32.66 mm)
Environmental
- Operating Temperature: 0 to 40 °C
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery AU
Dispatch in 1–2 Business Days
Cisco · Catalyst 9105AX Series
C9105AXW-K 3-Port Wall Plate Access Point Refurbished
Ideal for enterprise environments with advanced connectivity needs.
Overview
The Cisco Catalyst 9105AXW-K is a wall plate access point designed for enterprise-grade environments. It incorporates Wi-Fi 6 technology, ensuring high efficiency and performance for modern applications. With its internal antennas and 2x2 MIMO capabilities, it delivers robust connectivity and supports advanced features like OFDMA and TWT for optimized performance and energy efficiency.
Key Features
- Wi-Fi 6 Technology: Supports advanced applications including 4K/8K video and IoT.
- Data Rate: Achieves PHY data rates up to 1.488 Gbps.
- MIMO Technology: 2x2 MIMO with two spatial streams for enhanced throughput.
- Integrated Bluetooth: Features Bluetooth Low Energy (BLE) 5 for location-based applications.
- OFDMA Support: Reduces overhead and latency for better performance.
- Power Over Ethernet: Supports PoE with LAN1 providing up to 10.5W.
- Compact Design: Dimensions of 3.54 x 6.3 x 1.3 in. (90 x 160 x 32.66 mm).
- Advanced Security: WPA3 support for enhanced security protocols.
Specifications
| General | |
|---|---|
| Model | C9105AXW-K |
| Technology | Wi-Fi 6 (802.11ax) |
| MIMO | 2x2 uplink/downlink MU-MIMO |
| Data Rate | Up to 1.488 Gbps |
| Ports & PoE | |
| Uplink Interface | 1x 100/1000/2500 Base-T |
| Downlink Interfaces | 3x 10/100/1000 Base-T |
| PoE Budget | 10.5W on LAN1 |
| Performance & Capacity | |
| OFDMA | Yes |
| Target Wake Time (TWT) | Yes |
| BSS Coloring | Yes |
| Power | |
| Power Over Ethernet | Yes |
| Physical | |
| Width | 3.54 in. (90 mm) |
| Depth | 6.3 in. (160 mm) |
| Height | 1.3 in. (32.66 mm) |
| Environmental | |
| Operating Temperature | 0 to 40 °C |
| Compliance | |
| Regulatory Domain | K |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco Catalyst 9105AX 3-Port Wall Plate Access Point Wi-Fi 6 – Refurbished | C9105AXW-K.
The maximum data rate is 1.488 Gbps.
It has three 10/100/1000 Base-T downlink interfaces.
Yes, it supports PoE with a budget of 10.5W on LAN1.
It operates in the K regulatory domain.
It uses Wi-Fi 6 technology with features like OFDMA and TWT.
The dimensions are 3.54 x 6.3 x 1.3 in. (90 x 160 x 32.66 mm).
