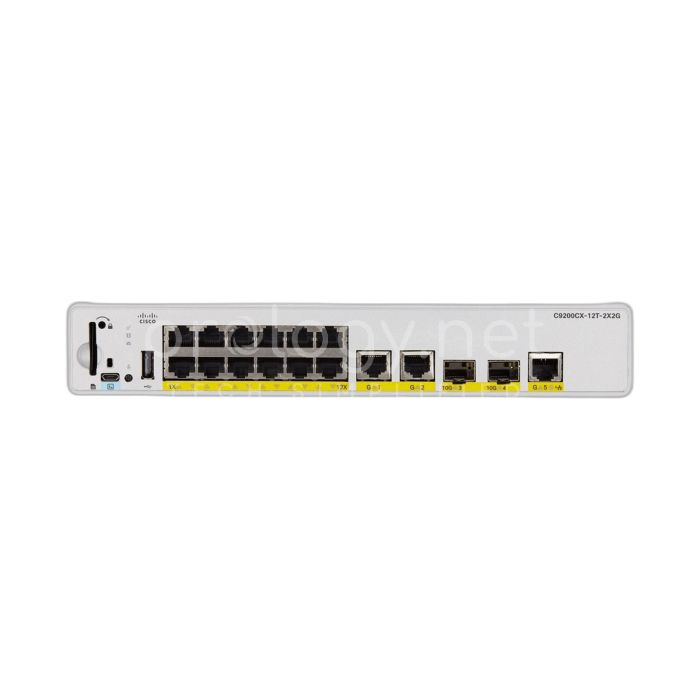

Cisco Catalyst 9200CX 12-Port Gigabit UPOE+ Managed Switch – New | C9200CX-12T-2X2G-E
In Stock — Ready to Ship
1 units available
SKU
C9200CX-12T-2X2G-E-NEW
MPN
C9200CX-12T-2X2G-E
A$2,463
The Cisco Catalyst 9200CX is a new compact switch ideal for modern networks. It features 12 ports, Layer 3 support, and a switching capacity of 120 Gbps.
In Stock — Ready To Ship
General
- Device Type: Switch - 12 ports - L3 - managed
- Enclosure Type: Rack-mountable 1U
Ports & PoE
- Port Quantity: 12
- Uplink Ports: 2 x 1/10GBase-X SFP+
- Power Over Ethernet (PoE): UPOE+
Performance & Capacity
- Switching Capacity: 120 Gbps
- Forwarding Rate: 95.23 Mpps
- Packet Buffer Size: 6 MB
Memory
- RAM: 4 GB
- Flash Memory: 8 GB
Layer & Routing
- Routing Protocols: OSPF, EIGRP, RIP, VRRP, PIM-SM, PIM-SSM
Power
- Power Consumption: 80 W
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery AU
Dispatch in 1–2 Business Days
Cisco · Catalyst 9200CX Series
C9200CX-12T-2X2G-E 12-Port Gigabit UPOE+ Switch New
Designed for high-performance networking in compact environments.
Overview
The Cisco Catalyst 9200CX is engineered to meet the demands of modern networks, offering robust capacity and advanced networking capabilities. With Layer 3 support and a fanless design, it is ideal for organizations looking to future-proof their infrastructure. This switch supports a wide range of virtual networks and routing entries, making it suitable for complex network environments.
Key Features
- Layer 3 Switching: Supports multiple routing protocols including OSPF, EIGRP, and RIP.
- Power over Ethernet: Full UPOE+ capability for up to 12 ports.
- High Performance: Switching capacity of 120 Gbps and forwarding rate of 95.23 Mpps.
- Compact Design: Rack-mountable 1U form factor with a fanless operation.
- Security Features: Includes MACsec support and Access Control List (ACL) capabilities.
- Memory: Equipped with 4 GB RAM and 8 GB flash memory.
- Management Protocols: Supports SNMP, CLI, NETCONF, and RESTCONF for remote management.
- Environmental Resilience: Operating temperature range from 23°F to 113°F with 5-90% humidity.
Specifications
| General | |
|---|---|
| Device Type | Switch - 12 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Ports & PoE | |
| Port Quantity | 12 |
| Uplink Ports | 2 x 1/10GBase-X SFP+ |
| Power Over Ethernet (PoE) | UPOE+ |
| Performance & Capacity | |
| Switching Capacity | 120 Gbps |
| Forwarding Rate | 95.23 Mpps |
| Packet Buffer Size | 6 MB |
| Memory | |
| RAM | 4 GB |
| Flash Memory | 8 GB |
| Layer & Routing | |
| Routing Protocols | OSPF, EIGRP, RIP, VRRP, PIM-SM, PIM-SSM |
| Power | |
| Power Consumption | 80 W |
| Physical | |
| Width | 269.2 mm |
| Depth | 165.1 mm |
| Height | 43.9 mm |
| Weight | 1.81 kg |
| Environmental | |
| Operating Temperature | 23°F to 113°F |
| Humidity Range | 5 - 90% (non-condensing) |
| Compliance | |
| Compliant Standards | IEEE 802.1x, IEEE 802.3, IEEE 802.1Q, RoHS |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco Catalyst 9200CX 12-Port Gigabit UPOE+ Managed Switch – New | C9200CX-12T-2X2G-E.
The switch supports UPOE+ with a maximum power budget of 80 watts.
Yes, the Catalyst 9200CX supports both IPv4 and IPv6 routing.
The switch supports up to 4096 VLAN IDs.
Yes, the Cisco Catalyst 9200CX features a fanless design for silent operation.
The Mean Time Between Failures (MTBF) is 755,270 hours.
The switch can manage up to 32,000 MAC address entries.
