What is the maximum PoE budget for the C9300-48U-A?

The maximum PoE budget for the C9300-48U-A is 822 watts.

How many ports does the C9300-48U-A have?

The C9300-48U-A has 48 ports, all supporting UPOE.

What is the stacking bandwidth of the C9300-48U-A?

The C9300-48U-A supports a stacking bandwidth of 480 Gbps.

What is the forwarding rate of this switch?

The forwarding rate of the C9300-48U-A is 190.48 Mpps.

What routing protocols are supported by the C9300-48U-A?

The switch supports OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, and more.

What are the dimensions of the C9300-48U-A?

The dimensions are 17.5 in width, 17.5 in depth, and 1.7 in height.

NEW

Skip to the end of the images gallery

Skip to the beginning of the images gallery

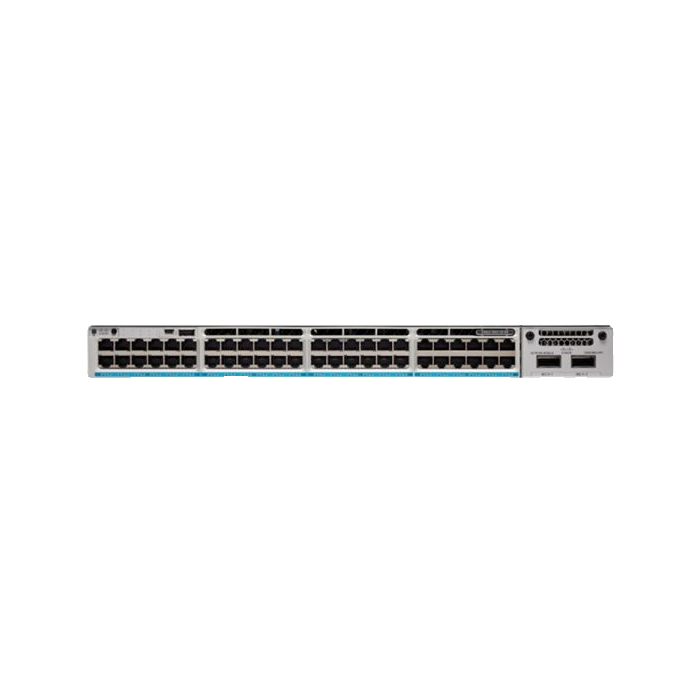

Cisco Catalyst 9300 48-Port UPOE Network Advantage Switch – New | C9300-48U-A

Name: Cisco Catalyst 9300 48-Port UPOE Network Advantage Switch – New | C9300-48U-A
Brand: Cisco
SKU: C9300-48U-A
Price: 3494 AUD
Availability: InStock
Rating: 4.2 (5 reviews)

In Stock

1 units available

SKU

C9300-48U-A-NEW

MPN

C9300-48U-A

Be the first to review this product

A$3,494

The Cisco Catalyst 9300 48-Port UPOE switch is new and ideal for enterprise networks. It features 128 Gbps switching capacity, 480 Gbps stacking bandwidth, and 822 W PoE budget.

In Stock

General

Device Type: Switch - 48 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable 1U

Ports & PoE

Ports: 48 x 10/100/1000 (UPOE)
Power Over Ethernet (PoE): UPOE
PoE Budget: 822 W

Performance & Capacity

Switching Capacity: 128 Gbps
Stacking Bandwidth: 480 Gbps
Forwarding Rate: 190.48 Mpps

Power

Power Device: Internal power supply - hot-plug
Power Redundancy: Optional
Power Provided: 1100 Watt

Physical

Width: 17.5 in
Depth: 17.5 in
Height: 1.7 in
Weight: 17.02 lbs

Environmental

Min Operating Temperature: 0 °C
Max Operating Temperature: 45 °C
Humidity Range Operating: 5 - 90% (non-condensing)

Request a quote or add to cart — pricing available on enquiry for refurbished stock.

For international customers, please contact us for personalised support and assistance.

Request Quote / Enquire

180-Days Warranty

Secure Checkout

Free Delivery AU

Dispatch in 1–2 Business Days

Add to Wish List Add to Compare

Description

Cisco · Catalyst 9300 Series

C9300-48U-A 48-Port UPOE Switch New

High-performance switch for enterprise networks.

Overview

The Cisco Catalyst 9300 is a leading stackable switch designed for high performance and reliability in modern networks. It supports advanced features for security, IoT, and cloud applications. With its x86 CPU architecture, it can run third-party applications, making it suitable for diverse enterprise environments.

Key Features

Switching Capacity: 128 Gbps for efficient data transfer.
Stacking Bandwidth: 480 Gbps for seamless scalability.
PoE Budget: 822 W to power multiple devices.
Ports: 48 x 10/100/1000 Mbps UPOE ports.
Forwarding Rate: 190.48 Mpps for high-speed performance.
Management: Supports SNMP, CLI, NETCONF, and RESTCONF.
Environmental Support: Operating temperature range of 0 to 45°C.
Compliance: Meets various IEEE standards for network reliability.

Specifications

GENERAL
Device Type	Switch - 48 ports - L3 - managed - stackable
Enclosure Type	Rack-mountable 1U
PORTS & POE
Ports	48 x 10/100/1000 (UPOE)
Power Over Ethernet (PoE)	UPOE
PoE Budget	822 W
PERFORMANCE & CAPACITY
Switching Capacity	128 Gbps
Stacking Bandwidth	480 Gbps
Forwarding Rate	190.48 Mpps
POWER
Power Device	Internal power supply - hot-plug
Power Redundancy	Optional
Power Provided	1100 Watt
PHYSICAL
Width	17.5 in
Depth	17.5 in
Height	1.7 in
Weight	17.02 lbs
ENVIRONMENTAL
Min Operating Temperature	0 °C
Max Operating Temperature	45 °C
Humidity Range Operating	5 - 90% (non-condensing)
COMPLIANCE
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
