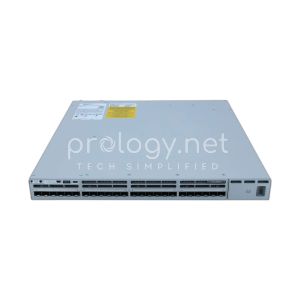

Cisco Catalyst 9300X 24-Port 25G Network Advantage Switch – New | C9300X-24Y-A
In Stock — Ready to Ship
1 units available
SKU
C9300X-24Y-A-NEW
MPN
C9300X-24Y-A
A$21,436
The Cisco Catalyst 9300X is a new managed switch ideal for enterprises. It features 24 x 1/10/25G SFP28 ports, 16 GB RAM, and 2000 Gbps switching capacity.
In Stock — Ready To Ship
Device Type
Switch - 24 ports - L3 - managed - stackable
Enclosure Type
Rack-mountable 1U
Ports
24 x 1/10/25GBase-X SFP28
Switching Capacity
2000 Gbps
Forwarding Rate
1488 Mpps
Stacking Bandwidth
1 Tbps
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery AU
Dispatch in 1–2 Business Days
Cisco · Catalyst 9300 Series
C9300X-24Y-A 24-Port 25G Switch New
Optimized for security, IoT, and cloud applications.
Overview
The Cisco Catalyst 9300X is a leading stackable enterprise switch designed for security, IoT, mobility, and cloud environments. It leverages an x86 CPU architecture, enabling it to host containers and run third-party applications natively. With Cisco StackWise technology, it supports flexible deployment and nonstop forwarding, ensuring high availability and resilience.
Key Features
- High-Density Ports: 24 x 1/10/25G SFP28 ports for versatile connectivity.
- Advanced Performance: 2000 Gbps switching capacity and 1488 Mpps forwarding rate.
- Robust Memory: Equipped with 16 GB RAM and 16 GB flash memory.
- Stacking Capability: Supports up to 1 Tbps stacking bandwidth.
- Power Efficiency: Internal power supply with 715W capacity and redundancy.
- Environmental Compliance: Operates in temperatures from 23°F to 113°F with 5-90% humidity.
- Security Features: Supports 128-bit AES encryption and advanced routing protocols.
Specifications
| General | |
|---|---|
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Ports & PoE | |
| Ports | 24 x 1/10/25GBase-X SFP28 |
| Performance & Capacity | |
| Switching Capacity | 2000 Gbps |
| Forwarding Rate | 1488 Mpps |
| Stacking Bandwidth | 1 Tbps |
| Memory | |
| RAM | 16 GB |
| Flash Memory | 16 GB |
| Layer & Routing | |
| Routing Protocols | OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng |
| Stacking | |
| Stacking Technology | Cisco StackWise |
| Interfaces & Connectivity | |
| USB Ports | 1 x USB 2.0 |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Power Redundancy | Yes |
| Power Provided | 715 Watt |
| Physical | |
| Width | 17.5 in |
| Depth | 17.6 in |
| Height | 1.7 in |
| Weight | Not specified |
| Environmental | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Compliance | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco Catalyst 9300X 24-Port 25G Network Advantage Switch – New | C9300X-24Y-A.
The maximum switching capacity is 2000 Gbps.
The Catalyst 9300X has 24 x 1/10/25G SFP28 ports.
It features an internal hot-plug power supply with 715W capacity and redundancy.
Yes, it supports Cisco StackWise technology with up to 1 Tbps stacking bandwidth.
It operates within a temperature range of 23°F to 113°F and humidity of 5-90%.
It supports OSPF, IS-IS, RIP, IGMP, VRRP, and more.
