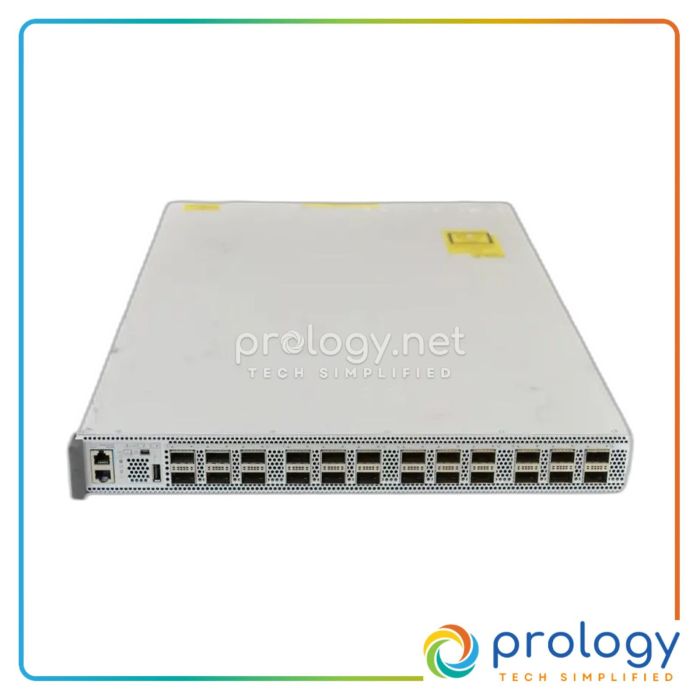

Cisco Catalyst 9500 24-Port 40G Network Essentials Switch – Refurbished | C9500-24Q-E
In Stock — Ready to Ship
1 units available
SKU
C9500-24Q-E-REFURBISHED
MPN
C9500-24Q-E
A$4,159
The Cisco Catalyst 9500-24Q-E is a refurbished 24-port 40G switch for enterprise environments. It offers 960 Gbps switching capacity, 1440 Mpps forwarding rate, and supports advanced security features.
In Stock — Ready To Ship
General
- Device Type: Switch - 24 ports - L3 - managed
- Enclosure Type: Rack-mountable 1U
Ports & PoE
- Ports: 24 x 40Gbit LAN QSFP
- Power Over Ethernet (PoE): UPOE
Performance & Capacity
- Switching Capacity: 960 Gbps
- Forwarding Rate: 1440 Mpps
- Routing Table Entries: 64000
- Indirect IPv4 Routes: 64000
- Host IPv4 Routes: 32000
- Indirect IPv6 Routes: 32000
- Host IPv6 Routes: 16000
- Multicast Scale: 48000
- QoS ACL Scale: 18000
- Security ACL Scale: 18000
- FNF Entries: 512000
- VLAN IDs: 4000
- Switched Virtual Interfaces (SVIs): 4000
Memory
- RAM: 16 GB - DIMM 288-pin - DDR4 SDRAM
- Flash Memory: 16 GB
Layer & Routing
- Routing Protocols: OSPF, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, PIM-SSM, RIPng, MPLS
Power
- Power Supply: Internal power supply - hot-plug
- Power Provided: 950 Watt
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery AU
Dispatch in 1–2 Business Days
Cisco · Catalyst 9500 Series
C9500-24Q-E 24-Port 40G Switch Refurbished
High-performance switch for enterprise campuses.
Overview
The Cisco Catalyst 9500-24Q-E is a next-generation enterprise-class switch designed for core and aggregation layers. Built on an x86 CPU, it is purpose-built for security, IoT, and cloud applications. This switch supports full programmability and serviceability, making it ideal for large-scale deployments in corporate data centers and campuses.
Key Features
- High Performance: 24 ports with 40G Ethernet for high-density switching.
- Robust Security: Advanced Encryption Standard (AES-256) for enhanced security.
- Programmability: Supports Cisco DNA for software-defined access.
- Scalability: Optimized for large-scale enterprise environments.
- Energy Efficiency: Designed for secure and energy-efficient operation.
- StackWise Virtual: Enables multiple switches to operate as a single logical unit.
Specifications
| General | |
|---|---|
| Device Type | Switch - 24 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Ports & PoE | |
| Ports | 24 x 40Gbit LAN QSFP |
| Power Over Ethernet (PoE) | UPOE |
| Performance & Capacity | |
| Switching Capacity | 960 Gbps |
| Forwarding Rate | 1440 Mpps |
| Routing Table Entries | 64000 |
| Indirect IPv4 Routes | 64000 |
| Host IPv4 Routes | 32000 |
| Indirect IPv6 Routes | 32000 |
| Host IPv6 Routes | 16000 |
| Multicast Scale | 48000 |
| QoS ACL Scale | 18000 |
| Security ACL Scale | 18000 |
| FNF Entries | 512000 |
| VLAN IDs | 4000 |
| Switched Virtual Interfaces (SVIs) | 4000 |
| Memory | |
| RAM | 16 GB - DIMM 288-pin - DDR4 SDRAM |
| Flash Memory | 16 GB |
| Layer & Routing | |
| Routing Protocols | OSPF, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, PIM-SSM, RIPng, MPLS |
| Power | |
| Power Supply | Internal power supply - hot-plug |
| Power Provided | 950 Watt |
| Physical | |
| Width | 17.5 in |
| Depth | 21.5 in |
| Height | 1.7 in |
| Weight | 19.00 lbs (8.62 kg) |
| Environmental | |
| Operating Temperature | 32 °F to 104 °F |
| Storage Temperature | -4 °F to 149 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| MTBF | 127,660 hours |
| Compliance | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco Catalyst 9500 24-Port 40G Network Essentials Switch – Refurbished | C9500-24Q-E.
The maximum switching capacity is 960 Gbps.
It has 24 ports, all supporting 40G Ethernet.
Supported routing protocols include OSPF, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, PIM-SSM, RIPng, and MPLS.
The switch weighs 19.00 lbs (8.62 kg).
The operating temperature range is 32 °F to 104 °F.
Yes, it supports UPOE (Universal Power over Ethernet).
