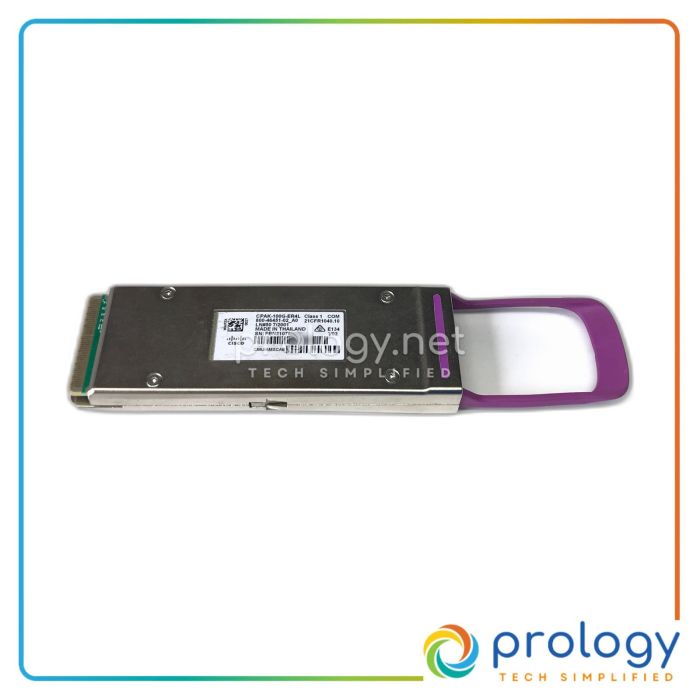

Cisco CPAK-100G-ER4L 100GBASE-ER4 Lite CPAK Module – Refurbished | CPAK-100G-ER4L
In Stock — Ready to Ship
1 units available
SKU
CPAK-100G-ER4L-REFURBISHED
MPN
CPAK-100G-ER4L
A$35,064
The Cisco CPAK-100G-ER4L is a refurbished 100G transceiver module ideal for data centers. It supports 100 Gbps data rates, operates over single-mode fiber, and reaches up to 40 km.
In Stock — Ready To Ship
Device Type
CPAK transceiver module
Form Factor
Plug-in module
Interfaces
1 x Ethernet 100GBase-ER4Lite - SC/PC single-mode female x 2
Data Transfer Rate
100 Gbps
Optical Wavelength
1310 nm
Max Transfer Distance
40 km
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery AU
Dispatch in 1–2 Business Days
Cisco · CPAK Series
CPAK-100G-ER4L 100GBASE-ER4 Lite CPAK Module Refurbished
High-density optical module for extended reach applications.
Overview
The Cisco CPAK-100G-ER4L 100GBASE-ER4 Lite CPAK Module enhances high-bandwidth systems by utilizing single-mode fiber for distances up to 40 kilometers. This compact optical module is engineered for efficiency, making it suitable for large-scale data centers and high-end routing applications where long-range data transmission is essential. It adheres to 100GBASE-ER4 standards, ensuring compatibility with existing networks while providing an upgrade path to faster speeds.
Key Features
- High Data Rate: Supports 100 Gbps data transfer rates.
- Extended Reach: Operates over single-mode fiber up to 40 km.
- Low Power Consumption: Efficient design with operational power usage of 7.5 Watts.
- Hot-Swappable: Facilitates easy replacement without downtime.
- Digital Optical Monitoring: Supports DOM for real-time monitoring.
- Compact Form Factor: Designed for high-density applications.
Specifications
| General | |
|---|---|
| Device Type | CPAK transceiver module |
| Form Factor | Plug-in module |
| Ports & PoE | |
| Interfaces | 1 x Ethernet 100GBase-ER4Lite - SC/PC single-mode female x 2 |
| Performance | |
| Data Transfer Rate | 100 Gbps |
| Optical Wavelength | 1310 nm |
| Max Transfer Distance | 40 km |
| Power | |
| Power Consumption (Operational) | 7.5 Watt |
| Physical | |
| Width | 3.48 cm |
| Depth | 10.12 cm |
| Height | 1.4 in |
| Weight | 4.48 oz |
| Environmental | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Compliance | |
| Compliant Standards | IEEE 802.3ba, Laser Class 1, RoHS, GR-326-CORE, GR-20-CORE |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco CPAK-100G-ER4L 100GBASE-ER4 Lite CPAK Module – Refurbished | CPAK-100G-ER4L.
The CPAK-100G-ER4L can transmit data up to 40 kilometers over single-mode fiber.
The operational power consumption of the CPAK-100G-ER4L is 7.5 Watts.
Yes, the CPAK-100G-ER4L is designed to be hot-swappable for ease of maintenance.
The CPAK-100G-ER4L uses single-mode fiber for its connections.
It complies with IEEE 802.3ba, Laser Class 1, RoHS, GR-326-CORE, and GR-20-CORE.
The optical wavelength of the CPAK-100G-ER4L is 1310 nm.
