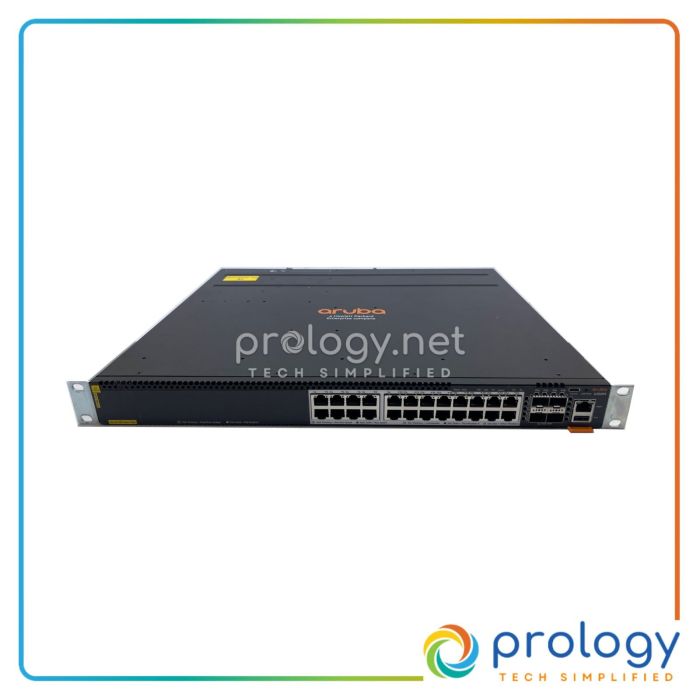

HPE CX 6300M 24-Port 5GbE PoE+ Managed Switch – New | JL660A
In Stock — Ready to Ship
4 units available
SKU
JL660A-NEW
MPN
JL660A
A$16,209
The HPE CX 6300M is a new managed switch ideal for enterprise networks. It features 24 x 5GbE ports, 4 x 50GbE uplinks, and a PoE budget of 1440W.
Available via Supplier
General
- Product Type: Ethernet Switch
- Manageable: Yes
- Layer Supported: 3
Ports & PoE
- Total Number of Network Ports: 24
- PoE Ports: 24 x 5GbE PoE+
- Uplink Ports: 4 x 50GbE SFP56
Performance & Capacity
- Switching Capacity: 640 Gbps
- Throughput: 476 Mpps
Power
- PoE Budget: 1440 W
Physical
- Width: 442 mm
- Depth: 385 mm
- Height: 44 mm
- Weight: 6.06 kg
Environmental
- Operating Temperature: 0 °C to 45 °C
- Storage Temperature: -40 °C to 70 °C
- Operating Humidity: 15% to 95% (non-condensing)
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery AU
Dispatch in 1–2 Business Days
HPE · CX 6300 Series
JL660A 24-Port 5GbE PoE+ Switch New
Designed for enterprise networks with high performance and flexibility.
Overview
The HPE CX 6300M is a modern, stackable managed switch tailored for enterprise access, aggregation, and core deployments. Built on a powerful HPE Aruba Gen7 ASIC architecture, it offers high performance and programmability for future applications. This switch supports high-density PoE and advanced networking features, making it suitable for IoT and cloud applications.
Key Features
- 24 x 5GbE Ports: Provides high-speed connectivity for devices.
- 4 x 50GbE Uplinks: Supports high-speed stacking and uplink capabilities.
- PoE Budget: 1440W PoE+ for powering devices.
- Switching Capacity: 640 Gbps for efficient data handling.
- Throughput: 476 Mpps for high-performance routing.
- Layer 3 Support: Advanced routing protocols including BGP and OSPF.
- 1U Rack-Mountable: Compact design for efficient space utilization.
- Dynamic Segmentation: Enhances security and access control.
Specifications
| General | |
|---|---|
| Product Type | Ethernet Switch |
| Manageable | Yes |
| Layer Supported | 3 |
| Ports & PoE | |
| Total Number of Network Ports | 24 |
| PoE Ports | 24 x 5GbE PoE+ |
| Uplink Ports | 4 x 50GbE SFP56 |
| Performance & Capacity | |
| Switching Capacity | 640 Gbps |
| Throughput | 476 Mpps |
| Power | |
| PoE Budget | 1440 W |
| Physical | |
| Width | 442 mm |
| Depth | 385 mm |
| Height | 44 mm |
| Weight | 6.06 kg |
| Environmental | |
| Operating Temperature | 0 °C to 45 °C |
| Storage Temperature | -40 °C to 70 °C |
| Operating Humidity | 15% to 95% (non-condensing) |
| Compliance | |
| Certifications | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the HPE CX 6300M 24-Port 5GbE PoE+ Managed Switch – New | JL660A.
The HPE CX 6300M has a PoE budget of 1440W, allowing it to power multiple devices simultaneously.
The switch features 4 x 50GbE SFP56 uplink ports for high-speed connectivity.
It has a switching capacity of 640 Gbps, ensuring efficient data handling.
Yes, it is designed for enterprise networks, providing high performance and flexibility.
The maximum operating temperature is 45 °C.
Yes, it supports stacking with up to 10 switches using the Virtual Stacking Framework.
