Cisco Meraki Dual-Band Omni Antenna (4/7 dBi Gain) Set – Refurbished | MA-ANT-20
In Stock — Ready to Ship
4 units available
SKU
MA-ANT-20-REFURBISHED
MPN
MA-ANT-20
A$153

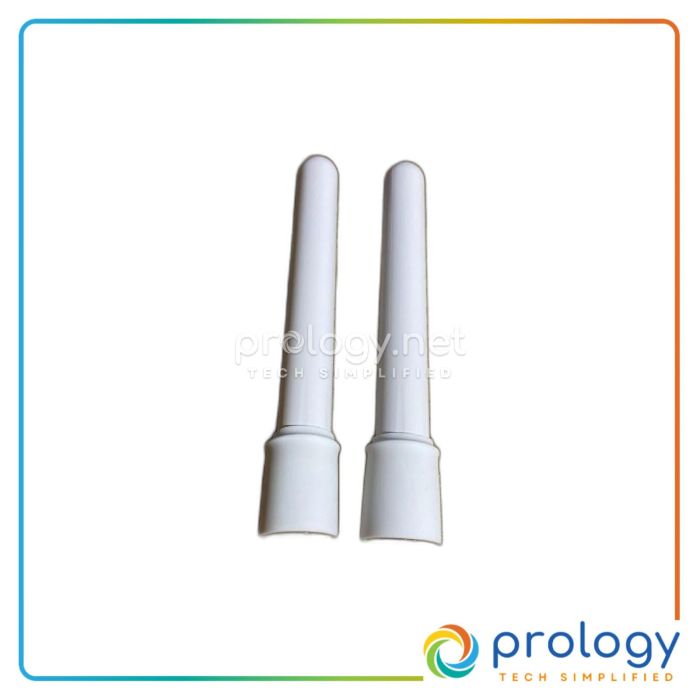

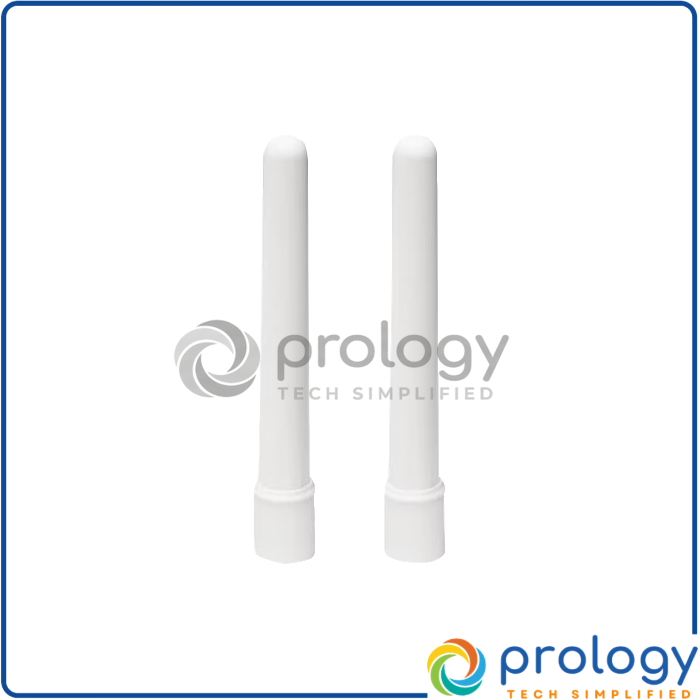

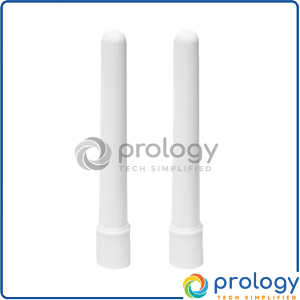

The Cisco Meraki MA-ANT-20 is a refurbished dual-band omni-directional antenna set designed for Meraki access points. It features 4 dBi gain at 2.4 GHz, 7 dBi gain at 5 GHz, and 360° coverage.
In Stock — Ready To Ship
Antenna Gain 2.4 GHz
4 dBi
Antenna Gain 5 GHz
7 dBi
Frequency Range
2.4 - 2.5 GHz, 5.150 - 5.875 GHz
Horizontal Beamwidth
360°
Vertical Beamwidth
45°
Width
1 inch
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery AU
Dispatch in 1–2 Business Days
Cisco · Meraki
MA-ANT-20 4/7 dBi Dual-Band Omni Antenna Set Refurbished
Enhance your network coverage with reliable performance.
Overview
The Cisco Meraki MA-ANT-20 is a dual-band, omni-directional antenna designed for use with Meraki access points featuring N-type connectors. This antenna set enhances Wi-Fi coverage and signal strength, making it suitable for various applications. With a gain of 4 dBi at 2.4 GHz and 7 dBi at 5 GHz, it provides 360-degree coverage, ensuring reliable connectivity in both indoor and outdoor environments.
Key Features
- Dual-Band Functionality: Supports both 2.4 GHz and 5 GHz frequencies.
- Omni-Directional Coverage: Provides 360° horizontal beamwidth for broad signal distribution.
- High Gain: 4 dBi gain at 2.4 GHz and 7 dBi gain at 5 GHz for improved performance.
- Durable Construction: Made from ABS plastic for longevity in various environments.
- Compact Dimensions: Measures 1 inch in width and 7.1 inches in height.
- Lightweight Design: Each antenna weighs 2.79 ounces (79 grams).
- Temperature Resilience: Operates effectively between -40°F and 158°F.
- Easy Installation: Direct connection to compatible Meraki access points via N-type connectors.
Specifications
| General | |
|---|---|
| Brand | Cisco Meraki |
| Model | MA-ANT-20 |
| Product Type | Antenna |
| Performance | |
| Antenna Gain | 4 dBi at 2.4 GHz, 7 dBi at 5 GHz |
| Frequency Range | 2.4 - 2.5 GHz, 5.150 - 5.875 GHz |
| Directivity | Omni-directional |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 45° |
| Physical | |
| Width | 1 inch |
| Height | 7.1 inches |
| Weight | 2.79 ounces (79 grams) |
| Environmental | |
| Min Operating Temperature | -40°F |
| Max Operating Temperature | 158°F |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco Meraki Dual-Band Omni Antenna (4/7 dBi Gain) Set – Refurbished | MA-ANT-20.
The MA-ANT-20 antenna has a gain of 4 dBi at 2.4 GHz and 7 dBi at 5 GHz.
The MA-ANT-20 uses an N-type connector for direct attachment to Meraki access points.
Yes, the MA-ANT-20 is designed for both indoor and outdoor deployments.
The MA-ANT-20 operates effectively between -40°F and 158°F.
The MA-ANT-20 is sold in sets of 2 antennas.
The MA-ANT-20 provides a horizontal beamwidth of 360°.
