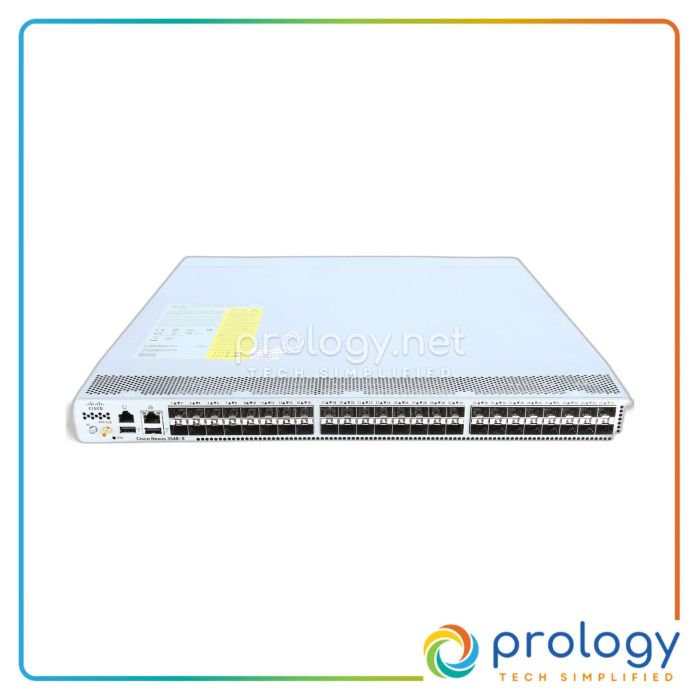

Cisco Nexus 3524-XL 24-Port 10 Gigabit Ethernet Switch – New | N3K-C3524P-XL

Name: Cisco Nexus 3524-XL 24-Port 10 Gigabit Ethernet Switch – New | N3K-C3524P-XL
Brand: Cisco
SKU: N3K-C3524P-XL
Availability: BackOrder
Rating: 4.4 (5 reviews)

Out of stock

SKU

N3K-C3524P-XL-NEW

MPN

N3K-C3524P-XL

Be the first to review this product

A$0

The Cisco Nexus 3524-XL is a new 24-port switch ideal for data centers. It features 480 Gbps switching capacity, 360 mpps forwarding performance, and supports low-latency operations.

Out of Stock

Device Type Switch - 24 ports - L3 - managed

Enclosure Type Rack-mountable 1U

Ports 24 x 10GBase-X SFP+

Switching Capacity 480 Gbps

Forwarding Performance 360 mpps

RAM 16 GB

Request a quote or add to cart — pricing available on enquiry for refurbished stock.

For international customers, please contact us for personalised support and assistance.

Request Quote / Enquire

180-Days Warranty

Secure Checkout

Free Delivery AU

Dispatch in 1–2 Business Days

Add to Wish List Add to Compare

Description

Cisco · Nexus 3000 Series

N3K-C3524P-XL 24-Port 10 Gigabit Ethernet Switch New

Designed for high-density data center environments.

Overview

The Cisco Nexus 3524-XL Switch is a compact 1RU switch built on a Switch-on-a-Chip (SoC) architecture, providing line-rate Layer 2 and 3 performance. It is optimized for low-latency operations, making it suitable for high-frequency trading, high-performance computing, and big data applications. With 24 SFP+ ports supporting 10 Gigabit Ethernet and Fiber Channel over Ethernet (FCoE), it enhances network infrastructure capabilities while ensuring operational efficiency.

Key Features

High Performance: Up to 480 Gbps of switching capacity.
Low Latency: Optimized for critical data center operations.
Robust Software: Runs on Cisco NX-OS for enhanced security and management.
Redundant Power: Dual hot-swappable power supplies for high availability.
Flexible Airflow: Supports both forward and reversed airflow schemes.
Extensive Capacity: Supports up to 4096 VLANs and 64,000 MAC addresses.
Advanced Security: Comprehensive features to protect the network.

Specifications

General
Device Type	Switch - 24 ports - L3 - managed
Enclosure Type	Rack-mountable 1U
Ports & PoE
Ports	24 x 10GBase-X SFP+
Performance & Capacity
Switching Capacity	480 Gbps
Forwarding Performance	360 mpps
MAC Address Table Size	64K entries
VLANs Supported	4096
Memory
RAM	16 GB
Flash Memory	16 GB
Layer & Routing
Routing Protocols	OSPF, RIP-2, BGP, EIGRP, IGMPv2, HSRP, VRRP, OSPFv2, PIM-SM
Power
Power Supply	Dual internal power supply - hot-plug
Power Redundancy	Yes, 1+1 scheme
Physical
Width	17.3 in (43.9 cm)
Depth	18.4 in (46.7 cm)
Height	1.7 in (4.36 cm)
Weight	17.4 lb (7.9 kg)
Environmental
Operating Temperature	32 °F to 104 °F (0 °C to 40 °C)
Humidity Range	10 - 85% (non-condensing)
Compliance
Compliant Standards	IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP)
