Cisco Nexus 56128P 48-Port 10G SFP+ Layer 2/3 Switch – Refurbished | N5K-C56128P
In Stock — Ready to Ship
1 units available
SKU
N5K-C56128P-REFURBISHED
MPN
N5K-C56128P
A$662

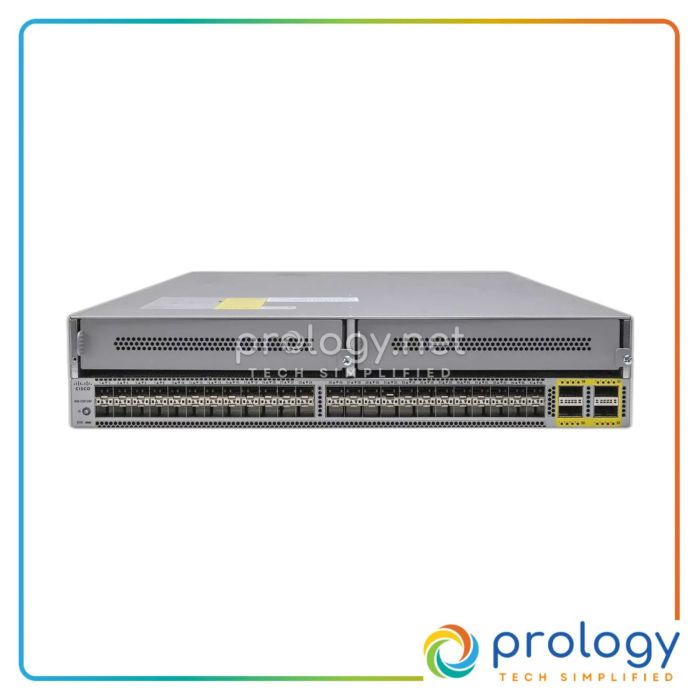

The Cisco Nexus 56128P is a refurbished 2RU switch ideal for data centers. It features 48 x 10G SFP+ ports, 4 x 40G QSFP+ ports, and supports 2.56 Tbps bandwidth.
In Stock — Ready To Ship
General
- Device Type: Switch - 48 ports - L3 - Managed
- Enclosure Type: Rack-mountable 2U
Ports & PoE
- Fixed Interfaces: 48 x 1 Gigabit / 10 Gigabit SFP+ + 4 x 40Gb Ethernet / FCoE QSFP+
Performance & Capacity
- Switching Capacity: 2.56 Tbps
- Forwarding Rate: 1904 Mpps (64-byte packets)
- MAC Address Table Size: 256K entries
- ARP Entries: 256000
- VLANs: 4096
- Jumbo Frame Support: 9216 bytes
Power
- Power Supply: 4 (max), hot-swappable
- Power Provided: 1100 Watt
- Voltage Required: AC 120/230 V (50/60 Hz)
Physical
- Width: 43.9 cm
- Depth: 76.2 cm
- Height: 8.8 cm
- Weight: 60 lb (27.2 kg)
Environmental
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -40°C to 70°C
- Humidity Range: 5 - 95% (non-condensing)
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery AU
Dispatch in 1–2 Business Days
Cisco · Nexus 5000 Series
Nexus 56128P 48-Port 10G SFP+ Switch Refurbished
High-density switch for modern data centers.
Overview
The Cisco Nexus 56128P is a 2RU switch designed for high-performance data center environments. It supports Layer 2 and Layer 3 operations, optimized for 10 Gigabit Ethernet top-of-rack access and Cisco Fabric Extender aggregation. With a switching capacity of 2.56 Tbps, it ensures reliable throughput and low latency, making it suitable for both traditional and virtualized workloads.
Key Features
- High Bandwidth: Supports 2.56 Tbps switching capacity.
- Port Configuration: 48 x 10G SFP+ and 4 x 40G QSFP+ ports.
- Layer 2/3 Support: Capable of both Layer 2 and Layer 3 operations.
- Low Latency: Approximately 1 microsecond latency for consistent performance.
- Redundant Power: Supports up to 4 hot-swappable power supplies.
- Advanced Features: Includes support for VXLAN and FCoE.
- Environmental Resilience: Operates in temperatures from 0°C to 40°C.
- Management Protocols: Supports SNMP, SSH, and RADIUS for secure management.
Specifications
| General | |
|---|---|
| Device Type | Switch - 48 ports - L3 - Managed |
| Enclosure Type | Rack-mountable 2U |
| Ports & PoE | |
| Fixed Interfaces | 48 x 1 Gigabit / 10 Gigabit SFP+ + 4 x 40Gb Ethernet / FCoE QSFP+ |
| Performance & Capacity | |
| Switching Capacity | 2.56 Tbps |
| Forwarding Rate | 1904 Mpps (64-byte packets) |
| MAC Address Table Size | 256K entries |
| ARP Entries | 256000 |
| VLANs | 4096 |
| Jumbo Frame Support | 9216 bytes |
| Power | |
| Power Supply | 4 (max), hot-swappable |
| Power Provided | 1100 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Physical | |
| Width | 43.9 cm |
| Depth | 76.2 cm |
| Height | 8.8 cm |
| Weight | 60 lb (27.2 kg) |
| Environmental | |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Humidity Range | 5 - 95% (non-condensing) |
| Compliance | |
| Compliant Standards | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1Qbb, IEEE 802.1Qaz, FIP v1 |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco Nexus 56128P 48-Port 10G SFP+ Layer 2/3 Switch – Refurbished | N5K-C56128P.
The maximum switching capacity is 2.56 Tbps.
It has 48 x 10G SFP+ ports and 4 x 40G QSFP+ ports.
The operating temperature range is from 0°C to 40°C.
Yes, it supports both Layer 2 and Layer 3 operations.
It uses 4 hot-swappable power supplies with a total power provision of 1100 Watts.
The weight of the switch is 60 lb (27.2 kg).
No documents available for this product yet.
