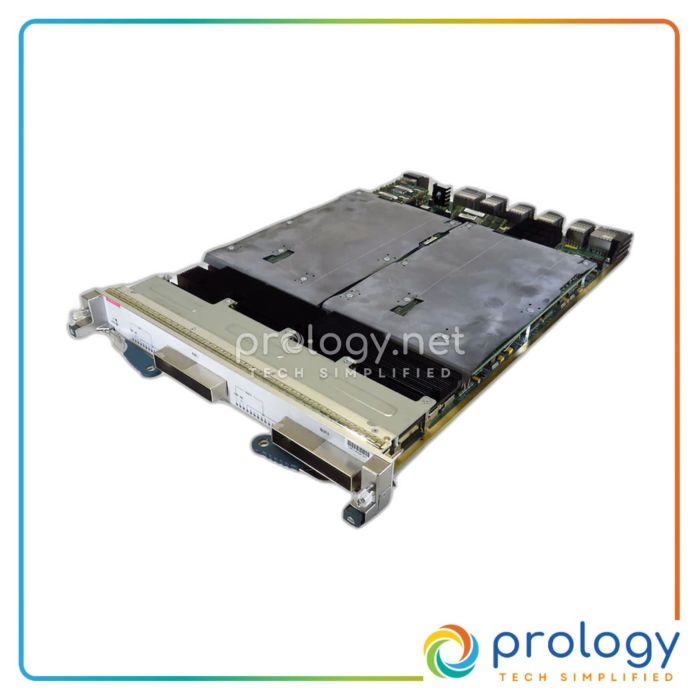

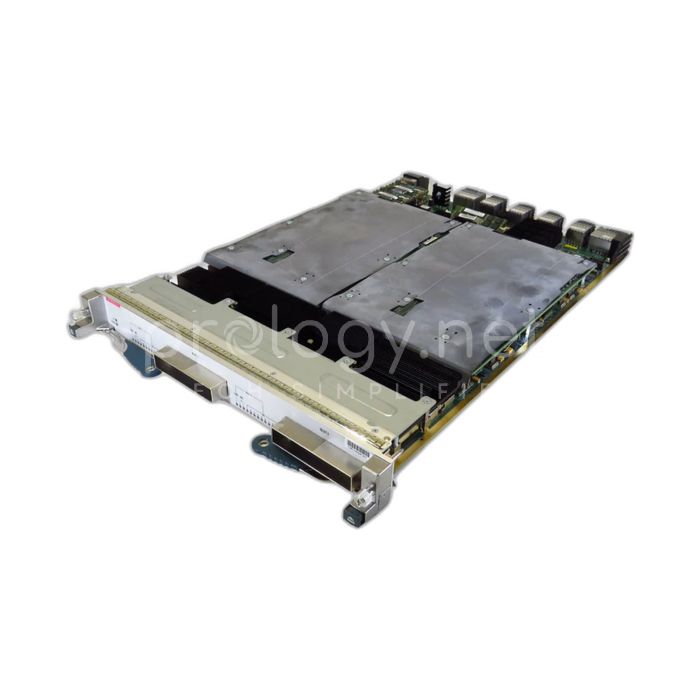

Cisco Nexus 7000 M2-Series 2-Port 100GbE with XL Option Switch – Refurbished | N7K-M202CF-22L
In Stock — Ready to Ship
1 units available
SKU
N7K-M202CF-22L-REFURBISHED
MPN
N7K-M202CF-22L
A$1,653
The Cisco Nexus 7000 M2-Series 2-Port 100GbE module is refurbished and ideal for service providers. It features 2 ports of 100GbE, supports up to 1 million IPv4 routes, and has a MAC address table size of 128K.
In Stock — Ready To Ship
General
- Device Type: Switch - 2 ports
- Enclosure Type: Plug-in module
Ports & PoE
- Ports: 2 x 100Gb Ethernet - CFP
Performance & Capacity
- IPv4 Routes: up to 1000000
- IPv6 Routes: up to 350000
- NetFlow Entries: 512000
- ACL: 128000
- MAC Address Table Size: 128K entries
Memory
- RAM: 2 GB
Physical
- Width: 38.9 cm
- Depth: 21.9 in
- Height: 1.7 in
- Weight: 16.98 lbs
Environmental
- Min Operating Temperature: 32 °F
- Max Operating Temperature: 104 °F
- Humidity Range Operating: 5 - 90% (non-condensing)
- Min Storage Temperature: -40 °F
- Max Storage Temperature: 158 °F
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery AU
Dispatch in 1–2 Business Days
Cisco · Nexus 7000 Series
N7K-M202CF-22L 2-Port 100GbE Switch Refurbished
High-density 100GbE connectivity for data-intensive environments.
Overview
The Cisco Nexus 7000 M2-Series 2-Port 100 Gigabit Ethernet Module with XL Option is a high-performance module designed for scalable network architectures. It provides non-blocking 100GbE performance on each port, making it suitable for large network cores and service provider environments. The XL option enhances scalability, supporting CFP optical transceivers for robust connectivity and high data transfer rates.
Key Features
- High-Density Connectivity: Supports up to 32 non-blocking 100GbE ports in a single Nexus 7000 chassis.
- Scalability: Integrated XL option for enhanced network scalability.
- Performance: Non-blocking architecture optimised for data-intensive applications.
- Environmental Efficiency: Designed for lower power consumption.
- Advanced Security: Features 128-bit AES encryption and support for VLANs.
- Robust Capacity: Up to 1 million IPv4 routes and 350,000 IPv6 routes.
- Jumbo Frame Support: Supports jumbo frames up to 9216 bytes.
Specifications
| General | |
|---|---|
| Device Type | Switch - 2 ports |
| Enclosure Type | Plug-in module |
| Ports & PoE | |
| Ports | 2 x 100Gb Ethernet - CFP |
| Performance & Capacity | |
| IPv4 Routes | up to 1000000 |
| IPv6 Routes | up to 350000 |
| NetFlow Entries | 512000 |
| ACL | 128000 |
| MAC Address Table Size | 128K entries |
| Memory | |
| RAM | 2 GB |
| Physical | |
| Width | 38.9 cm |
| Depth | 21.9 in |
| Height | 1.7 in |
| Weight | 16.98 lbs |
| Environmental | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Compliance | |
| Compliant Standards | NEBS level 3, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, EMC, ICES-003 Class A, FCC CFR47 Part 15, EN 300-386, IEC 60950-1, UL 60950-1 Second Edition, EN 60601-1-2 |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco Nexus 7000 M2-Series 2-Port 100GbE with XL Option Switch – Refurbished | N7K-M202CF-22L.
The module supports up to 32 non-blocking 100GbE ports in a single Nexus 7000 chassis.
It supports CFP optical transceivers for robust connectivity.
The maximum operating temperature is 104 °F.
It can handle up to 1 million IPv4 routes.
The module weighs 16.98 lbs.
Yes, it supports jumbo frames up to 9216 bytes.
