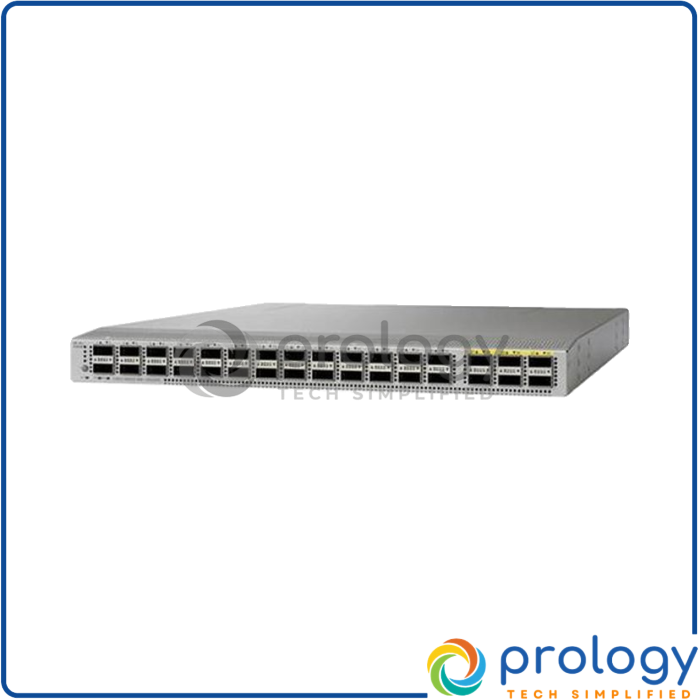

main product photo

Cisco Nexus 9300 32-Port 40G QSFP+ Managed Switch – Refurbished | N9K-C9332PQ

In Stock
1 units available
SKU
N9K-C9332PQ-REFURBISHED
MPN
N9K-C9332PQ
Be the first to review this product
A$650
The Cisco N9K-C9332PQ Nexus 9300 is a refurbished switch ideal for data centers. It features 32 ports of 40G QSFP+, 2.56 Tbps bandwidth, and low-latency performance.
In Stock
General
  • Device Type: Switch - 32 ports - L3 - Managed
  • Enclosure Type: Desktop, rack-mountable 1U
Ports & PoE
  • Ports: 26 x 40Gbit QSFP+ (breakout compatible) + 6 x 40Gbit QSFP+ (uplink)
Performance & Capacity
  • Bandwidth: 2.56 Tbps
  • Longest prefix match (LPM) entries (IPv4): 16000
  • Host table entries (IPv4): 208000
  • IPv4 routes (Multicast): 32000
  • Virtual interfaces (VLANs): 4096
  • Equal-Cost Multipathing (ECMP) ways: 64
  • Multiple Spanning Tree Protocol instances: 64
  • Rapid Per-VLAN Spanning Tree Plus instances: 507
  • Virtual Routing and Forwarding (VRF) entries: 1000
  • IGMP snooping entries: 32000
  • ACL entries (ingress): 4000
  • ACL entries (egress): 1000
Power
  • Power Device: Internal power supply - hot-plug
  • Power Redundancy: Yes
Physical
  • Width: 43.9 cm
  • Depth: 57.1 cm
  • Height: 4.4 cm
  • Weight: 10.0 kg
Environmental
  • Humidity Range Operating: 5 - 95% (non-condensing)
  • Max Operating Temperature: 40 °C
  • Max Storage Temperature: 70 °C
  • Min Operating Temperature: 0 °C
  • Min Storage Temperature: -40 °C

Request a quote or add to cart — pricing available on enquiry for refurbished stock.

For international customers, please contact us for personalised support and assistance.

Request Quote / Enquire
180-Days Warranty
Secure Checkout
Free Delivery AU
Dispatch in 1–2 Business Days
Add to Wish List Add to Compare
Cisco · Nexus 9300 Series
N9K-C9332PQ 32-Port 40G QSFP+ Switch Refurbished
High-density switching for advanced data center applications
Overview
The Cisco Nexus 9300 N9K-C9332PQ is a high-performance switch designed for top-of-rack and middle-of-row deployment in data centers. It supports enterprise applications and cloud computing environments with its Layer 2 and 3 nonblocking architecture. With a robust internal bandwidth of up to 2.56 terabits per second, it is engineered for low-latency performance and high availability.
Key Features
  • High Density: 32 ports of 40G QSFP+ for superior port density.
  • Flexible Configuration: Supports breakout cables allowing for 128 10G ports.
  • Low Latency: Offers low-latency switching, suitable for high-performance applications.
  • Scalable: Designed to scale for growing data center environments.
  • Energy Efficient: Built with power efficiency in mind, reducing overall power consumption.
  • Operational Simplicity: Unified under the Cisco Nexus Operating System (NX-OS) for simplified management.
  • Advanced Security: Features such as Cisco TrustSec and support for Cisco ACI.
  • High Availability: Redundant power supplies and fans for increased reliability and uptime.
Specifications
General
Device TypeSwitch - 32 ports - L3 - Managed
Enclosure TypeDesktop, rack-mountable 1U
Ports & PoE
Ports26 x 40Gbit QSFP+ (breakout compatible) + 6 x 40Gbit QSFP+ (uplink)
Performance & Capacity
Bandwidth2.56 Tbps
Longest prefix match (LPM) entries (IPv4)16000
Host table entries (IPv4)208000
IPv4 routes (Multicast)32000
Virtual interfaces (VLANs)4096
Equal-Cost Multipathing (ECMP) ways64
Multiple Spanning Tree Protocol instances64
Rapid Per-VLAN Spanning Tree Plus instances507
Virtual Routing and Forwarding (VRF) entries1000
IGMP snooping entries32000
ACL entries (ingress)4000
ACL entries (egress)1000
Power
Power DeviceInternal power supply - hot-plug
Power RedundancyYes
Physical
Width43.9 cm
Depth57.1 cm
Height4.4 cm
Weight10.0 kg
Environmental
Humidity Range Operating5 - 95% (non-condensing)
Max Operating Temperature40 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Compliance
Compliant StandardsCISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, GB 4943, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN22 Class A, EN 300386

Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.

Reviews
Write Your Own Review
You're reviewing:Cisco Nexus 9300 32-Port 40G QSFP+ Managed Switch – Refurbished | N9K-C9332PQ
Your Rating
FAQ

Common questions about the Cisco Nexus 9300 32-Port 40G QSFP+ Managed Switch – Refurbished | N9K-C9332PQ.

The maximum bandwidth of the N9K-C9332PQ is 2.56 Tbps.
The N9K-C9332PQ has 32 ports of 40G QSFP+.
The operating temperature range for the N9K-C9332PQ is 0 °C to 40 °C.
Yes, the N9K-C9332PQ supports redundant power supplies.
The weight of the N9K-C9332PQ is 10.0 kg.
The maximum storage temperature for the N9K-C9332PQ is 70 °C.
