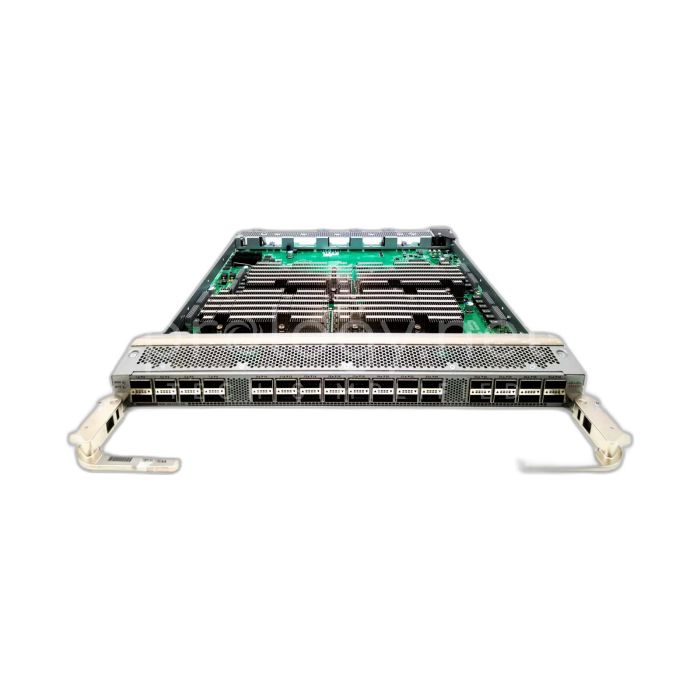

Cisco Nexus 9500 32-Port 100G QSFP Cloud-Scale Line Card – Refurbished | N9K-X9732C-EX
Out of stock
SKU
N9K-X9732C-EX-REFURBISHED
MPN
N9K-X9732C-EX
A$0
The Cisco N9K-X9732C-EX is a refurbished high-performance line card for data centers. It features 32 ports of 100G QSFP, 6.4 Tbps bandwidth, and supports VXLAN.
Out of Stock
General
- Device Type: Expansion module
- Form Factor: Plug-in module
Ports & PoE
- Networking Ports: 32 x 100 Gigabit QSFP28
Performance & Capacity
- Bandwidth: 6.4 Tbps
- Forwarding Performance: Wire-rate forwarding for all packet sizes
- Longest Prefix Match (IPv4): 600,000
- Longest Prefix Match (IPv6): 300,000
- IP Host Entries: 600,000
- MAC Address Entries: 64,000
- Multicast Routes: 32,000
- VLANs Supported: 4096
- VRF Instances: 1000
Power
- Power Consumption: Maximum 350W
Physical
- Dimensions: 1.73 inches (4.4 cm) x 16.9 inches (42.9 cm) x 22.2 inches (56.4 cm)
- Weight: Approximately 7.7 lbs (3.5 kg)
Environmental
- MTBF: 405,240 hours
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery AU
Dispatch in 1–2 Business Days
Cisco · Nexus 9500 Series
N9K-X9732C-EX 32-Port 100G QSFP Line Card Refurbished
High-performance line card for demanding networks.
Overview
The Cisco N9K-X9732C-EX is a high-performance line card designed for the Nexus 9500 platform, ideal for modern data centers. Featuring 32 ports of 100G QSFP, this cloud-scale line card enhances operational efficiency with exceptional data throughput and scalability. It supports advanced features such as high-density, high-throughput Layer 2 and 3 connectivity, making it perfect for demanding networks that require reliable and rapid data transfer capabilities.
Key Features
- High-Density Connectivity: 32 ports of 100G QSFP28 for enhanced performance.
- Bandwidth: Supports up to 6.4 Tbps switching capacity.
- Advanced Features: Supports VXLAN for overlay networking.
- Compatibility: Backward compatible with 40G and 10G Ethernet.
- Latency: Sub-microsecond latency for efficient data handling.
- Robust Capacity: 600,000 IPv4 LPM entries and 300,000 IPv6 LPM entries.
- Energy Efficiency: Optimized power consumption with a maximum of 350W.
Specifications
| General | |
|---|---|
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Ports & PoE | |
| Networking Ports | 32 x 100 Gigabit QSFP28 |
| Performance & Capacity | |
| Bandwidth | 6.4 Tbps |
| Forwarding Performance | Wire-rate forwarding for all packet sizes |
| Longest Prefix Match (IPv4) | 600,000 |
| Longest Prefix Match (IPv6) | 300,000 |
| IP Host Entries | 600,000 |
| MAC Address Entries | 64,000 |
| Multicast Routes | 32,000 |
| VLANs Supported | 4096 |
| VRF Instances | 1000 |
| Power | |
| Power Consumption | Maximum 350W |
| Physical | |
| Dimensions | 1.73 inches (4.4 cm) x 16.9 inches (42.9 cm) x 22.2 inches (56.4 cm) |
| Weight | Approximately 7.7 lbs (3.5 kg) |
| Environmental | |
| MTBF | 405,240 hours |
| Compliance | |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN55024, AS/NZS 60950-1, RoHS |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco Nexus 9500 32-Port 100G QSFP Cloud-Scale Line Card – Refurbished | N9K-X9732C-EX.
The maximum bandwidth of the N9K-X9732C-EX is 6.4 Tbps.
The N9K-X9732C-EX supports 32 ports of 100G QSFP.
Yes, it is backward compatible with 40G and 10G Ethernet.
The maximum power consumption is 350W.
The N9K-X9732C-EX weighs approximately 7.7 lbs (3.5 kg).
It complies with CISPR 22 Class A, RoHS, and other standards.
