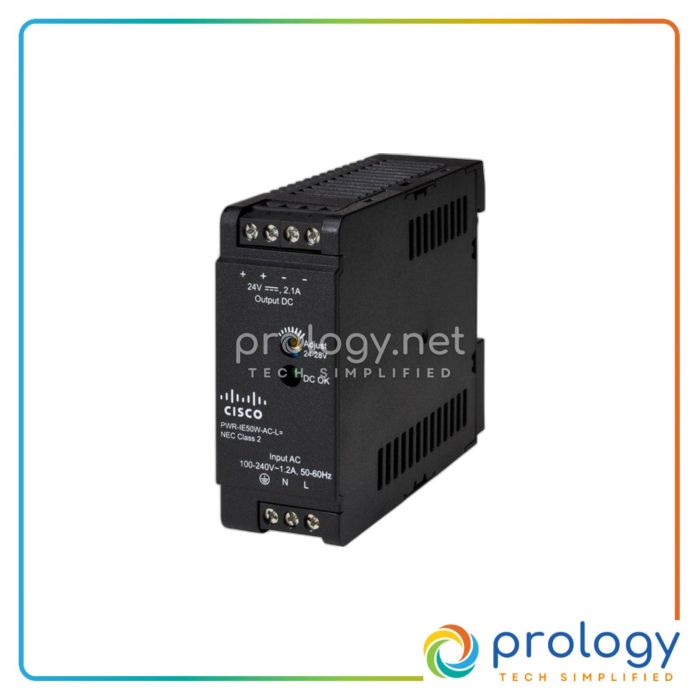

*Brand New* Cisco PWR-IE50W-AC Power Supply 341-0497-01 1YWty
In Stock
1 units available
SKU
PWR-IE50W-AC-NEW
MPN
PWR-IE50W-AC
A$714.00
A$649.09
The Cisco PWR-IE50W-AC is a rugged, industrial-grade DIN-rail power supply designed for demanding environments. It delivers 50W of power with a 24VDC output at 2.1A, supporting both AC (90-264V) and high-voltage DC (106-300V) inputs. This hardwired unit features Class 1, Div 2/Zone 2 hazardous location approval, IP20 rating, and an operating temperature range of -40°C to +75°C. It is ideal for powering Cisco Industrial Ethernet switches and routers in automation, transportation, and utility applications.
In Stock
Brand
Cisco
Model
PWR-IE50W-AC
Maximum Output Power
50W
Output Voltage
24VDC
Input Voltage Range
AC 90-264V / DC 106-300V
Operating Temperature
-40°C to +75°C
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery AU
Dispatch in 1–2 Business Days
PWR-IE50W-AC
*Brand New* Cisco PWR-IE50W-AC Power Supply 341-0497-01 1YWty NEW
The Cisco PWR-IE50W-AC is a rugged, industrial-grade DIN-rail power supply designed for demanding environments. It delivers 50W of power with a 24VDC output at 2.1A, supporting both AC (90-264V) and high-voltage DC (106-300V) inputs. This hardwired unit features Class 1, Div 2/Zone 2 hazardous location approval, IP20 rating, and an operating temperature range of -40°C to +75°C. It is ideal for powering Cisco Industrial Ethernet switches and routers in automation, transportation, and utility applications.
The Cisco PWR-IE50W-AC is a 50W industrial DIN-rail power supply providing reliable 24VDC output for rugged network deployments. It supports flexible AC and high-voltage DC input options, making it suitable for harsh industrial environments.
Key Features
- 50W Maximum Output Power
- 24VDC Output at 2.1A
- AC 90-264V or DC 106-300V Input
- Class 1, Div 2/Zone 2 Hazardous Location Approval
- DIN-Rail Mountable with Hardwired Connection
- Operating Temperature: -40°C to +75°C
- IP20 Protection Rating
- 20ms Holdup Time at 100% Load
Documents
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
| Electrical | |
|---|---|
| Input Voltage (AC) | 90-264V AC |
| Input Voltage (DC) | 106-300V DC |
| Output Voltage | 24VDC |
| Output Current | 2.1A |
| Max Output Power | 50W |
| Typical Efficiency | 80% |
| Holdup Time | 20ms at 100% load |
| Physical | |
| Dimensions (W x H x D) | 51 mm x 118 mm x 148 mm (2 in x 4.64 in x 5.82 in) |
| Unit Weight | 1.41 lb (0.64 kg) |
| IP Rating | IP20 |
| Mounting | DIN-Rail |
| Environmental | |
| Operating Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | <95% RH (non-condensing) |
| Hazardous Location | Class 1, Div 2/Zone 2 |
