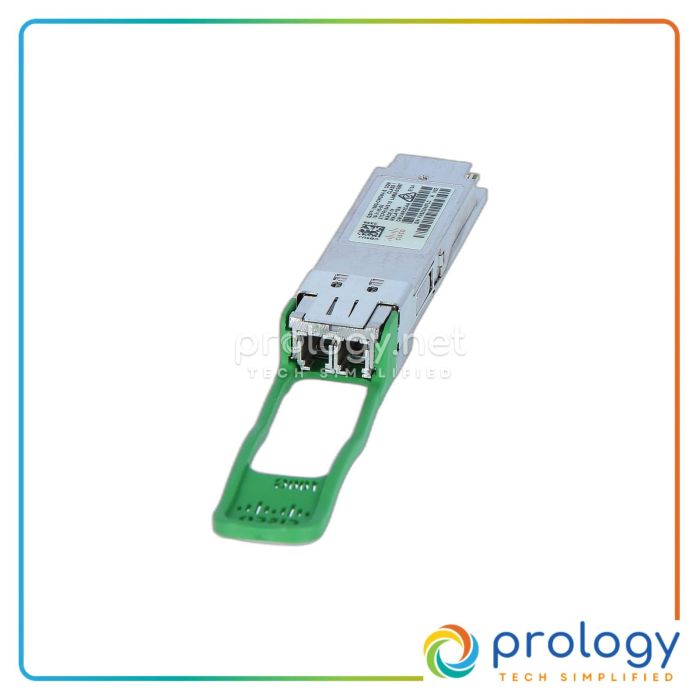

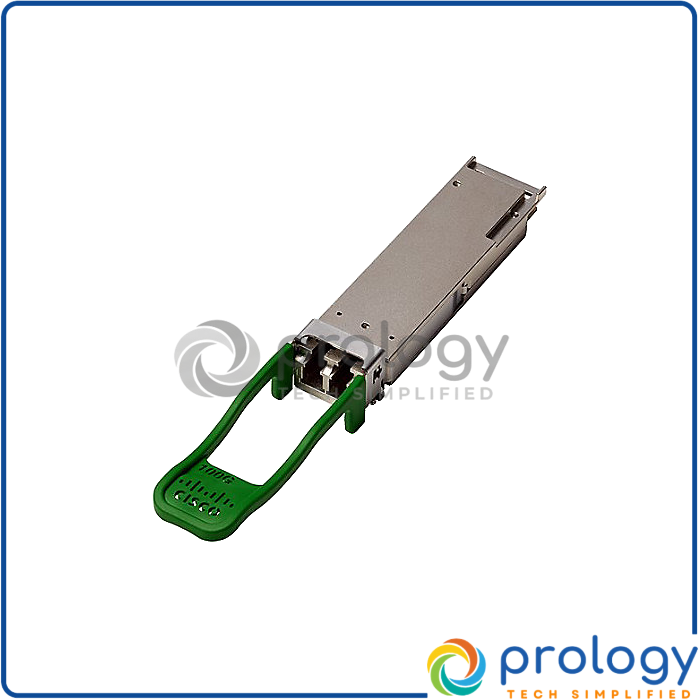

Cisco QSFP-100G-CWDM4-S 100GBASE CWDM4 QSFP Transceiver – Refurbished | QSFP-100G-CWDM4-S
In Stock — Ready to Ship
1 units available
SKU
QSFP-100G-CWDM4-S-REFURBISHED
MPN
QSFP-100G-CWDM4-S
A$195
The Cisco QSFP-100G-CWDM4-S is a refurbished 100GBASE CWDM4 QSFP transceiver ideal for data centers. It features a 2 km reach, LC connector, and operates at four wavelengths.
In Stock — Ready To Ship
Device Type
QSFP+ transceiver module
Form Factor
Plug-in module
Color
Green
Wavelengths
1271 nm, 1291 nm, 1311 nm, 1331 nm
Maximum Link Length
2 km
Power Consumption
3.5 Watt
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery AU
Dispatch in 1–2 Business Days
Cisco · QSFP+ Series
QSFP-100G-CWDM4-S 100GBASE CWDM4 QSFP Transceiver Refurbished
High-performance transceiver for data centers and telecom networks.
Overview
The Cisco QSFP-100G-CWDM4-S is a high-speed 100GBASE-CWDM4 QSFP28 transceiver designed for efficient data transmission over single-mode fiber. It operates at four wavelengths: 1271 nm, 1291 nm, 1311 nm, and 1331 nm, allowing for effective multiplexing. This module supports a maximum reach of 2 kilometers and features a duplex LC connector for reliable connectivity. It is particularly suitable for large-scale data centers and telecommunications networks, providing enhanced bandwidth while maintaining low power consumption.
Key Features
- Wavelengths: Supports 1271 nm, 1291 nm, 1311 nm, and 1331 nm for optimal performance.
- Maximum Reach: Capable of reaching up to 2 kilometers over single-mode fiber.
- Power Consumption: Low operational power consumption of 3.5 Watts.
- Connector Type: Features a duplex LC connector for easy installation.
- Hot-Swappable: Allows for easy replacement without disrupting the network.
- Compliance: Meets standards including Laser Class 1, ELV, RoHS, GR-326-CORE, and GR-20-CORE.
- Digital Monitoring: Supports advanced digital optical monitoring for performance tracking.
Specifications
| General | |
|---|---|
| Device Type | QSFP+ transceiver module |
| Form Factor | Plug-in module |
| Color | Green |
| Ports & PoE | |
| Interfaces | 1 x Ethernet 100GBase-CWDM4 - LC single-mode female x 2 |
| Performance | |
| Data Transfer Rate | 100 Gbps |
| Maximum Link Length | 2 km |
| Power | |
| Power Consumption | 3.5 Watt |
| Physical | |
| Width | 1.84 cm |
| Depth | 7.24 cm |
| Height | 1.35 cm |
| Weight | 100 g |
| Environmental | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Compliance | |
| Compliant Standards | Laser Class 1, ELV, RoHS, GR-326-CORE, GR-20-CORE |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco QSFP-100G-CWDM4-S 100GBASE CWDM4 QSFP Transceiver – Refurbished | QSFP-100G-CWDM4-S.
The Cisco QSFP-100G-CWDM4-S can cover a maximum distance of up to 2 kilometers.
This transceiver operates on single-mode fiber (SMF).
It supports four wavelengths: 1271 nm, 1291 nm, 1311 nm, and 1331 nm.
Yes, the Cisco QSFP-100G-CWDM4-S is hot-swappable for easy installation and replacement.
The operational power consumption is 3.5 Watts.
It features a duplex LC connector for connectivity.
No documents available for this product yet.
