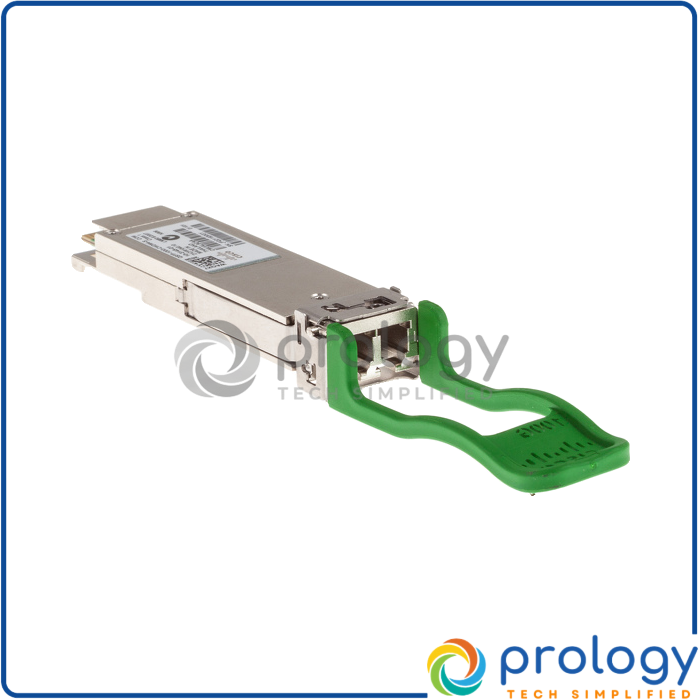

Cisco QSFP-100G-SM-SR 100GBASE CWDM4 Lite QSFP Transceiver – New | QSFP-100G-SM-SR
In Stock — Ready to Ship
4 units available
SKU
QSFP-100G-SM-SR-NEW
MPN
QSFP-100G-SM-SR
A$355
The Cisco QSFP-100G-SM-SR is a new high-density transceiver for data centres and enterprises. It supports 100 Gbps data rates, operates over single-mode fiber, and reaches up to 2 km.
In Stock — Ready To Ship
Device Type
QSFP+ transceiver module
Form Factor
QSFP28
Color
Green
Interfaces
1 x Ethernet 100GBase-CWDM4 Lite - LC single-mode female x 2
Data Link Protocol
100 Gigabit Ethernet
Data Transfer Rate
100 Gbps
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery AU
Dispatch in 1–2 Business Days
Cisco · QSFP Series
QSFP-100G-SM-SR 100GBASE CWDM4 Lite Transceiver New
High-speed connectivity for demanding networks.
Overview
The Cisco QSFP-100G-SM-SR is a state-of-the-art 100GBASE CWDM4 Lite transceiver designed for high-bandwidth connectivity over single-mode fiber (SMF). This module is ideal for data centers, high-performance computing networks, and enterprise core applications. It operates efficiently within a temperature range of 10°C to 60°C and supports a maximum transmission distance of 2 km, ensuring reliable performance in various environments.
Key Features
- High-Speed Data Transfer: Supports 100 Gbps data rates for rapid connectivity.
- Long-Distance Capability: Operates over single-mode fiber for distances up to 2 km.
- Wide Operating Temperature: Functions effectively between 10°C and 60°C.
- Low Power Consumption: Consumes less than 3.5 Watts during operation.
- Compact Form Factor: QSFP28 design for high-density networking solutions.
- Hot-Swappable: Allows for easy installation and replacement without network interruption.
- Digital Diagnostics Monitoring: Provides real-time performance monitoring capabilities.
Specifications
| General | |
|---|---|
| Device Type | QSFP+ transceiver module |
| Form Factor | QSFP28 |
| Color | Green |
| Ports & PoE | |
| Interfaces | 1 x Ethernet 100GBase-CWDM4 Lite - LC single-mode female x 2 |
| Performance | |
| Data Link Protocol | 100 Gigabit Ethernet |
| Data Transfer Rate | 100 Gbps |
| Optical Wavelength | 1271 nm / 1291 nm / 1311 nm / 1331 nm |
| Max Transfer Distance | 2 km (1.2 miles) |
| Power | |
| Power Consumption | < 3.5 Watts |
| Physical | |
| Width | 1.84 cm |
| Depth | 7.24 cm |
| Height | 1.27 cm |
| Weight | 3.53 oz |
| Environmental | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 60 °C |
| Compliance | |
| Compliant Standards | IEEE 802.3ba, ITU-T G.652, IEEE 802.3bm, Laser Class 1, ELV, RoHS, GR-326-CORE, GR-20-CORE |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco QSFP-100G-SM-SR 100GBASE CWDM4 Lite QSFP Transceiver – New | QSFP-100G-SM-SR.
The QSFP-100G-SM-SR supports a maximum transmission distance of up to 2 km over single-mode fiber.
The QSFP-100G-SM-SR consumes less than 3.5 Watts during operation.
This transceiver operates efficiently between 10°C and 60°C.
Yes, the QSFP-100G-SM-SR is hot-swappable, allowing for easy installation and replacement.
The QSFP-100G-SM-SR is designed for use with single-mode fiber (SMF).
The QSFP-100G-SM-SR supports optical wavelengths of 1271 nm, 1291 nm, 1311 nm, and 1331 nm.
