Cisco QSFP-40G-CSR4 4-Port QSFP+ 40GBASE-SR Module – Refurbished | QSFP-40G-CSR4
In Stock — Ready to Ship
1 units available
SKU
QSFP-40G-CSR4-REFURBISHED
MPN
QSFP-40G-CSR4
A$254

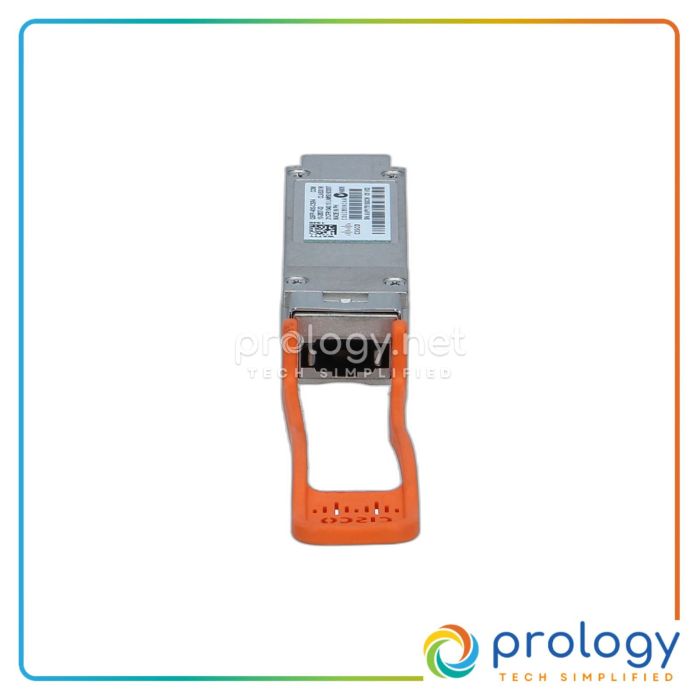

The Cisco QSFP-40G-CSR4 is a refurbished 40GBASE-SR transceiver module ideal for data centers. It supports link lengths of up to 400m, 40 Gbps data rate, and operates over multimode fiber.
In Stock — Ready To Ship
General
- Device Type: QSFP+ transceiver module
- Form Factor: Plug-in module
- Color: Orange
Ports & PoE
- Interfaces: 1 x 40Gb Ethernet - MPO multi-mode
Performance
- Maximum Data Rate: 40 Gbps
- Wavelength: 850 nm
- Modal Bandwidth: 500 (OM2), 2000 (OM3), 4700 (OM4) MHz-km
- Maximum Distance: 82m (OM2), 300m (OM3), 400m (OM4)
- Maximum Channel Insertion Loss: 2.6 dB (300m OM3), 2.9 dB (400m OM4)
Power
- Power Consumption: 1.5 W
Physical
- Width: 18.4 mm
- Depth: 72.4 mm
- Height: 13.5 mm
- Weight: 3.53 oz
Environmental
- Min Operating Temperature: 0 °C
- Max Operating Temperature: 70 °C
- Min Storage Temperature: -40 °C
- Max Storage Temperature: 85 °C
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery AU
Dispatch in 1–2 Business Days
Cisco · QSFP+ Series
QSFP-40G-CSR4 4-Port 40GBASE-SR Module Refurbished
High-performance transceiver for efficient data transfer.
Overview
The Cisco QSFP-40G-CSR4 is a high-performance 40GBASE-SR transceiver designed for multimode fiber applications. It supports link lengths of up to 400m on OM4 fiber and 300m on OM3 fiber. This module is compliant with IEEE 802.3ae standards and is ideal for high-density network environments such as data centers and enterprise networks.
Key Features
- High Data Rate: Supports data rates of up to 40 Gbps.
- Extended Reach: Link lengths of up to 400m on OM4 and 300m on OM3 multimode fiber.
- Digital Optical Monitoring: Integrated DOM for real-time performance monitoring.
- Compact Design: QSFP+ form factor for high-density applications.
- Power Efficient: Consumes only 1.5 W of power.
- Wide Compatibility: Interoperable with other IEEE-compliant 40GBASE interfaces.
Specifications
| General | |
|---|---|
| Device Type | QSFP+ transceiver module |
| Form Factor | Plug-in module |
| Color | Orange |
| Ports & PoE | |
| Interfaces | 1 x 40Gb Ethernet - MPO multi-mode |
| Performance | |
| Maximum Data Rate | 40 Gbps |
| Wavelength | 850 nm |
| Modal Bandwidth | 500 (OM2), 2000 (OM3), 4700 (OM4) MHz-km |
| Maximum Distance | 82m (OM2), 300m (OM3), 400m (OM4) |
| Maximum Channel Insertion Loss | 2.6 dB (300m OM3), 2.9 dB (400m OM4) |
| Power | |
| Power Consumption | 1.5 W |
| Physical | |
| Width | 18.4 mm |
| Depth | 72.4 mm |
| Height | 13.5 mm |
| Weight | 3.53 oz |
| Environmental | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Compliance | |
| Compliant Standards | IEEE 802.3ae, RoHS, MSA |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco QSFP-40G-CSR4 4-Port QSFP+ 40GBASE-SR Module – Refurbished | QSFP-40G-CSR4.
The QSFP-40G-CSR4 supports up to 400m on OM4 multimode fiber and 300m on OM3 multimode fiber.
Yes, it is interoperable with other IEEE-compliant 40GBASE interfaces.
It features Digital Optical Monitoring (DOM) for real-time performance tracking.
The module consumes 1.5 W of power during operation.
The QSFP-40G-CSR4 operates at a wavelength of 850 nm.
The QSFP-40G-CSR4 is a QSFP+ transceiver module.
