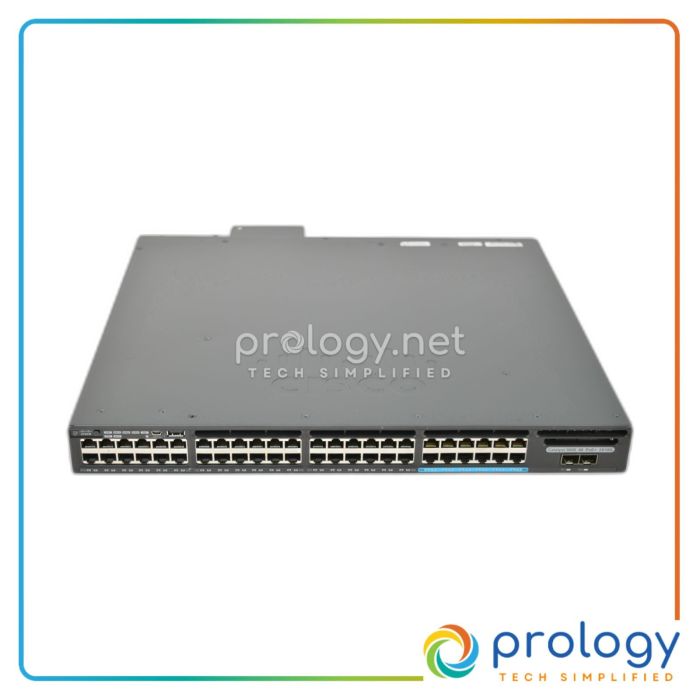

Cisco Catalyst 3650 48-Port Gigabit IP Base Switch – Refurbished | WS-C3650-12X48FD-S
In Stock — Ready to Ship
1 units available
SKU
WS-C3650-12X48FD-S-REFURBISHED
MPN
WS-C3650-12X48FD-S
A$3,255
The Cisco WS-C3650-12X48FD-S is a refurbished switch ideal for medium to large enterprises. It features 48 ports, dual 10G uplinks, and a robust 1100W power supply.
In Stock — Ready To Ship
Device Type
Switch - 48 ports - L3 - managed - stackable
Enclosure Type
Desktop, rack-mountable 1U
Ports
36 x 10/100/1000 (PoE), 12 x 100/1000/2.5G/5G/10G (PoE), 2 x 10GBase-X SFP+ uplink
PoE Budget
660 W
Switching Capacity
472 Gbps
Forwarding Rate
130.94 Mpps
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery AU
Dispatch in 1–2 Business Days
Cisco · Catalyst 3650 Series
WS-C3650-12X48FD-S 48-Port Gigabit Switch Refurbished
High-performance networking solution for enterprises.
Overview
The Cisco WS-C3650-12X48FD-S is a versatile and reliable switch designed for high-speed connectivity and scalability in enterprise networks. Built on the advanced Cisco StackWise technology, it supports both wired and wireless convergence, enabling seamless policy enforcement and application visibility. This switch is suitable for medium to large-scale deployments, offering a robust infrastructure to support future growth.
Key Features
- Port Configuration: 48 Ethernet ports, including 36 x 10/100/1000 and 12 x 100/1000/2.5G/5G/10G.
- Uplink Ports: Dual 10G uplink ports for enhanced connectivity.
- Power Supply: Equipped with a powerful 1100W AC power supply.
- Form Factor: 1U rack-mountable design.
- IP Base Feature Set: Advanced networking functionality for enhanced performance.
- PoE Budget: Supports a total PoE budget of 660W.
- Jumbo Frame Support: Up to 9198 bytes for efficient data transmission.
- Stacking Capability: Optional stacking for increased flexibility.
Specifications
| General | |
|---|---|
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Ports & PoE | |
| Ports | 36 x 10/100/1000 (PoE), 12 x 100/1000/2.5G/5G/10G (PoE), 2 x 10GBase-X SFP+ uplink |
| PoE Budget | 660 W |
| Performance & Capacity | |
| Switching Capacity | Up to 472 Gbps |
| Forwarding Rate | Up to 130.94 Mpps |
| MAC Address Table Size | 32000 entries |
| VLAN Capacity | 4094 |
| Memory | |
| RAM | 4 GB |
| Flash Memory | 4 GB |
| Layer & Routing | |
| Routing Protocols | BGP-4, IS-IS, RIP-1, RIP-2, PIM-SM, static IP routing, PIM-DM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng |
| Stacking | |
| Stacking Bandwidth | 480 Gbps |
| Interfaces & Connectivity | |
| Management Interfaces | 1 x USB Type A, 1 x serial (console) RJ-45 management, 1 x management (Gigabit LAN) RJ-45 management, 1 x management (mini-USB) Type B management |
| Power | |
| Power Supply | 1100W AC |
| Physical | |
| Width | 17.5 in |
| Depth | 19.1 in |
| Height | 1.7 in |
| Weight | 16.71 lbs |
| Environmental | |
| Operating Temperature | 23 °F to 113 °F |
| Storage Temperature | -40 °F to 158 °F |
| Humidity Range | 5 - 96% (non-condensing) |
| Compliance | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco Catalyst 3650 48-Port Gigabit IP Base Switch – Refurbished | WS-C3650-12X48FD-S.
The WS-C3650-12X48FD-S has a PoE budget of 660W.
It features 48 ports, including 36 Gigabit Ethernet ports and 12 multi-speed ports.
The switching capacity is up to 472 Gbps.
Yes, it supports optional stacking with a bandwidth of 480 Gbps.
The dimensions are 17.5 in width, 19.1 in depth, and 1.7 in height.
It supports BGP-4, IS-IS, RIP-1, RIP-2, and several others.
