Cisco 12000-SIP-601 Multirate 10G IP Services Engine Modular – Refurbished | 12000-SIP-601
In Stock — Ready to Ship
1 units available
SKU
12000-SIP-601-REFURBISHED
MPN
12000-SIP-601
$395

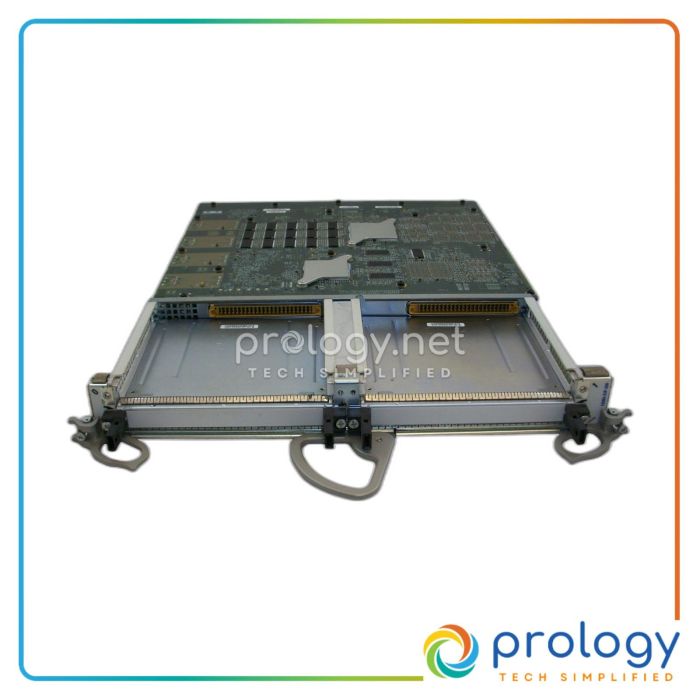

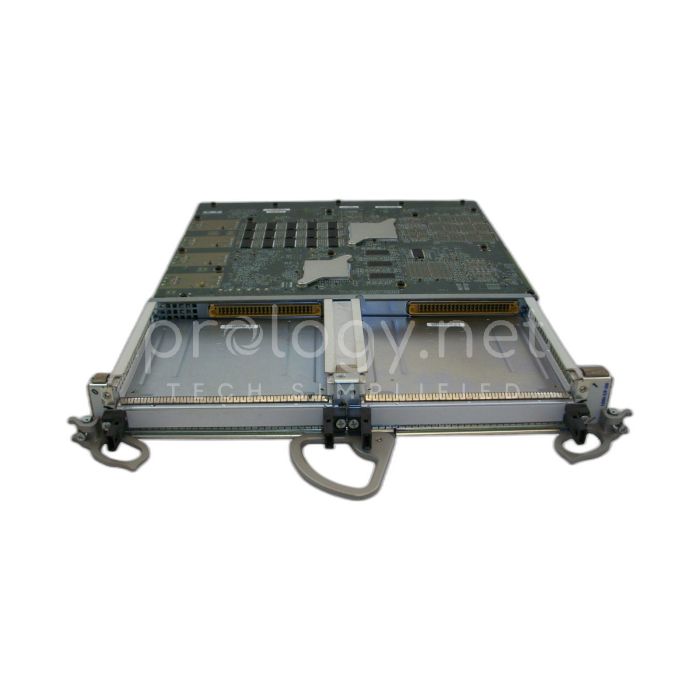

The Cisco 12000-SIP-601 is a refurbished modular IP services engine for service providers. It features high-density aggregation, 10 Gbps per SPA slot, and supports multiple interface types.
In Stock — Ready To Ship
General
- Device Type: Control processor
- RAM: 2.25 GB
Ports & PoE
- Compatible Slots: 1 x Expansion Slot
- Expansion Slots: 4 (total) / 4 (free)
Performance & Capacity
- Packet Performance: Up to 10 Gbps per SPA slot
Layer & Routing
- Routing Protocols: OSPF, RIP, BGP-4, IS-IS, EIGRP, IGMPv2, HSRP, IGMP, VRRP, PIM-SM, PIM-DM, Multiprotocol BGP, MSDP
Power
- Power Consumption: Typical 300W
Physical
- Width: 40.6 cm
- Depth: 52.4 cm
- Height: 4.6 cm
- Weight: 5.5 kg
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery US
Dispatch in 1–2 Business Days
Cisco · 12000 Series
12000-SIP-601 Multirate 10G IP Services Engine Refurbished
Optimized for service provider networks.
Overview
The Cisco 12000-SIP-601 is a high-performance modular IP services engine designed for Cisco XR 12000 and 12000 Series routers. This device enhances performance, flexibility, and scalability, allowing for high-density aggregation of various edge services on a single interface processor. It supports a broad range of SPA interface types, optimizing bandwidth usage and enabling multiple combinations of interfaces.
Key Features
- High-Performance Packet Processing: Supports up to 10 Gbps per SPA slot.
- Modularity: Compatible with various SPAs for flexible configurations.
- Advanced QoS Features: Enables service differentiation for critical applications.
- Integrated with Cisco IOS XR: Enhances network scalability and reliability.
- Environmental Resilience: Operates in temperatures from 5 °C to 40 °C.
- Compact Design: Dimensions of 40.6 cm x 52.4 cm x 4.6 cm and weighs 5.5 kg.
- Multiple Routing Protocols: Supports OSPF, BGP-4, EIGRP, and more.
Specifications
| General | |
|---|---|
| Device Type | Control processor |
| RAM | 2.25 GB |
| Ports & PoE | |
| Compatible Slots | 1 x Expansion Slot |
| Expansion Slots | 4 (total) / 4 (free) |
| Performance & Capacity | |
| Packet Performance | Up to 10 Gbps per SPA slot |
| Layer & Routing | |
| Routing Protocols | OSPF, RIP, BGP-4, IS-IS, EIGRP, IGMPv2, HSRP, IGMP, VRRP, PIM-SM, PIM-DM, Multiprotocol BGP, MSDP |
| Power | |
| Power Consumption | Typical 300W |
| Physical | |
| Width | 40.6 cm |
| Depth | 52.4 cm |
| Height | 4.6 cm |
| Weight | 5.5 kg |
| Environmental | |
| Operating Humidity | 5 - 85% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Max Storage Temperature | -40 °C to 70 °C |
| Min Storage Temperature | -40 °C |
| Compliance | |
| Compliant Standards | FCC Class A, CISPR 22 Class A, EN55022, VCCI Class A ITE, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, EN 61000-4-2, EN 61000-4-3, FCC Part 15, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, IEEE 802.1Q |
Documents
- Cisco XR 12000 and 12000 Series SPA Interface Processor-600
- Cisco XR 12000 and 12000 Series Performance Route Processor-2
- Cisco 12000 Series Routers with Cooling, Fabric, and Power Enhancements
- Cisco 12000 Series TDM Line Cards
- Cisco 12000 Series Channelized Line Card
- Cisco 12000 Series 8-Port Fast Ethernet Line Card
- Cisco 12000 Series ATM Line Cards
- Cisco XR 12000 and 12000 Series SPA Interface Processors
- Cisco XR 12000 and 12000 Series Gigabit Ethernet Line Cards
- Cisco 12000 Series Packet over SONET/SDH (POS) Line Cards
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco 12000-SIP-601 Multirate 10G IP Services Engine Modular – Refurbished | 12000-SIP-601.
The Cisco 12000-SIP-601 is designed for service provider networks requiring high-density aggregation.
The device supports a total of 4 SPA slots, with 1 expansion slot available.
The maximum packet performance is up to 10 Gbps per SPA slot.
It supports OSPF, BGP-4, EIGRP, and several other routing protocols.
The operating temperature ranges from 5 °C to 40 °C.
Yes, it complies with several standards including FCC Class A and EN55022.
