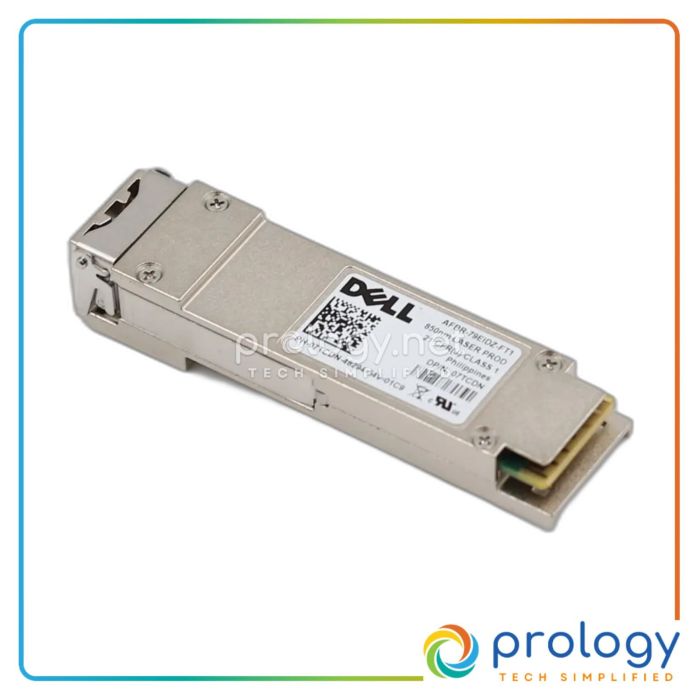

AFBR-79EIDZ-FT1 – QSFP+ 40GBase-SR4 Optical Transceiver – Refurbished | AFBR-79EIDZ-FT1
In Stock — Ready to Ship
3 units available
SKU
AFBR-79EIDZ-FT1-REFURBISHED
MPN
AFBR-79EIDZ-FT1
$45
The AFBR-79EIDZ-FT1 is a refurbished 40 Gbps optical transceiver for data centers. It features 850 nm wavelength, 150 m range over multimode fiber, and MPO-12 connectivity.
In Stock — Ready To Ship
Data Rate
40 Gbps
Wavelength
850 nm
Maximum Distance
Up to ~150 m over MMF
Connector Type
MPO-12
Form Factor
QSFP+
Operating Voltage
3.3 V
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery US
Dispatch in 1–2 Business Days
Brand · Product Line
AFBR-79EIDZ-FT1 40GBase-SR4 Optical Transceiver Refurbished
High-performance optical transceiver for data centers.
Overview
The AFBR-79EIDZ-FT1 is a high-speed optical transceiver designed for 40 Gbps data center and enterprise networking applications. Operating at an 850 nm wavelength, it supports multimode fiber (MMF) and utilizes an MPO-12 interface for reliable short-reach connectivity. This module is compliant with the QSFP+ MSA standard and features Digital Optical Monitoring (DOM) for real-time monitoring of optical parameters.
Key Features
- Data Rate: 40 Gbps for high-speed data transmission.
- Wavelength: Operates at 850 nm for optimal performance.
- Maximum Distance: Supports transmission up to 150 m over multimode fiber.
- Connector Type: MPO-12 for efficient multi-lane connectivity.
- Form Factor: Compact QSFP+ design for high-density deployment.
- DOM Support: Integrated Digital Optical Monitoring for enhanced diagnostics.
- Operating Temperature: Functional in a range of 0 °C to 70 °C.
- Dimensions: Measures 18.4 × 13.5 × 72.4 mm for space-efficient installation.
Specifications
| General | |
|---|---|
| Data Rate | 40 Gbps |
| Standard | 40GBase-SR4 |
| Wavelength | 850 nm |
| Maximum Distance | Up to ~150 m over MMF |
| Ports & PoE | |
| Connector | MPO-12 (MTP/MPO compatible) |
| Performance | |
| Form Factor | QSFP+ |
| Power | |
| Operating Voltage | 3.3 V |
| Physical | |
| Width | 18.4 mm |
| Depth | 13.5 mm |
| Height | 72.4 mm |
| Environmental | |
| Operating Temperature | 0 °C to 70 °C |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the AFBR-79EIDZ-FT1 – QSFP+ 40GBase-SR4 Optical Transceiver – Refurbished | AFBR-79EIDZ-FT1.
The AFBR-79EIDZ-FT1 supports transmission distances up to approximately 150 meters over multimode fiber.
It is designed for use with multimode fiber (MMF).
The AFBR-79EIDZ-FT1 operates at an 850 nm wavelength.
Yes, it supports Digital Optical Monitoring (DOM) for real-time monitoring of optical parameters.
The form factor of the AFBR-79EIDZ-FT1 is QSFP+.
The operating temperature range is from 0 °C to 70 °C.
