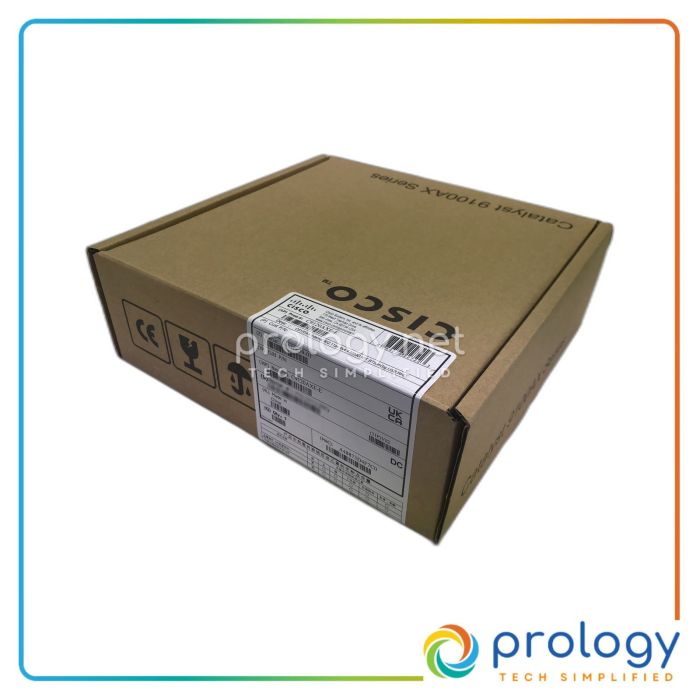

main product photo

Skip to the beginning of the images gallery

Cisco C9120AXE-E Dual Band 802.11ax 5.38 Gbit/s External Antennas AP Bluetooth 5

In Stock

1 units available

SKU

C9120AXE-E-REFURBISHED

MPN

C9120AXE-E

Be the first to review this product

USD $691.00

Refurbished Cisco Catalyst 9120AXE Wi-Fi 6 (802.11ax) access point with 4x4:4 MU-MIMO and four spatial streams, external antennas (E regulatory domain), a 2.5 Gbps Multigigabit uplink and up to 5.38 Gbps aggregate 802.11ax data rate for demanding enterprise wireless.

In Stock

Brand Cisco

Series Cisco Catalyst 9120AX

Wireless Standard Wi-Fi 6 (802.11ax)

Antenna External (E regulatory domain)

MIMO 4x4:4 downlink MU-MIMO (four spatial streams)

Max Data Rate (802.11ax) 5.38 Gbps

Request a quote or add to cart — pricing available on enquiry for refurbished stock.

For international customers, please contact us for personalised support and assistance.

Request Quote / Enquire

180-Days Warranty

Secure Checkout

Free Delivery US

Dispatch in 1–2 Business Days

Add to Wish List Add to Compare

C9120AXE-E

Cisco C9120AXE-E Dual Band 802.11ax 5.38 Gbit/s External Antennas AP Bluetooth 5 REFURBISHED

Refurbished Cisco Catalyst 9120AXE Wi-Fi 6 (802.11ax) access point with 4x4:4 MU-MIMO and four spatial streams, external antennas (E regulatory domain), a 2.5 Gbps Multigigabit uplink and up to 5.38 Gbps aggregate 802.11ax data rate for demanding enterprise wireless.

The Cisco Catalyst 9120AXE is an enterprise-grade Wi-Fi 6 (802.11ax) access point designed for high-density environments and equipped with external antenna connectors (E regulatory domain). It provides 4x4 downlink MU-MIMO with four spatial streams, aggregate data rates up to 5.38 Gbps on 802.11ax, and a 2.5 Gbps Multigigabit uplink for high-throughput deployments. With a flexible radio, Cisco RF ASIC and support for modern PoE standards, it is built for reliable, high-performance enterprise wireless.

Key Features

Wireless Standard: Wi-Fi 6 (802.11ax), backward compatible with 802.11a/g/n/ac
MIMO: 4x4:4 downlink MU-MIMO (four spatial streams)
Antennas: External (E regulatory domain), up to 6 dBi gain
Peak Data Rate: Up to 5.38 Gbps (802.11ax)
Uplink: 100/1000/2500 Mbps Multigigabit (IEEE 802.3bz)
Power: 802.3at PoE+, 802.3bt and 802.3af
Memory: 2048 MB DRAM, 1024 MB flash

Specifications

General
Brand	Cisco
Series	Cisco Catalyst 9120AX
Wireless Standard	Wi-Fi 6 (802.11ax)
Antenna	External (E regulatory domain)
Networking
MIMO	4x4:4 downlink MU-MIMO (four spatial streams)
Max Data Rate (802.11ax)	5.38 Gbps
Max Data Rate (802.11ac)	3.47 Gbps
Max Transmit Power (5 GHz)	26 dBm
Ports
Uplink Port	1x 100/1000/2500 Mbps Multigigabit Ethernet (IEEE 802.3bz)
External Antenna Gain	Up to 6 dBi (2.4 GHz and 5 GHz)
Physical Power
PoE / Power	802.3at PoE+, 802.3bt, 802.3af
System Memory	2048 MB DRAM
Flash	1024 MB
Dimensions (WxLxH)	21.6 x 21.6 x 5.1 cm (8.5 x 8.05 x 2.0 in)
Operating Temperature	-20 to 50 degC (-4 to 122 degF)

Documents

Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.

Write Your Own Review

You're reviewing:Cisco C9120AXE-E Dual Band 802.11ax 5.38 Gbit/s External Antennas AP Bluetooth 5

Your Rating

Price

1 star 2 stars 3 stars 4 stars 5 stars

Nickname

Summary

Review

Common questions about the Cisco C9120AXE-E Dual Band 802.11ax 5.38 Gbit/s External Antennas AP Bluetooth 5.

What Wi-Fi standard does the Cisco Catalyst 9120AXE support?

It supports Wi-Fi 6 (802.11ax) and is backward compatible with 802.11a/g/n/ac.

How many spatial streams does the C9120AXE-E have?

It supports 4x4 downlink MU-MIMO with four spatial streams.

What is the maximum data rate of the Catalyst 9120AXE?

It delivers aggregate rates up to 5.38 Gbps on 802.11ax and up to 3.47 Gbps on 802.11ac.

What uplink port does the C9120AXE-E use?

It uses a single 100/1000/2500 Mbps Multigigabit Ethernet (IEEE 802.3bz) uplink port.

How is the Catalyst 9120AXE powered?

It can be powered via 802.3at PoE+, 802.3bt or 802.3af Power over Ethernet.
