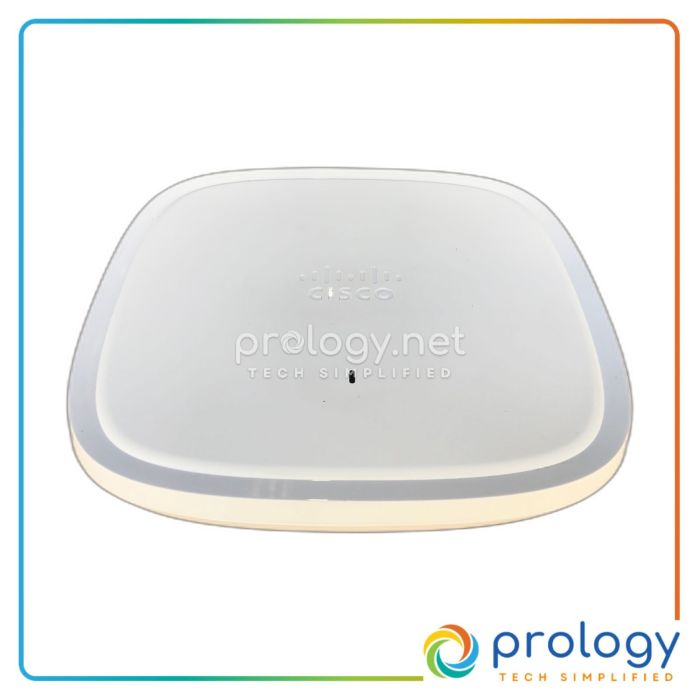

Cisco Catalyst 9130AX 4-Port Wi-Fi 6 Access Point – New | C9130AXI-A
In Stock — Ready to Ship
2 units available
SKU
C9130AXI-A-NEW
MPN
C9130AXI-A
$1,216
The Cisco Catalyst 9130AXI-A is a new Wi-Fi 6 access point ideal for enterprise deployment. Key specs include 4x4:4 MIMO, multigigabit support, and IoT readiness.
In Stock — Ready To Ship
General
- Device Type: Wireless access point
- Authentication Method: EAP, EAP-SIM, MS-CHAP v.2, EAP-FAST
Ports & PoE
- Ports: 1 x 1/2.5/5GBase-T (UPOE) - RJ-45, 1 x management - RJ-45, 1 x USB 2.0
Performance & Capacity
- MIMO Configuration: 4x4:4
- Max Data Rate: 10 Gbps (160 MHz with 5 GHz)
Memory
- RAM: 2 GB
- Flash Memory: 1 GB
Power
- Power Over Ethernet: UPOE
Physical
- Width: 8.9 in
- Depth: 8.9 in
- Height: 1.9 in
- Weight: 3.2 lbs
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery US
Dispatch in 1–2 Business Days
Cisco · Catalyst 9130AX Series
C9130AXI-A 4-Port Wi-Fi 6 Access Point New
Enterprise-class access point for modern networks.
Overview
The Cisco Catalyst 9130AX Series Access Points represent the next generation of enterprise access points, designed for resilience, security, and intelligence. The C9130AXI-A model features external antennas and is equipped with Wi-Fi 6 technology, supporting advanced capabilities such as 4x4:4 MIMO and multigigabit connectivity. This access point is optimized for both current and future networking needs, leveraging the full benefits of Wi-Fi 6.
Key Features
- Wi-Fi 6 Certified: Supports 802.11ax on both 2.4-GHz and 5-GHz bands.
- Advanced MIMO Technology: Features 4x4:4 MIMO for enhanced performance.
- Multigigabit Support: Provides high-speed connectivity options.
- IoT Ready: Compatible with BLE and Zigbee protocols.
- OFDMA and MU-MIMO: Supports efficient data transmission for multiple devices.
- Power Over Ethernet: UPOE support for flexible installation.
- Robust Security: Includes AES, WPA2, and WPA3 encryption algorithms.
- Environmental Resilience: Operates in temperatures from 32°F to 122°F.
Specifications
| General | |
|---|---|
| Device Type | Wireless access point |
| Authentication Method | EAP, EAP-SIM, MS-CHAP v.2, EAP-FAST |
| Ports & PoE | |
| Ports | 1 x 1/2.5/5GBase-T (UPOE) - RJ-45, 1 x management - RJ-45, 1 x USB 2.0 |
| Performance & Capacity | |
| MIMO Configuration | 4x4:4 |
| Max Data Rate | 10 Gbps (160 MHz with 5 GHz) |
| Memory | |
| RAM | 2 GB |
| Flash Memory | 1 GB |
| Power | |
| Power Over Ethernet | UPOE |
| Physical | |
| Width | 8.9 in |
| Depth | 8.9 in |
| Height | 1.9 in |
| Weight | 3.2 lbs |
| Environmental | |
| Operating Humidity | 10 - 90% (non-condensing) |
| Max Operating Temperature | 122 °F |
| Min Operating Temperature | 32 °F |
| Compliance | |
| Compliant Standards | IEEE 802.3, IEEE 802.11a/b/g/n/ac/ax, UL 2043, CISPR 32 |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco Catalyst 9130AX 4-Port Wi-Fi 6 Access Point – New | C9130AXI-A.
The maximum data rate is up to 10 Gbps when using 160 MHz channels on the 5 GHz band.
The C9130AXI-A supports 4x4:4 MIMO, allowing for four spatial streams.
The C9130AXI-A is IoT ready and supports BLE and Zigbee protocols.
The operating temperature range is from 32°F to 122°F.
The C9130AXI-A weighs 3.2 lbs.
The C9130AXI-A supports Power Over Ethernet (PoE) with UPOE.
