NEW

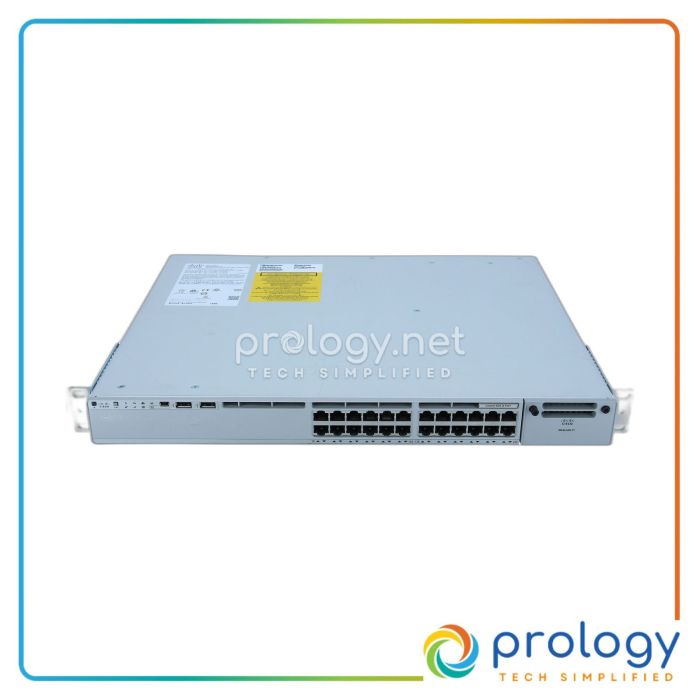

main product photo

Cisco Catalyst 9200 24-Port PoE+ Network Advantage Switch – New | C9200-24P-A

In Stock
1 units available
SKU
C9200-24P-A-NEW
MPN
C9200-24P-A
Be the first to review this product
$2,603
The Cisco Catalyst 9200 24-port PoE+ switch is new and ideal for medium-sized businesses. It features Layer 3 routing, a PoE budget of up to 740W, and 160 Gbps stacking bandwidth.
In Stock
General
  • Device Type: Switch - 24 ports - L3 - smart - stackable
  • Enclosure Type: Rack-mountable
Ports & PoE
  • Ports: 24 x 10/100/1000 Base-T RJ-45 PoE+
  • PoE Budget: Up to 740W
Performance & Capacity
  • Switching Capacity: 128 Gbps
  • Forwarding Rate: 190.4 Mpps
  • Jumbo Frame Support: 9198 bytes
Memory
  • RAM: 4 GB
  • Flash Memory: 4 GB
Layer & Routing
  • Routing Protocols: OSPF, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SSM, MSDP, policy-based routing (PBR), RIPng
Stacking
  • Stacking Bandwidth: 160 Gbps

Request a quote or add to cart — pricing available on enquiry for refurbished stock.

For international customers, please contact us for personalised support and assistance.

Request Quote / Enquire
180-Days Warranty
Secure Checkout
Free Delivery US
Dispatch in 1–2 Business Days
Add to Wish List Add to Compare
Cisco · Catalyst 9200 Series
C9200-24P-A 24-Port PoE+ Switch New
Designed for enterprise-level networking with advanced security features.
Overview
The Cisco Catalyst 9200 24-port PoE+ Switch with Network Advantage software extends the capabilities of intent-based networking. It is designed for medium-sized businesses and enterprise branch offices, offering robust security and automation features. This switch supports Layer 3 routing, encrypted traffic analytics, and SD-Access, ensuring a reliable and manageable networking infrastructure.
Key Features
  • Power over Ethernet: Supports PoE+ with up to 30W per port.
  • Stacking Bandwidth: Offers 160 Gbps for efficient stacking.
  • Switching Capacity: Delivers up to 128 Gbps switching capacity.
  • Forwarding Rate: Achieves a forwarding rate of 190.4 Mpps.
  • MAC Address Table: Supports up to 32,000 entries.
  • Environmental Resilience: Operates in humidity ranges of 5-90% non-condensing.
  • Dimensions: Compact design with a depth of 44.5 cm, height of 4.4 cm, and width of 43.9 mm.
  • Redundant Power Supply: Supports dual redundant power supplies for enhanced availability.
Specifications
General
Device TypeSwitch - 24 ports - L3 - smart - stackable
Enclosure TypeRack-mountable
Ports & PoE
Ports24 x 10/100/1000 Base-T RJ-45 PoE+
PoE BudgetUp to 740W
Performance & Capacity
Switching Capacity128 Gbps
Forwarding Rate190.4 Mpps
Jumbo Frame Support9198 bytes
Memory
RAM4 GB
Flash Memory4 GB
Layer & Routing
Routing ProtocolsOSPF, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SSM, MSDP, policy-based routing (PBR), RIPng
Stacking
Stacking Bandwidth160 Gbps
Interfaces & Connectivity
Uplink ConfigurationModular uplink options
Power
Power SupplyInternal power supply - hot-plug
Physical
Width43.9 mm
Depth44.5 cm
Height4.4 cm
Weight5.50 kg
Environmental
Operating Humidity5 - 90% (non-condensing)
Min Storage Temperature-40 °F
Max Storage Temperature158 °F
Compliance
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz
Documents

Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.

Reviews
Write Your Own Review
You're reviewing:Cisco Catalyst 9200 24-Port PoE+ Network Advantage Switch – New | C9200-24P-A
Your Rating
FAQ

Common questions about the Cisco Catalyst 9200 24-Port PoE+ Network Advantage Switch – New | C9200-24P-A.

The maximum PoE budget for the C9200-24P-A is up to 740W.
The C9200-24P-A features 24 x 10/100/1000 Base-T RJ-45 PoE+ ports.
The C9200-24P-A supports stacking bandwidth of 160 Gbps.
The C9200-24P-A supports OSPF, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SSM, MSDP, policy-based routing (PBR), and RIPng.
The C9200-24P-A weighs 5.50 kg.
The dimensions of the C9200-24P-A are 44.5 cm depth, 4.4 cm height, and 43.9 mm width.
Documents
End-of-Sale and End-of-Life Announcement for the Cisco 17.1.x Release EoL
End-of-Life and End-of-Sale Notices
Download
Cisco Catalyst 9200 Series Switches Data Sheet
Data Sheets
Download
