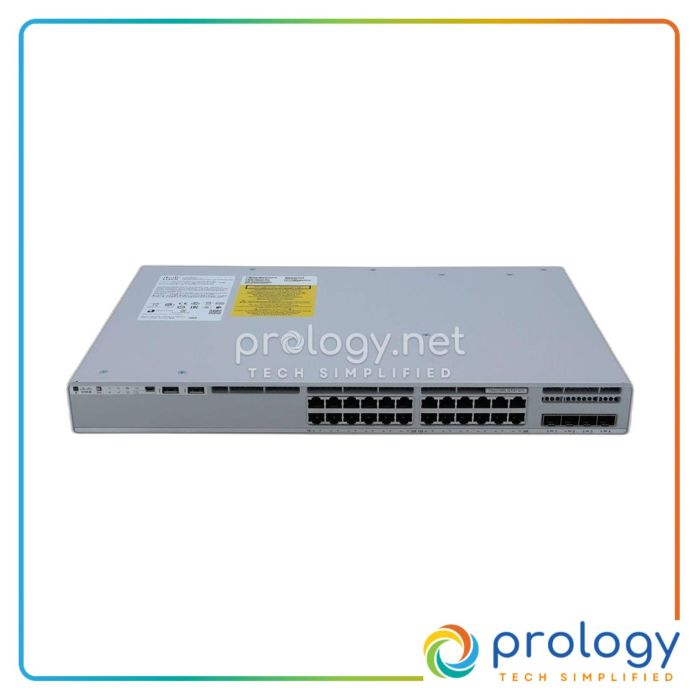

Cisco Catalyst 9200 24-Port L3 Managed PoE+ Switch – New | C9200-24PXG-E
The Cisco Catalyst 9200-24PXG-E is a new managed switch ideal for medium to large enterprises. It features 24 ports, PoE+ support, and advanced Layer 3 capabilities.
Out of Stock
Device Type
Switch - 24 ports - L3 - managed - stackable
Enclosure Type
Rack-mountable
Ports
8 x 100/1000/2.5G/5G/10GBase-T + 16 x 10/100/1000 (PoE+)
PoE Budget
370 W
Switching Capacity
272 Gbps
Forwarding Rate
214.28 Mpps
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery US
Dispatch in 1–2 Business Days
Cisco · Catalyst 9200 Series
C9200-24PXG-E 24-Port PoE+ Switch New
Reliable performance for enterprise networks.
Overview
The Catalyst 9200 series enhances network capabilities with advanced features and high security. It is designed for medium to large enterprises, ensuring energy efficiency and simplified management. This model supports Layer 3 routing and offers robust performance with its multigigabit and standard Gigabit ports.
Key Features
- Layer 3 Managed Switch: Supports advanced routing protocols including OSPF and EIGRP.
- Power over Ethernet (PoE+): Delivers up to 370W for powering devices directly through the network.
- High Switching Capacity: Offers a switching capacity of 272 Gbps with stacking capabilities.
- Multigigabit Ports: Includes 8 multigigabit ports for flexible connectivity options.
- Robust Security: Features AES-128 MACsec encryption for enhanced data protection.
- Energy Efficient: Designed to reduce operational costs while maintaining high performance.
- Compact Design: Rack-mountable with a height of 1.73 inches, suitable for various environments.
Specifications
| General | |
|---|---|
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable |
| Ports & PoE | |
| Ports | 8 x 100/1000/2.5G/5G/10GBase-T + 16 x 10/100/1000 (PoE+) |
| PoE Budget | 370 W |
| Performance & Capacity | |
| Switching Capacity | 272 Gbps |
| Forwarding Rate | 214.28 Mpps |
| Stacking Bandwidth | 80 Gbps |
| Memory | |
| RAM | 2 GB |
| Flash Memory | 4 GB |
| Layer & Routing | |
| Routing Protocols | OSPF, RIP, IS-IS, EIGRP, HSRP, VRRP |
| Stacking | |
| Stacking Capability | Yes |
| Interfaces & Connectivity | |
| Expansion Slots | 1 |
| Power | |
| Power Supply | Internal power supply - hot-plug |
| Physical | |
| Width | 17.5 in |
| Depth | 1.73 in |
| Height | 13.8 in |
| Weight | 5.10 kg |
| Environmental | |
| Operating Temperature | 23 °F to 113 °F |
| Humidity Range | 5 - 90% (non-condensing) |
| Compliance | |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco Catalyst 9200 24-Port L3 Managed PoE+ Switch – New | C9200-24PXG-E.
The maximum PoE budget for the C9200-24PXG-E is 370W.
The C9200-24PXG-E has a total of 24 ports, including 8 multigigabit and 16 standard Gigabit ports.
The switch supports OSPF, RIP, IS-IS, EIGRP, HSRP, and VRRP routing protocols.
Yes, the C9200-24PXG-E is stackable with a stacking bandwidth of 80 Gbps.
The switching capacity of the C9200-24PXG-E is 272 Gbps.
The dimensions are 17.5 in width, 1.73 in depth, and 13.8 in height.
