REFURBISHED

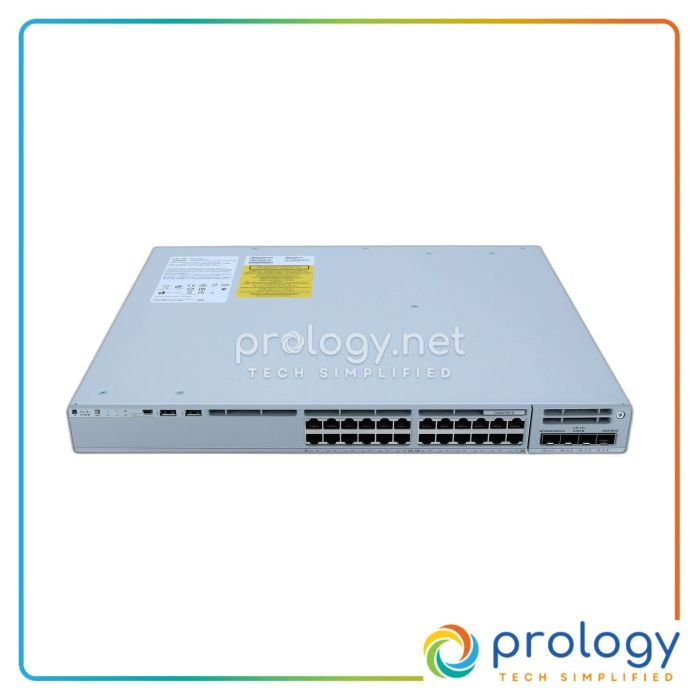

main product photo

Cisco Catalyst 9200 24-Port Gigabit Managed Switch – Refurbished | C9200-24T-E

In Stock
1 units available
SKU
C9200-24T-E-REFURBISHED
MPN
C9200-24T-E
Be the first to review this product
$1,298
The Cisco Catalyst 9200 24-port switch is refurbished and ideal for enterprise networks. It features 24 Gigabit Ethernet ports, 128 Gbps switching capacity, and stackable design.
In Stock
General
  • Device Type: Switch - 24 ports - L3 - managed - stackable
  • Enclosure Type: Rack-mountable
Ports & PoE
  • Ports: 24 x 10/100/1000 Base-T RJ-45
  • Uplink Ports: 1 x network stack device, 1 x management (LAN) RJ-45, 1 x console RJ-45
Performance & Capacity
  • Switching Capacity: 128 Gbps
  • Forwarding Rate: 190.4 Mpps
  • Stacking Bandwidth: 160 Gbps
  • MAC Address Table Size: 32000 entries
  • Jumbo Frame Support: 9198 bytes
Memory
  • RAM: 4 GB
  • Flash Memory: 4 GB
Layer & Routing
  • Routing Protocols: OSPF, RIP, EIGRP, VRRP, PIM-SM, and more
Stacking
  • Stackable: Yes, up to 8 switches

Request a quote or add to cart — pricing available on enquiry for refurbished stock.

For international customers, please contact us for personalised support and assistance.

Request Quote / Enquire
180-Days Warranty
Secure Checkout
Free Delivery US
Dispatch in 1–2 Business Days
Add to Wish List Add to Compare
Cisco · Catalyst 9200 Series
C9200-24T-E 24-Port Gigabit Managed Switch Refurbished
Designed for enterprise-level network efficiency.
Overview
The Cisco Catalyst 9200 Series switches extend the power of intent-based networking, providing seamless and reliable connectivity for enterprise networks. Built for high performance, the C9200-24T-E supports advanced security features and traffic management, making it a robust solution for modern network environments.
Key Features
  • Port Count: 24 Gigabit Ethernet ports for high-speed connectivity.
  • Switching Capacity: 128 Gbps switching capacity for efficient data handling.
  • Stackable: Supports stacking of up to 8 switches for scalability.
  • Security: Advanced security features including Encrypted Traffic Analytics.
  • Management: Simplified management tools for operational efficiency.
  • Environmental Compliance: Designed to operate in 5-90% humidity (non-condensing).
  • Energy Efficiency: Compliant with Energy Efficient Ethernet (EEE).
  • Routing Protocols: Supports OSPF, EIGRP, and more for versatile routing.
Specifications
General
Device TypeSwitch - 24 ports - L3 - managed - stackable
Enclosure TypeRack-mountable
Ports & PoE
Ports24 x 10/100/1000 Base-T RJ-45
Uplink Ports1 x network stack device, 1 x management (LAN) RJ-45, 1 x console RJ-45
Performance & Capacity
Switching Capacity128 Gbps
Forwarding Rate190.4 Mpps
Stacking Bandwidth160 Gbps
MAC Address Table Size32000 entries
Jumbo Frame Support9198 bytes
Memory
RAM4 GB
Flash Memory4 GB
Layer & Routing
Routing ProtocolsOSPF, RIP, EIGRP, VRRP, PIM-SM, and more
Stacking
StackableYes, up to 8 switches
Interfaces & Connectivity
Expansion Slots1 (total) / 1 (free)
Power
Power SupplyInternal power supply - hot-plug
Physical
Width44.5 cm
Depth35.05 cm
Height4.39 cm
Weight5.38 kg
Environmental
Operating Humidity5 - 90% (non-condensing)
Min Storage Temperature-40 °F
Max Storage Temperature158 °F
Compliance
Compliant StandardsIEEE 802.3, IEEE 802.1Q, and more
Documents

Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.

Reviews
Write Your Own Review
You're reviewing:Cisco Catalyst 9200 24-Port Gigabit Managed Switch – Refurbished | C9200-24T-E
Your Rating
FAQ

Common questions about the Cisco Catalyst 9200 24-Port Gigabit Managed Switch – Refurbished | C9200-24T-E.

The C9200-24T-E supports stacking of up to 8 switches with a stacking bandwidth of 160 Gbps.
No, the C9200-24T-E does not support PoE functionality.
The maximum switching capacity of the C9200-24T-E is 128 Gbps.
The C9200-24T-E supports OSPF, EIGRP, RIP, and several other routing protocols.
The dimensions are 44.5 cm in width, 35.05 cm in depth, and 4.39 cm in height.
The weight of the C9200-24T-E is 5.38 kg.
