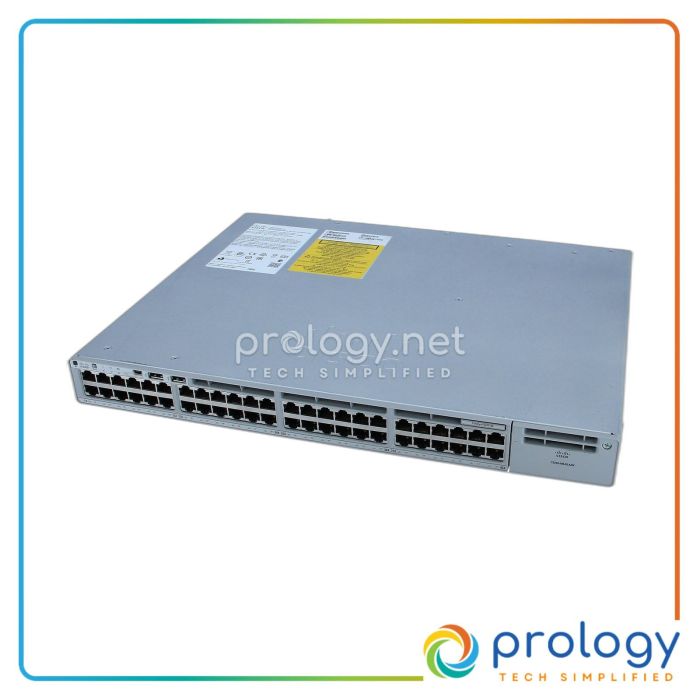

Cisco Catalyst 9200 48-Port Gigabit Network Advantage Switch – New | C9200-48T-A
The Cisco Catalyst 9200 48-port switch is new and ideal for medium to large businesses. It features 176 Gbps switching capacity, 261.9 Mpps forwarding rate, and supports Layer 3 routing.
Out of Stock
Device Type
Switch - 48 ports - L3 - Managed - stackable
Enclosure Type
Rack-mountable
Total Ports
48 x 10/100/1000 Base-T
Switching Capacity
176 Gbps
Forwarding Rate
261.9 Mpps
MAC Address Table Size
32000 entries
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery US
Dispatch in 1–2 Business Days
Cisco · Catalyst 9200 Series
C9200-48T-A 48-Port Gigabit Switch New
Designed for enterprise-class security and operational efficiency.
Overview
The Cisco Catalyst 9200 is a 48-port managed switch that extends the power of intent-based networking. It is built on the Catalyst 9000 hardware and software innovation, providing enhanced security and simplified IT operations. This switch is ideal for medium to large enterprises looking for reliable performance and scalability.
Key Features
- Ports: 48 x 10/100/1000 Ethernet ports.
- Switching Capacity: Up to 176 Gbps.
- Forwarding Rate: 261.9 Mpps.
- Stacking Bandwidth: 160 Gbps with StackWise-160 technology.
- Memory: 4 GB DRAM and 4 GB Flash.
- Layer 3 Capabilities: Supports OSPF, EIGRP, and more.
- Security Features: AES-128 MACsec encryption and policy-based segmentation.
- Management: Cisco IOS XE for simplified operations.
Specifications
| General | |
|---|---|
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type | Rack-mountable |
| Ports & PoE | |
| Total Ports | 48 x 10/100/1000 Base-T |
| Performance & Capacity | |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 261.9 Mpps |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Memory | |
| RAM | 4 GB |
| Flash Memory | 4 GB |
| Layer & Routing | |
| Routing Protocols | OSPF, EIGRP, RIP, IS-IS |
| Stacking | |
| Stacking Bandwidth | 160 Gbps |
| Interfaces & Connectivity | |
| Management Ports | 1 x management (LAN) RJ-45, 1 x console RJ-45 |
| Power | |
| Power Supply | Internal power supply - hot-plug, 125W |
| Physical | |
| Width | 44.5 cm |
| Depth | 35.0 cm |
| Height | 4.4 cm |
| Weight | 4.5 kg |
| Environmental | |
| MTBF | 571440 hours |
| Compliance | |
| Standards | IEEE 802.3, IEEE 802.1Q, RoHS compliant |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco Catalyst 9200 48-Port Gigabit Network Advantage Switch – New | C9200-48T-A.
The maximum switching capacity is 176 Gbps.
It has 48 x 10/100/1000 Ethernet ports.
The forwarding rate is 261.9 Mpps.
Yes, it supports StackWise-160 technology for stacking.
It has 4 GB of DRAM and 4 GB of Flash memory.
It supports OSPF, EIGRP, and RIP among others.
