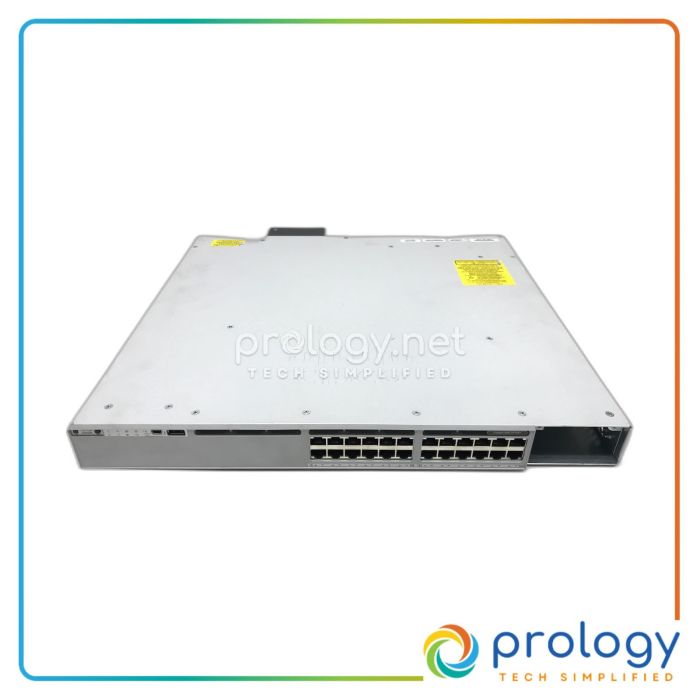

Cisco Catalyst 9300 24-Port PoE+ Network Advantage Switch – New | C9300-24P-A
In Stock — Ready to Ship
2 units available
SKU
C9300-24P-A-NEW
MPN
C9300-24P-A
$6,647
The Cisco Catalyst 9300 24-Port PoE+ switch is new and ideal for enterprise networks. It features 24 PoE+ ports, 480 Gbps stacking bandwidth, and a 445 W PoE budget.
Available via Supplier
Device Type
Switch - 24 ports - L3 - Managed
Model
C9300-24P-A
Total Ports
24 x 10/100/1000 (PoE+)
PoE Budget
445 W
Switching Capacity
448 Gbps
Forwarding Rate
154.76 Mpps
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery US
Dispatch in 1–2 Business Days
Cisco · Catalyst 9300 Series
C9300-24P-A 24-Port PoE+ Switch New
Designed for enterprise networks with advanced security features.
Overview
The Cisco Catalyst 9300 Series Switches represent Cisco's leading stackable enterprise switching platform, built for security, IoT, mobility, and cloud applications. The C9300-24P-A model features an x86 CPU architecture, enabling it to host containers and run third-party applications natively. With its high-density stacking bandwidth and flexible uplink architecture, it is optimized for modern network demands.
Key Features
- 24 PoE+ Ports: Supports Power over Ethernet for connected devices.
- Stacking Bandwidth: Offers 480 Gbps for high-density stacking.
- Switching Capacity: Up to 448 Gbps for efficient data handling.
- Advanced Security: Features AES-256 MACsec encryption and Encrypted Traffic Analytics.
- Memory: Equipped with 8 GB of RAM and 16 GB of Flash memory.
- Layer 3 Routing: Supports multiple protocols including OSPF, BGP, and EIGRP.
- Jumbo Frame Support: Supports frames up to 9198 bytes.
- Environmental Resilience: Operates in temperatures from 23°F to 113°F with 5-90% humidity.
Specifications
| General | |
|---|---|
| Device Type | Switch - 24 ports - L3 - Managed |
| Model | C9300-24P-A |
| Ports & PoE | |
| Total Ports | 24 x 10/100/1000 (PoE+) |
| PoE Budget | 445 W |
| Performance & Capacity | |
| Switching Capacity | 448 Gbps |
| Forwarding Rate | 154.76 Mpps |
| Stacking Bandwidth | 480 Gbps |
| Memory | |
| RAM | 8 GB |
| Flash | 16 GB |
| Layer & Routing | |
| Routing Protocols | OSPF, BGP, EIGRP, etc. |
| Stacking | |
| StackWise Technology | StackWise-480 |
| Interfaces & Connectivity | |
| Uplink Interfaces | Modular uplinks |
| Power | |
| Power Supply | 715 W AC |
| Physical | |
| Width | 17.5 in |
| Depth | 17.5 in |
| Height | 1.7 in |
| Weight | 16.33 lbs (7.41 kg) |
| Environmental | |
| Operating Temperature | 23°F to 113°F |
| Humidity Range | 5 - 90% (non-condensing) |
| Compliance | |
| Certifications | UL 60950-1, EN 60950-1, RoHS 5 |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco Catalyst 9300 24-Port PoE+ Network Advantage Switch – New | C9300-24P-A.
The maximum PoE budget for the C9300-24P-A is 445 W.
The C9300-24P-A has 24 ports, all of which support PoE+.
The C9300-24P-A supports a stacking bandwidth of 480 Gbps.
The C9300-24P-A supports routing protocols including OSPF, BGP, and EIGRP.
The operating temperature range for the C9300-24P-A is 23°F to 113°F.
The weight of the C9300-24P-A is 16.33 lbs (7.41 kg).
