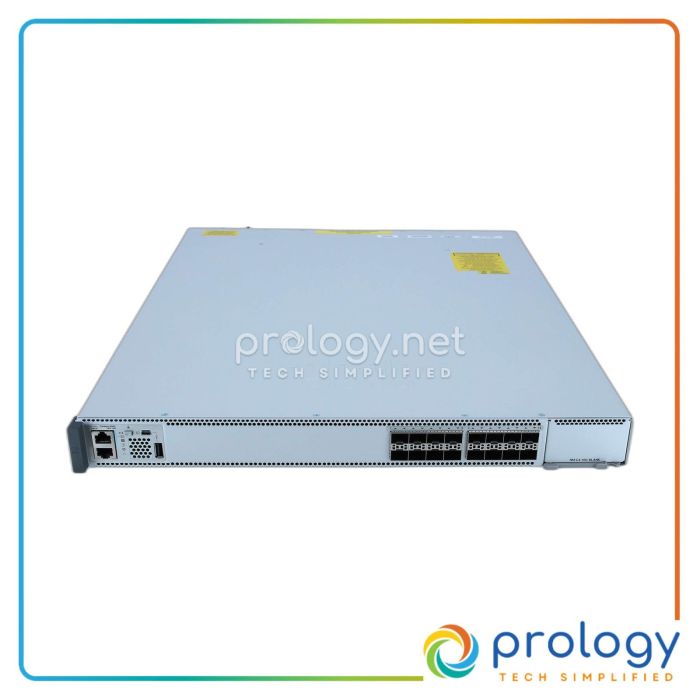

Cisco Catalyst 9500 16-Port 10G Network Essentials Switch – Refurbished | C9500-16X-E
In Stock — Ready to Ship
1 units available
SKU
C9500-16X-E-REFURBISHED
MPN
C9500-16X-E
$3,885
The Cisco Catalyst 9500 is a refurbished 16-port 10G switch ideal for enterprise applications. It features a switching capacity of up to 480 Gbps, a forwarding rate of up to 360 Mpps, and 16 GB of DRAM.
In Stock — Ready To Ship
General
- Device Type: Switch - 16 ports - L3 - managed
- Enclosure Type: Rack-mountable 1U
Ports & PoE
- Ports: 16 x 10Gbit LAN RJ-45, 2 x 10GBase-X SFP+
Performance & Capacity
- Switching Capacity: Up to 480 Gbps
- Forwarding Rate: Up to 360 Mpps
- Total MAC Addresses: Up to 64,000
- Total IPv4 Routes: Up to 64,000 indirect, Up to 80,000 host
- Total IPv6 Routes: Up to 32,000 indirect, Up to 40,000 host
- VLAN IDs: 4000
- Jumbo Frame: 9198 bytes
Memory
- DRAM: 16 GB
- Flash: 16 GB
Power
- Power Provided: 950 Watt
- Power Redundancy: Yes
Physical
- Width: 1.73 in
- Depth: 17.5 in
- Height: 21.52 in
- Weight: 23.59 lbs
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery US
Dispatch in 1–2 Business Days
Cisco · Catalyst 9500 Series
C9500-16X-E 16-Port 10G Switch Refurbished
High-performance switch for enterprise networks.
Overview
The Cisco Catalyst 9500 is a 16-port 10G switch designed for enterprise-level applications. Built on an x86 CPU, it supports programmability and serviceability, making it suitable for security, IoT, and cloud environments.
Key Features
- Switching Capacity: Up to 480 Gbps.
- Forwarding Rate: Up to 360 Mpps.
- DRAM: 16 GB for efficient processing.
- Flash Memory: 16 GB for storage of configurations.
- VLAN Support: Up to 4000 VLAN IDs.
- Jumbo Frame Support: Up to 9198 bytes.
- Power Redundancy: Supports 1+1 redundant power supplies.
- MTBF: 315,790 hours for reliability.
Specifications
| General | |
|---|---|
| Device Type | Switch - 16 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Ports & PoE | |
| Ports | 16 x 10Gbit LAN RJ-45, 2 x 10GBase-X SFP+ |
| Performance & Capacity | |
| Switching Capacity | Up to 480 Gbps |
| Forwarding Rate | Up to 360 Mpps |
| Total MAC Addresses | Up to 64,000 |
| Total IPv4 Routes | Up to 64,000 indirect, Up to 80,000 host |
| Total IPv6 Routes | Up to 32,000 indirect, Up to 40,000 host |
| VLAN IDs | 4000 |
| Jumbo Frame | 9198 bytes |
| Memory | |
| DRAM | 16 GB |
| Flash | 16 GB |
| Power | |
| Power Provided | 950 Watt |
| Power Redundancy | Yes |
| Physical | |
| Width | 1.73 in |
| Depth | 17.5 in |
| Height | 21.52 in |
| Weight | 23.59 lbs |
| Environmental | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 149 °F |
| Compliance | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco Catalyst 9500 16-Port 10G Network Essentials Switch – Refurbished | C9500-16X-E.
The maximum switching capacity is up to 480 Gbps.
The C9500-16X-E has 16 ports, including 10Gbit LAN RJ-45 and SFP+ interfaces.
The forwarding rate is up to 360 Mpps.
It operates within a temperature range of 32 °F to 104 °F and a humidity range of 5% to 90% (non-condensing).
Yes, it supports up to 4000 VLAN IDs.
The MTBF is 315,790 hours.
