What is the maximum switching capacity of the C9500-40X-A?

The maximum switching capacity is 480 Gbps.

What is the operating temperature range for this switch?

The operating temperature range is 0 °C to 40 °C.

What routing protocols are supported by the C9500-40X-A?

It supports OSPF, BGP, EIGRP, and more.

NEW

Skip to the end of the images gallery

Skip to the beginning of the images gallery

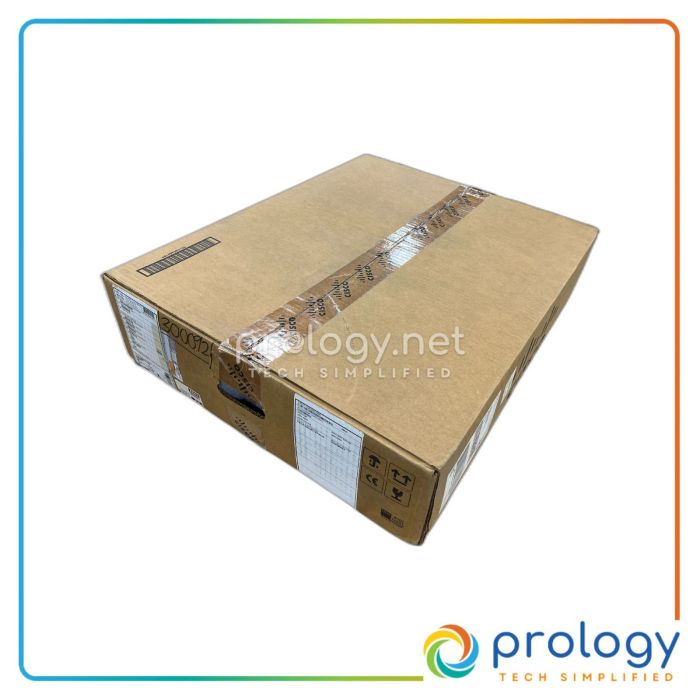

Cisco Catalyst 9500 40-Port 10Gig Network Advantage Switch – New | C9500-40X-A

Name: Cisco Catalyst 9500 40-Port 10Gig Network Advantage Switch – New | C9500-40X-A
Brand: Cisco
SKU: C9500-40X-A
Price: 2994 USD
Availability: InStock
Rating: 4.2 (5 reviews)

In Stock

1 units available

SKU

C9500-40X-A-NEW

MPN

C9500-40X-A

Be the first to review this product

$2,994

The Cisco Catalyst 9500 is a new 40-port switch ideal for enterprise networks. It features 40 x 10G SFP+ ports, 480 Gbps switching capacity, and 720 Mpps forwarding rate.

In Stock

General

Device Type: Switch - 40 ports - L3 - Managed
Enclosure Type: Rack-mountable 1U

Ports & PoE

Ports: 40 x 10G SFP+
Power Over Ethernet (PoE): UPOE

Performance & Capacity

Switching Capacity (full duplex): 480 Gbps
Forwarding Rate: 720 Mpps
Routing Table Entries: 64000
VLAN IDs: 4000

Memory

RAM: 16 GB - DIMM 288-pin - DDR4 SDRAM
Flash Memory: 16 GB

Layer & Routing

Routing Protocols: OSPF, BGP, EIGRP, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, PIM-SSM, MSDP, RIPng, MPLS

Power

Power Device: Internal power supply - hot-plug
Power Provided: 950 Watt

Request a quote or add to cart — pricing available on enquiry for refurbished stock.

For international customers, please contact us for personalised support and assistance.

Request Quote / Enquire

180-Days Warranty

Secure Checkout

Free Delivery US

Dispatch in 1–2 Business Days

Add to Wish List Add to Compare

Description

Cisco · Catalyst 9500 Series

C9500-40X-A 40-Port 10Gig Switch New

Designed for high-performance enterprise networks.

Overview

The Cisco Catalyst 9500 Series Switches represent the next generation of enterprise-class core and aggregation layer switches. Built on an x86 CPU, this model is purpose-built for security, IoT, and cloud applications. It is designed to support high-performance networking for enterprise campuses.

Key Features

High Port Density: 40 x 10G SFP+ ports for extensive connectivity.
Robust Performance: Switching capacity of 480 Gbps and forwarding rate of 720 Mpps.
Advanced Security: Supports MACsec and TrustSec for enhanced security.
Programmability: Full programmability and serviceability for modern network demands.
Environmental Resilience: Operates in temperatures from 0°C to 40°C.
Power Efficiency: 950W internal power supply with optional redundancy.
Comprehensive Protocol Support: Supports OSPF, BGP, and more for flexible routing.
Management Protocols: Compatible with SNMP, NETCONF, and RESTCONF for easy management.

Specifications

General
Device Type	Switch - 40 ports - L3 - Managed
Enclosure Type	Rack-mountable 1U
Ports & PoE
Ports	40 x 10G SFP+
Power Over Ethernet (PoE)	UPOE
Performance & Capacity
Switching Capacity (full duplex)	480 Gbps
Forwarding Rate	720 Mpps
Routing Table Entries	64000
VLAN IDs	4000
Memory
RAM	16 GB - DIMM 288-pin - DDR4 SDRAM
Flash Memory	16 GB
Layer & Routing
Routing Protocols	OSPF, BGP, EIGRP, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, PIM-SSM, MSDP, RIPng, MPLS
Power
Power Device	Internal power supply - hot-plug
Power Provided	950 Watt
Physical
Width	44.5 cm
Depth	54.7 cm
Height	4.39 cm
Weight	8.42 kg
Environmental
Operating Temperature	0 °C to 40 °C
Storage Temperature	-20 °C to 65 °C
Humidity Range Operating	5 - 90% (non-condensing)
Humidity Range Storage	5 - 95% (non-condensing)
Compliance
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae
