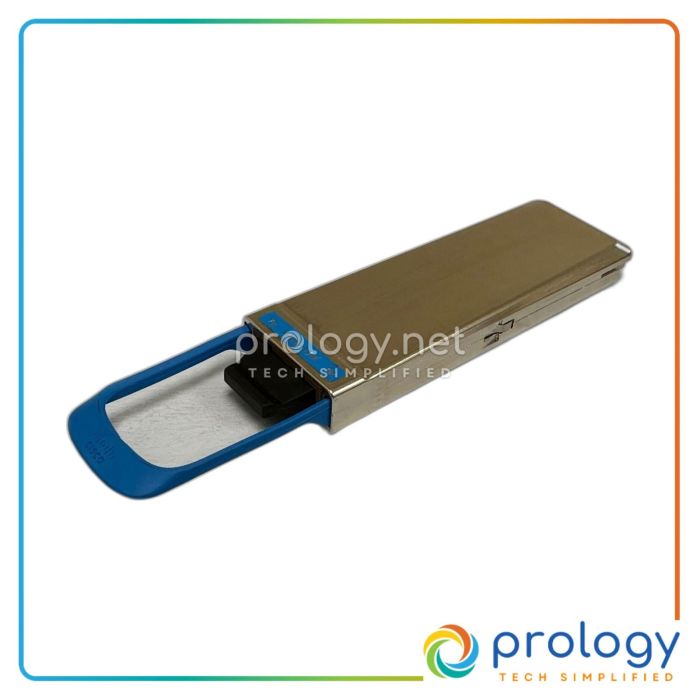

Cisco CPAK 100G-LR4 2-Port 100GBase-LR4 Transceiver Module – Refurbished | CPAK-100G-LR4
In Stock — Ready to Ship
1 units available
SKU
CPAK-100G-LR4-REFURBISHED
MPN
CPAK-100G-LR4
$515
The Cisco CPAK 100G-LR4 is a refurbished transceiver module for data centers. It supports 100 Gbps data rates, operates over single-mode fiber, and reaches up to 10 km.
In Stock — Ready To Ship
Device Type
CPAK transceiver module
Form Factor
Plug-in module
Total Number of Ports
1
Interface Type
100GBase-LR4 - SC/PC single-mode female
Data Transfer Rate
100 Gbps
Max Transfer Distance
10 km
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery US
Dispatch in 1–2 Business Days
Cisco · CPAK Series
CPAK-100G-LR4 100GBase-LR4 Transceiver Module Refurbished
High-performance connectivity for data centers.
Overview
The Cisco CPAK 100GBASE-LR4 module is designed for high-density 100 Gbps connectivity solutions in data centers and high-performance computing networks. This module is compliant with IEEE 802.3ba and supports link lengths of up to 10 km over standard single-mode fiber (SMF). It operates with minimal power consumption, making it ideal for enterprise core aggregation and service provider transport applications.
Key Features
- Data Rate: Supports 100 Gbps data transfer rate.
- Distance: Capable of reaching up to 10 km over single-mode fiber.
- Wavelength: Operates at a wavelength of 1310 nm.
- Digital Optical Monitoring: Features DOM support for real-time monitoring.
- Form Factor: Plug-in module for easy installation.
- Compatibility: Designed for use with various Cisco switches and routers.
- Power Consumption: Nominal power usage is less than 5.5 W.
Specifications
| General | |
|---|---|
| Device Type | CPAK transceiver module |
| Form Factor | Plug-in module |
| Ports & PoE | |
| Total Number of Ports | 1 |
| Interface Type | 100GBase-LR4 - SC/PC single-mode female |
| Performance | |
| Data Transfer Rate | 100 Gbps |
| Max Transfer Distance | 10 km |
| Optical Wavelength | 1310 nm |
| Power | |
| Power Consumption | < 5.5 W |
| Physical | |
| Width | 3.48 cm |
| Depth | 10.12 cm |
| Height | 1.16 cm |
| Weight | 127 g |
| Environmental | |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Compliance | |
| Compliant Standards | RoHS, Laser Class 1, FCC CFR21 Part 1040, IEC 60825-1, GR-326-CORE, GR-20-CORE, GR-1435-CORE |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco CPAK 100G-LR4 2-Port 100GBase-LR4 Transceiver Module – Refurbished | CPAK-100G-LR4.
The Cisco CPAK 100G-LR4 can reach up to 10 km over single-mode fiber.
This module is designed for use with single-mode fiber (SMF).
The nominal power consumption is less than 5.5 W.
Yes, it is designed for compatibility with various Cisco switches and routers.
It operates at a wavelength of 1310 nm.
Yes, it features Digital Optical Monitoring (DOM) support.
