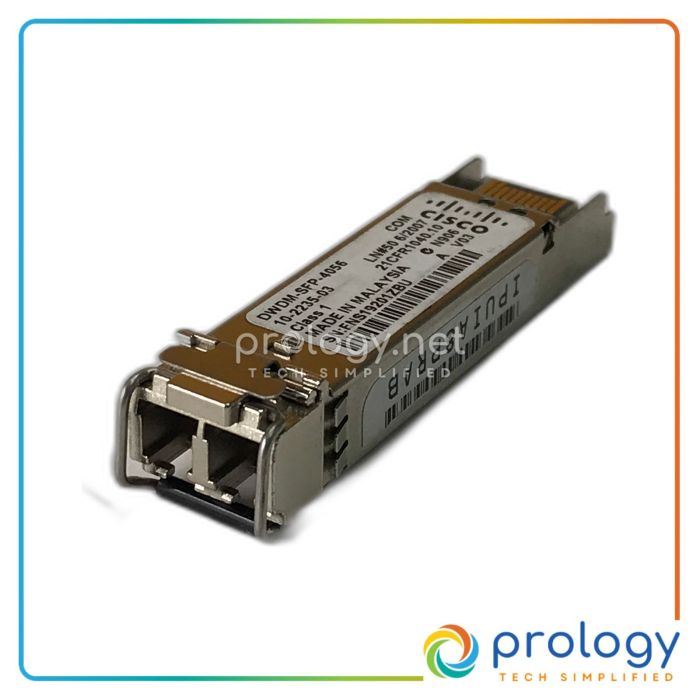

Cisco DWDM-SFP-4056 4-Port LC Duplex DWDM SFP Module – Refurbished | DWDM-SFP-4056
In Stock — Ready to Ship
1 units available
SKU
DWDM-SFP-4056-REFURBISHED
MPN
DWDM-SFP-4056
$298
The Cisco DWDM-SFP-4056 is a refurbished SFP module for high-capacity communications. It operates at 1540.56 nm, supports 4.25 Gbps data rates, and has a reach of up to 80 km.
In Stock — Ready To Ship
Wavelength
1540.56 nm
Data Rate
Up to 4.25 Gbps
Reach
Up to 80 km
Optical Output Power
-1 to +3 dBm
Receiver Sensitivity
-24 dBm
Interface
LC Duplex Connector
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery US
Dispatch in 1–2 Business Days
Cisco · DWDM-SFP-4056
DWDM-SFP-4056 4-Port LC Duplex DWDM SFP Module Refurbished
Ideal for long-distance networking and data integrity.
Overview
The Cisco DWDM-SFP-4056 is a dense wavelength-division multiplexing SFP module designed for high-capacity communications. Operating at a wavelength of 1540.56 nm on the 100 GHz ITU grid, it facilitates efficient data transmission over optical fiber networks. This module is ideal for long-distance networking and integrates seamlessly with various Cisco switches and routers, enhancing bandwidth and network performance.
Key Features
- Wavelength: Operates at 1540.56 nm on the 100 GHz ITU grid.
- Data Rate: Supports data rates up to 4.25 Gbps.
- Reach: Provides a reach of up to 80 km.
- Connector Type: Features an LC Duplex connector for easy integration.
- Digital Optical Monitoring: Supports digital optical monitoring (DOM) capabilities.
- Hot-swappable: Compatible with hot-swappable input/output devices.
- Weight: Weighs 75 g, ensuring a compact form factor.
- Operating Temperature: Functions within an operating temperature range of 0 to 70°C.
Specifications
| General | |
|---|---|
| Device Type | SFP (Small Form-Factor Pluggable) |
| Wavelength | 1540.56 nm |
| Data Rate | Up to 4.25 Gbps |
| Reach | Up to 80 km |
| Interface | LC Duplex Connector |
| Performance | |
| Optical Output Power | -1 to +3 dBm |
| Receiver Sensitivity | -24 dBm |
| Power | |
| Power Supply | 3.3V |
| Physical | |
| Dimensions | 13.4 mm x 56.5 mm x 8.5 mm |
| Weight | 75 g |
| Environmental | |
| Operating Temperature Range | 0 to 70°C (32 to 158°F) |
| Storage Temperature Range | -40 to 85°C (-40 to 185°F) |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco DWDM-SFP-4056 4-Port LC Duplex DWDM SFP Module – Refurbished | DWDM-SFP-4056.
The maximum data rate of the DWDM-SFP-4056 is up to 4.25 Gbps.
The DWDM-SFP-4056 can reach up to 80 km.
The DWDM-SFP-4056 uses an LC Duplex connector.
Yes, the DWDM-SFP-4056 is a hot-swappable input/output device.
The DWDM-SFP-4056 operates at a wavelength of 1540.56 nm.
The operating temperature range for the DWDM-SFP-4056 is 0 to 70°C.
