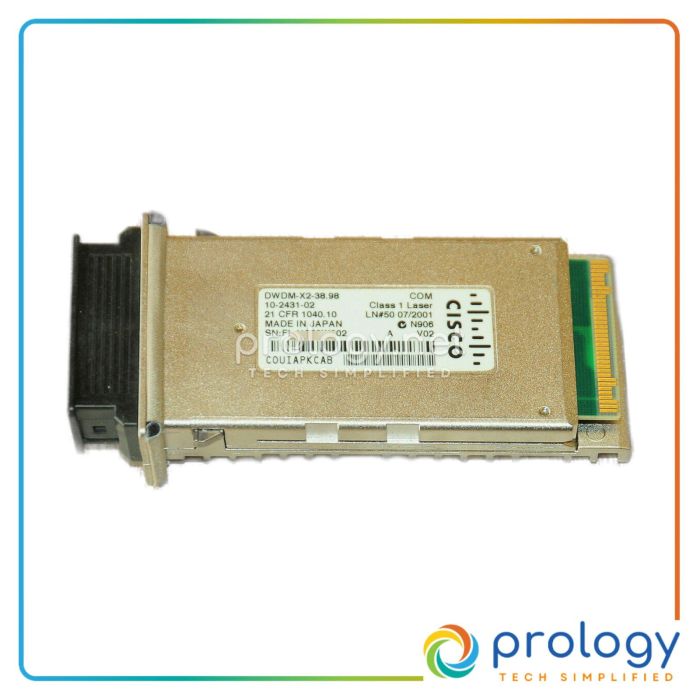

Cisco DWDM X2 2-Port 10GBASE-DWDM Transceiver Module – Refurbished | DWDM-X2-38.98
In Stock — Ready to Ship
1 units available
SKU
DWDM-X2-38.98-REFURBISHED
MPN
DWDM-X2-38.98
$1,121
The Cisco DWDM-X2-38.98 is a refurbished transceiver module for high-speed data transmission. It supports a distance of up to 80 km, operates at 1538.98 nm, and delivers 10 Gbps.
In Stock — Ready To Ship
Data Rate
10 Gbps
Wavelength
1538.98 nm
Optical Output Power
-1 to +2 dBm
Receiver Sensitivity
-24 dBm
Maximum Input Power
0 dBm
Transmission Distance
Up to 80 km
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery US
Dispatch in 1–2 Business Days
Cisco · DWDM X2 Series
DWDM-X2-38.98 10GBASE-DWDM Transceiver Module Refurbished
High-performance solution for long-range data transmission.
Overview
The Cisco DWDM-X2-38.98 is an original 10GBASE-DWDM transceiver module designed for robust, high-speed data transmission over fiber-optic networks. It operates on a 1538.98 nm wavelength within the 100-GHz ITU grid, providing dense wavelength division multiplexing (DWDM) to maximize bandwidth efficiency. This X2 module is ideal for large-scale data centers and telecommunications networks, offering reliable and consistent performance for long-distance communication on existing fiber infrastructure.
Key Features
- High-Performance: 10GBASE-DWDM for long-range data transmission.
- Wavelength: Operates at 1538.98 nm for optimized performance.
- Distance: Supports transmission distances of up to 80 km.
- Hot-Swappable: X2 form factor allows for easy installation.
- Compatibility: Optimized for Cisco switches and routers.
- Robust Design: Ensures reliable network performance.
Specifications
| General | |
|---|---|
| Device Type | X2 transceiver module |
| Form Factor | X2 |
| Ports & PoE | |
| Interfaces | 1 x Ethernet 10GBase-DWDM - SC/PC single-mode x 2 |
| Performance | |
| Data Rate | 10 Gbps |
| Wavelength | 1538.98 nm |
| Optical Output Power | -1 to +2 dBm |
| Receiver Sensitivity | -24 dBm |
| Maximum Input Power | 0 dBm |
| Physical | |
| Width | 3.6 cm |
| Depth | 9.1 cm |
| Height | 1.3 cm |
| Weight | 300 g |
| Environmental | |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Max Storage Temperature | 85 °C |
| Min Storage Temperature | -40 °C |
| Relative Humidity | 5% to 95% non-condensing |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco DWDM X2 2-Port 10GBASE-DWDM Transceiver Module – Refurbished | DWDM-X2-38.98.
The DWDM-X2-38.98 supports transmission distances of up to 80 km depending on the fiber type.
It operates on a wavelength of 1538.98 nm.
Yes, it is optimized for use with Cisco switches and routers.
The data rate is 10 Gbps.
It uses SC/PC single-mode connectors.
The operating temperature range is from 0 °C to 70 °C.
No documents available for this product yet.
