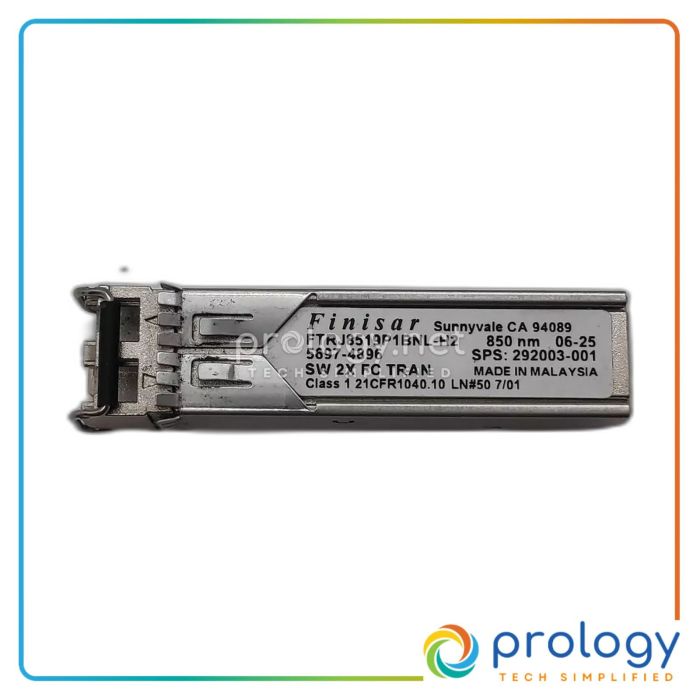

Finisar FTRJ8519P1BNL-H2 2.125 Gbps 1000Base-SX Fiber Transceiver Module

Name: Finisar 2G Fibre Channel 1000BASE-SX 850nm SFP Transceiver – Refurbished | FTRJ8519P1BNL-H2
Brand: Finisar
SKU: FTRJ8519P1BNL-H2
Price: 30 USD
Availability: InStock

In Stock

1 units available

SKU

FTRJ8519P1BNL-H2-REFURBISHED

MPN

FTRJ8519P1BNL-H2

Be the first to review this product

USD $30.00

Refurbished Finisar FTRJ8519P1BNL-H2 shortwave SFP transceiver supporting 1x/2x Fibre Channel (1.063/2.125 Gbps) and 1000BASE-SX Gigabit Ethernet over multimode fibre with an 850 nm VCSEL and a duplex LC connector, sold as HP OEM part 292003-001.

In Stock

Brand Finisar

Model FTRJ8519P1BNL

OEM Part Number HP 292003-001

Form Factor SFP (hot-pluggable)

Type Shortwave (SW), multimode

Data Rate 1.063 / 2.125 Gbps (1x/2x FC)

Request a quote or add to cart — pricing available on enquiry for refurbished stock.

For international customers, please contact us for personalised support and assistance.

Request Quote / Enquire

180-Days Warranty

Secure Checkout

Free Delivery US

Dispatch in 1–2 Business Days

Add to Wish List Add to Compare

Description

FTRJ8519P1BNL-H2

Finisar FTRJ8519P1BNL-H2 2.125 Gbps 1000Base-SX Fiber Transceiver Module REFURBISHED

The Finisar FTRJ8519P1BNL-H2 is a hot-pluggable shortwave SFP transceiver for 1x/2x Fibre Channel and 1000BASE-SX Gigabit Ethernet over multimode fibre. It uses an 850 nm oxide VCSEL with a duplex LC connector and operates from a single 3.3 V supply. The '-H2' suffix denotes the HP/Compaq OEM part number 292003-001. The module includes digital diagnostic monitoring for real-time visibility of optical parameters.

Key Features

Dual-rate 1.063 / 2.125 Gbps Fibre Channel (1x/2x FC)
1000BASE-SX Gigabit Ethernet support
850 nm oxide VCSEL, duplex LC connector, multimode fibre
Reach up to 500 m on 50/125 um MMF (300 m on 62.5/125 um)
Single 3.3 V supply, hot-pluggable SFP form factor
Digital diagnostic monitoring; HP OEM part 292003-001

Specifications

General
Brand	Finisar
Model	FTRJ8519P1BNL
OEM Part Number	HP 292003-001
Form Factor	SFP (hot-pluggable)
Type	Shortwave (SW), multimode
Optical
Data Rate	1.063 / 2.125 Gbps (1x/2x FC)
Ethernet Support	1000BASE-SX
Wavelength	850 nm VCSEL
Connector	Duplex LC
Max Reach	500 m on 50/125 um MMF (300 m on 62.5/125 um)
Diagnostics	Digital diagnostic monitoring
Electrical
Supply Voltage	3.3 V
Operating Temperature	0 to 50 C
