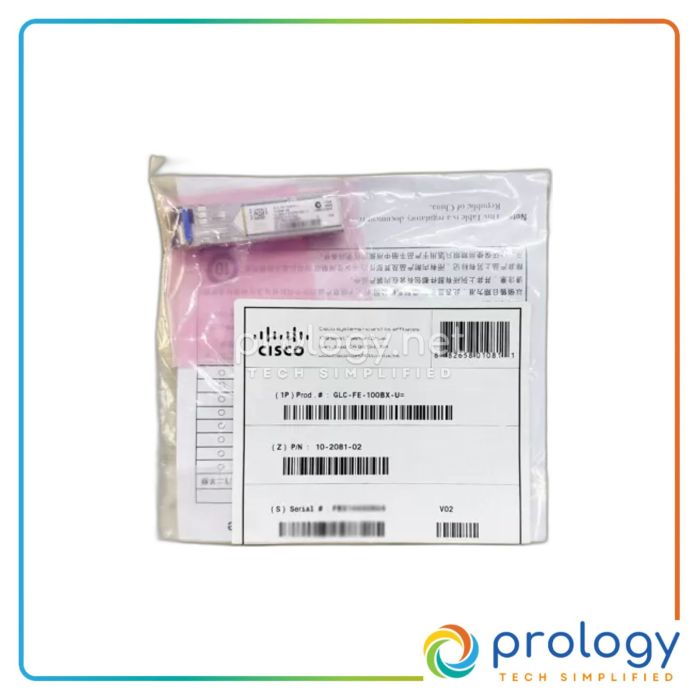

Cisco GLC-FE-100BX-U 100BASE-BX10-U SFP Transceiver Module – New | GLC-FE-100BX-U

Name: Cisco GLC-FE-100BX-U 100BASE-BX10-U SFP Transceiver Module – New | GLC-FE-100BX-U
Brand: Cisco
SKU: GLC-FE-100BX-U
Price: 131 USD
Availability: InStock
Rating: 4.2 (5 reviews)

In Stock

1 units available

SKU

GLC-FE-100BX-U-NEW

MPN

GLC-FE-100BX-U

Be the first to review this product

$131

The Cisco GLC-FE-100BX-U is a new transceiver module for Fast Ethernet SFP ports. It supports 100 Mbps data rates, operates over single-mode fiber, and has a reach of up to 10 km.

In Stock

Data Rate 100 Mbps

Max Transfer Distance 10 km

Connector Type LC Duplex

Optical Wavelength 1310 nm

Min Operating Temperature 0 °C

Max Operating Temperature 50 °C

Request a quote or add to cart — pricing available on enquiry for refurbished stock.

For international customers, please contact us for personalised support and assistance.

Request Quote / Enquire

180-Days Warranty

Secure Checkout

Free Delivery US

Dispatch in 1–2 Business Days

Add to Wish List Add to Compare

Description

Cisco · Transceiver Modules

GLC-FE-100BX-U 100BASE-BX10-U SFP Transceiver Module New

Optimized for Fast Ethernet applications with a 10 km reach.

Overview

The Cisco GLC-FE-100BX-U is a 100BASE-BX10-U downstream transceiver module designed for Fast Ethernet SFP ports. This hot-swappable input/output device plugs into an Ethernet SFP port of a Cisco switch or router to link the port with the network. Optimized for high-speed data transmission, it supports bidirectional operation on a single fiber using separate wavelengths. The module is compatible with a single-mode fiber spanning up to 10 kilometers, providing a practical solution for extending network reach without sacrificing performance.

Key Features

Fast Ethernet Support: Supports data rates of 100 Mbps.
Long Distance Capability: Operates over single-mode fiber up to 10 km.
Hot-Swappable: Allows for minimal network disruption during installation.
Compact Form Factor: SFP (mini-GBIC) design for easy integration.
Wavelength-Division Multiplexing: Utilizes WDM technology for enhanced performance.
Duplex LC Connector: Standard interface for easy connectivity.
Extended Operating Temperature: Functions within a range of 0 °C to 50 °C.
IEEE Compliance: Meets IEEE 802.3 and IEEE 802.3ah standards.

Specifications

General
Device Type	SFP (mini-GBIC) transceiver module
Form Factor	Plug-in module
Ports & PoE
Compatible Slots	1 x SFP (mini-GBIC)
Performance
Data Link Protocol	100Mb LAN
Max Transfer Distance	10 km
Physical
Width	1.34 cm
Depth	5.65 cm
Height	8.5 mm
Environmental
Min Operating Temperature	0 °C
Max Operating Temperature	50 °C
Compliance
Compliant Standards	IEEE 802.3, IEEE 802.3ah

Documents

Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.

Reviews

Write Your Own Review

You're reviewing:Cisco GLC-FE-100BX-U 100BASE-BX10-U SFP Transceiver Module – New | GLC-FE-100BX-U

Your Rating

Price

1 star 2 stars 3 stars 4 stars 5 stars

Nickname

Summary

Review

FAQ

Common questions about the Cisco GLC-FE-100BX-U 100BASE-BX10-U SFP Transceiver Module – New | GLC-FE-100BX-U.

What is the maximum distance supported by the GLC-FE-100BX-U?

The GLC-FE-100BX-U supports a maximum distance of 10 km over single-mode fiber.

Is the GLC-FE-100BX-U hot-swappable?

Yes, the GLC-FE-100BX-U is designed to be hot-swappable, allowing for easy replacement without network disruption.

What type of fiber does the GLC-FE-100BX-U use?

The GLC-FE-100BX-U is compatible with single-mode fiber.

What is the operating temperature range for the GLC-FE-100BX-U?

The operating temperature range for the GLC-FE-100BX-U is 0 °C to 50 °C.

Which standards does the GLC-FE-100BX-U comply with?

The GLC-FE-100BX-U complies with IEEE 802.3 and IEEE 802.3ah standards.

What is the data rate supported by the GLC-FE-100BX-U?

The GLC-FE-100BX-U supports a data rate of 100 Mbps.
