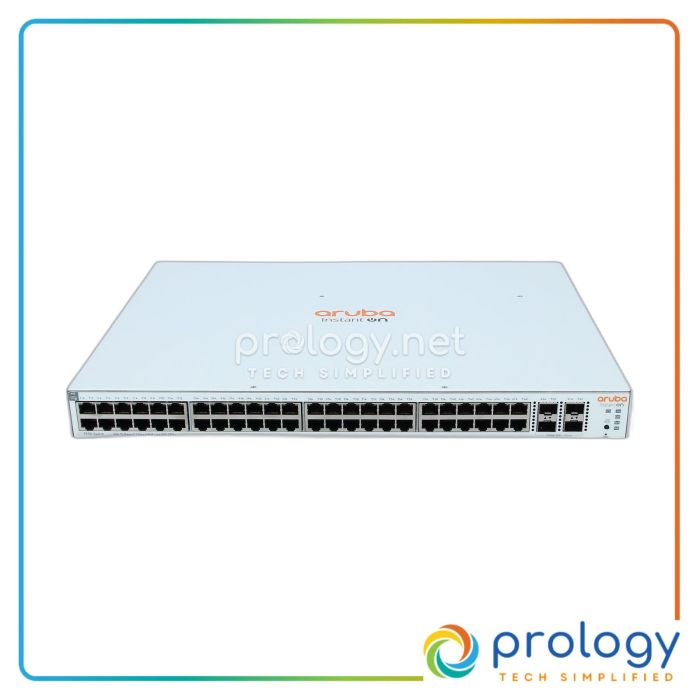

Aruba Instant On 1930 48-Port Gigabit Class4 PoE 370W Switch – Refurbished | JL686A
In Stock — Ready to Ship
1 units available
SKU
JL686A-REFURBISHED
MPN
JL686A
$1,462
The Aruba Instant On 1930 48G Class4 PoE switch is refurbished and ideal for small businesses. It features 48 PoE ports, 370W PoE budget, and a switching capacity of 176 Gbps.
In Stock — Ready To Ship
Device Type
Switch - 52 ports - L3 - Managed
Authentication Method
RADIUS
PoE Ports
48 x 10/100/1000 Base-T RJ-45
PoE Budget
370 W
Uplink Ports
4 x 1/10Gbit SFP+
Switching Capacity
176 Gbps
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery US
Dispatch in 1–2 Business Days
Aruba · Instant On 1930 Series
JL686A 48-Port Gigabit Class4 PoE Switch Refurbished
Designed for small businesses needing reliable performance.
Overview
The Aruba Instant On 1930 48G Class4 PoE switch is a smart-managed, fixed configuration Gigabit switch tailored for small businesses. It efficiently handles bandwidth-heavy applications such as voice and video conferencing, ensuring consistent connectivity and performance. With its advanced features, it is easy to deploy and manage, making it a suitable choice for modern networking needs.
Key Features
- PoE Budget: 370W Class4 PoE to power devices like IP phones and cameras.
- Switching Capacity: 176 Gbps for high-performance networking.
- Ports: 48 x 10/100/1000 Base-T RJ-45 PoE ports.
- SFP+ Uplinks: 4 x 1/10Gbit SFP+ ports for flexible connectivity.
- Memory: 512 MB SDRAM and 256 MB flash for efficient operation.
- Management Protocols: Supports SNMP, HTTP, HTTPS, and RADIUS.
- Environmental Compliance: Operates in a wide temperature range with high humidity tolerance.
- Security Features: Includes RADIUS authentication and access control lists.
Specifications
| General | |
|---|---|
| Device Type | Switch - 52 ports - L3 - Managed |
| Authentication Method | RADIUS |
| Ports & PoE | |
| PoE Ports | 48 x 10/100/1000 Base-T RJ-45 |
| PoE Budget | 370 W |
| Uplink Ports | 4 x 1/10Gbit SFP+ |
| Performance & Capacity | |
| Switching Capacity | 176 Gbps |
| Throughput | 130.95 Mpps |
| Latency (1 Gbps) | 2.2 µs |
| Latency (10 Gbps) | 1.2 µs |
| Memory | |
| RAM | 512 MB SDRAM |
| Flash Memory | 256 MB |
| Layer & Routing | |
| IPv4 Routes (Static) | 32 |
| VLANs Supported | 256 |
| Access Control Entries (ACEs) per ACL | 480 |
| Power | |
| Power Consumption (Operational) | 460 W |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Physical | |
| Width | 44.25 cm |
| Depth | 32.26 cm |
| Height | 4.39 cm |
| Weight | 4.52 kg |
| Environmental | |
| Operating Humidity Range | 15 - 95% (40 °C) |
| Storage Humidity Range | 15 - 95% (60 °C) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Compliance | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Aruba Instant On 1930 48-Port Gigabit Class4 PoE 370W Switch – Refurbished | JL686A.
The JL686A has a PoE budget of 370W, suitable for powering multiple devices.
The JL686A features 48 x 10/100/1000 Base-T RJ-45 PoE ports.
The switching capacity of the JL686A is 176 Gbps.
Yes, the JL686A supports up to 256 VLANs.
The maximum operating temperature for the JL686A is 40 °C.
The JL686A supports SNMP, HTTP, HTTPS, and RADIUS management protocols.
