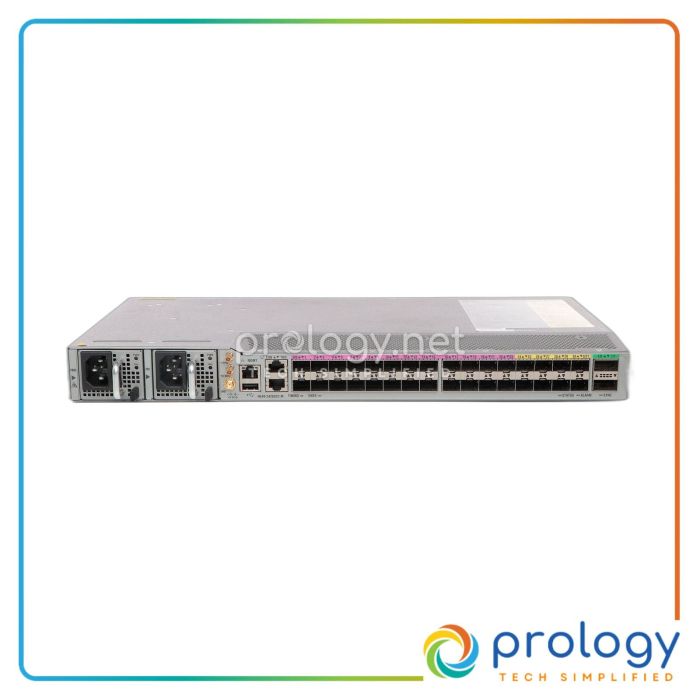

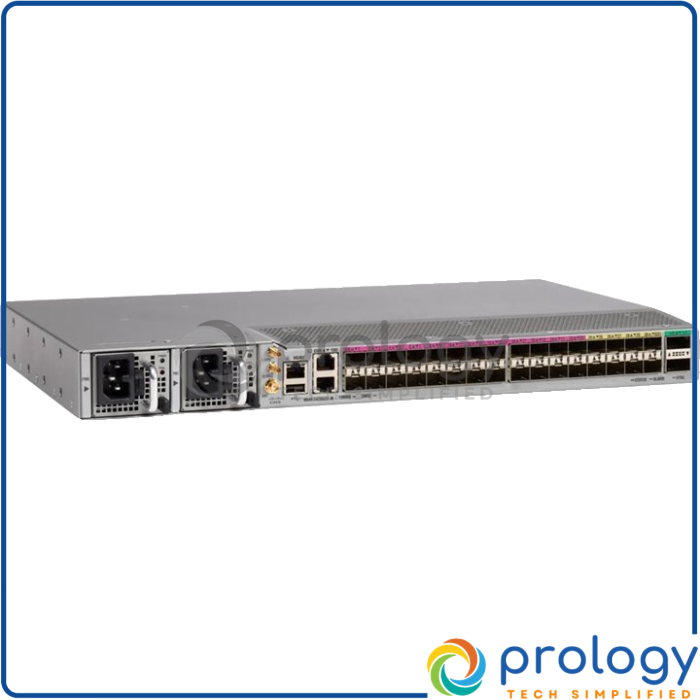

main product photo

Cisco N540-24Z8Q2C-SYS 24-Port 10GE Router Chassis – Refurbished | N540-24Z8Q2C-SYS

In Stock
1 units available
SKU
N540-24Z8Q2C-SYS-REFURBISHED
MPN
N540-24Z8Q2C-SYS
Be the first to review this product
$7,544
The Cisco N540-24Z8Q2C-SYS is a refurbished high-performance router chassis for service providers. It features 24x 1/10GE ports, 8x 10/25GE ports, and 2x 100GE ports.
In Stock
Device Type Router
Enclosure Type Front to back airflow rack-mountable - 1U
Ports 24 x 10Gb Ethernet / 1Gb Ethernet, 8 x 10Gb Ethernet / 25Gb Ethernet, 2 x 40Gb Ethernet / 100Gb Ethernet
Forwarding Performance Up to 300 Mpps
Latency 10 µs
RAM 32 GB

Request a quote or add to cart — pricing available on enquiry for refurbished stock.

For international customers, please contact us for personalised support and assistance.

Request Quote / Enquire
180-Days Warranty
Secure Checkout
Free Delivery US
Dispatch in 1–2 Business Days
Add to Wish List Add to Compare
Cisco · NCS 500 Series
N540-24Z8Q2C-SYS 24-Port 10GE Router Chassis Refurbished
High-performance chassis designed for modern data centers.
Overview
The Cisco N540-24Z8Q2C-SYS is a robust router chassis tailored for service providers and large-scale enterprises. This device is part of the NCS 500 Series, which is known for its high availability and secure access-routing capabilities. It supports advanced technologies such as 5G and Carrier Ethernet, making it suitable for the evolving demands of modern networks.
Key Features
  • High-density Ports: Equipped with 24 SFP+ ports for 1/10GE connectivity.
  • Enhanced Performance: Includes 8x 10/25GE and 2x 100GE ports for high throughput.
  • Compact Design: 1U rack-mountable chassis ideal for space-constrained environments.
  • Carrier-class Reliability: Designed for 99.999% uptime and high availability.
  • Advanced Routing Protocols: Supports BGP, OSPF, and IS-IS for efficient routing.
  • Programmable Network: Powered by Cisco IOS XR for future-proof capabilities.
  • Robust Security: Features MACsec and hardware-based encryption for secure operations.
Specifications
General
Device TypeRouter
Enclosure TypeFront to back airflow rack-mountable - 1U
Ports & PoE
Ports24 x 10Gb Ethernet / 1Gb Ethernet, 8 x 10Gb Ethernet / 25Gb Ethernet, 2 x 40Gb Ethernet / 100Gb Ethernet
Performance & Capacity
Forwarding PerformanceUp to 300 Mpps
Latency10 µs
Memory
RAM32 GB
Flash Memory128 GB
Layer & Routing
Routing ProtocolsOSPF, BGP, VRRP, OSPFv2, PIM-SM, IGMPv3, OSPFv3, PIM-SSM, ECMP, MLDv2, IS-ISv6, MPLS, mLDP
Power
Power SupplyDual redundant power supplies
Physical
Width17.3 in
Depth10.1 in
Height1.7 in
Weight13.01 lbs
Environmental
Operating Temperature-40 °F to 158 °F
Humidity Range5 - 95% (non-condensing)
Compliance
Compliant StandardsIEEE 802.1Q, IEEE 802.1ad, MEF 3.0, RoHS 6/6, UL 60950-1 Second Edition, and more.

Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.

Reviews
Write Your Own Review
You're reviewing:Cisco N540-24Z8Q2C-SYS 24-Port 10GE Router Chassis – Refurbished | N540-24Z8Q2C-SYS
Your Rating
FAQ

Common questions about the Cisco N540-24Z8Q2C-SYS 24-Port 10GE Router Chassis – Refurbished | N540-24Z8Q2C-SYS.

The maximum operating temperature is 158 °F.
It has 34 expansion slots.
It supports OSPF, BGP, VRRP, and IS-IS among others.
The weight is 13.01 lbs.
Yes, it supports jumbo frames up to 9216 bytes.
It supports SNMP, NETCONF, JSON, YANG, GPB, and XML.
