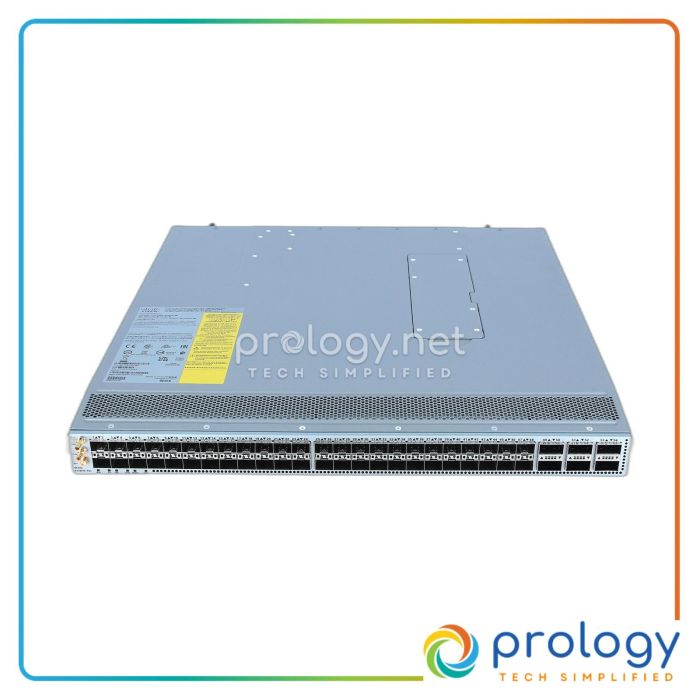

Cisco Nexus 93180YC-FX3 48-Port 1/10/25G Ethernet Switch – New | N9K-C93180YC-FX3
In Stock — Ready to Ship
1 units available
SKU
N9K-C93180YC-FX3-NEW
MPN
N9K-C93180YC-FX3
$11,550
The Cisco Nexus 93180YC-FX3 is a new managed switch ideal for data centers. It features 48 ports supporting 1/10/25G Ethernet and 6 ports for 40/100G uplinks.
In Stock — Ready To Ship
Switching Capacity
3.6 Tbps
Downlink Ports
48 x 1/10/25G SFP+
Uplink Ports
6 x 40/100G QSFP28
Forwarding Rate
1.2 bpps
RAM
32 GB
Flash Memory
128 GB SSD
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery US
Dispatch in 1–2 Business Days
Cisco · Nexus 9300 Series
Nexus 93180YC-FX3 48-Port 1/10/25G Ethernet Switch New
High-performance switch for modern data centers.
Overview
The Cisco Nexus 93180YC-FX3 is a 1RU switch designed for high-performance data center environments. It supports a total bandwidth of 3.6 Tbps and offers flexible deployment options with its 48 downlink ports capable of 1-, 10-, or 25-Gbps Ethernet. The switch also includes 6 uplink ports configurable for 40 and 100-Gbps Ethernet, making it suitable for scalable network architectures.
Key Features
- High Bandwidth: Supports up to 3.6 Tbps of switching capacity.
- Flexible Ports: 48 x 1/10/25G SFP+ and 6 x 40/100G QSFP28 ports.
- Advanced Features: Supports PTP, SyncE, VXLAN, and EVPN.
- Robust Management: Remote management via CLI, HTTP, HTTPS, and more.
- Environmental Resilience: Operating temperature range of 32°F to 104°F.
- Compact Design: 1RU rack-mountable form factor.
Specifications
| General | |
|---|---|
| Brand | Cisco |
| Product Line | Nexus 9300 Series |
| Model | 93180YC-FX3 |
| Ports & PoE | |
| Downlink Ports | 48 x 1/10/25G SFP+ |
| Uplink Ports | 6 x 40/100G QSFP28 |
| Performance & Capacity | |
| Switching Capacity | 3.6 Tbps |
| Forwarding Rate | 1.2 bpps |
| Memory | |
| RAM | 32 GB |
| Flash Memory | 128 GB SSD |
| Layer & Routing | |
| Routing Protocols | BGP, OSPF, EIGRP, RIP-2, MPLS |
| Power | |
| Power Consumption | 375 W |
| Power Supply Type | Internal, hot-plug |
| Physical | |
| Width | 17.3 in |
| Depth | 19.5 in |
| Height | 1.7 in |
| Weight | 20.99 lbs |
| Environmental | |
| Operating Temperature | 32°F to 104°F |
| Storage Temperature | -40°F to 158°F |
| Operating Humidity | 5% to 95% (non-condensing) |
| MTBF | 288,760 hours |
| Compliance | |
| Compliant Standards | IEEE 802.1ae, RoHS, UL 60950-1, EN 55022 Class A |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco Nexus 93180YC-FX3 48-Port 1/10/25G Ethernet Switch – New | N9K-C93180YC-FX3.
The maximum bandwidth supported by the Cisco Nexus 93180YC-FX3 is 3.6 Tbps.
The switch has 48 downlink ports that support 1-, 10-, or 25-Gbps Ethernet.
Yes, the 6 uplink ports can be configured for 40 and 100-Gbps Ethernet.
The operating temperature range is from 32°F to 104°F.
The switch supports management protocols including CLI, HTTP, HTTPS, IPv6, JSON, NETCONF, and RESTCONF.
The weight of the switch is 20.99 lbs.
