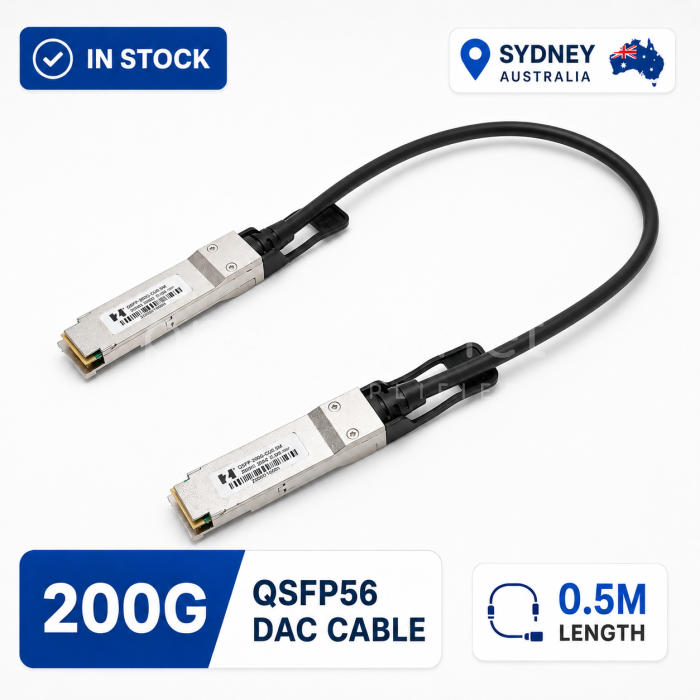

200G QSFP56 DAC Passive Copper Cable 0.5m for AI Supercomputer Compatible with ASUS GX10, MSI EdgeXpert, NVIDIA DGX Spark, Gigabyte AI Top ATOM
In Stock
1 units available
SKU
QSFP-200G-CU0.5M-NEW
MPN
QSFP-200G-CU0.5M
USD $120.00
New 0.5m 200GbE QSFP56 to QSFP56 passive Direct Attach Copper (DAC) twinax cable. 4x50G PAM4, <0.1W, ideal for interconnecting two NVIDIA DGX Spark units.
Estimate shipping cost
| Weight | Price | Service |
|---|
Reference rates for one parcel. Contact us for more details and an accurate rate.
Australia Stock - Dispatches within 5 business days
Product Type
Passive Direct Attach Copper (DAC) Cable
Model
QSFP-200G-CU0.5M
Equivalent Part
NVIDIA/Mellanox MCP1650-V00AE30
Length
0.5 m
Connectors
QSFP56 to QSFP56
Data Rate
200Gb/s (200GbE)
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery US
Dispatch in 1–2 Business Days
QSFP-200G-CU0.5M
200G QSFP56 DAC Passive Copper Cable 0.5m for AI Supercomputer Compatible with ASUS GX10, MSI EdgeXpert, NVIDIA DGX Spark, Gigabyte AI Top ATOM NEW
New 0.5m 200GbE QSFP56 to QSFP56 passive Direct Attach Copper (DAC) twinax cable. 4x50G PAM4, <0.1W, ideal for interconnecting two NVIDIA DGX Spark units.
A 0.5m 200G QSFP56 passive Direct Attach Copper (DAC) twinax cable providing a QSFP56-to-QSFP56 connection at 4x50G PAM4 for a full 200Gb/s link. Built from eight high-speed copper pairs carrying up to 50Gb/s each, it offers a low-latency, near-zero-power interconnect for short reaches, and is the recommended cable for stacking two NVIDIA DGX Spark units over their ConnectX-7 200GbE ports.
Key Features
- Type: 200G QSFP56 to QSFP56 passive DAC
- Data Rate: 200Gb/s (4x 50G PAM4)
- Length: 0.5 m short-reach twinax
- Power: Passive, < 0.1W
- Wire Gauge: 30 AWG
- Copper Pairs: 8 pairs, up to 50Gb/s each
- Compliance: QSFP56 MSA, IEEE 802.3bj / 802.3cd, RoHS
- Use: NVIDIA DGX Spark dual-unit interconnect
Documents
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
| General | |
|---|---|
| Product Type | Passive Direct Attach Copper (DAC) Cable |
| Equivalent Part | NVIDIA/Mellanox MCP1650-V00AE30 |
| Length | 0.5 m |
| Interface Performance | |
| Connectors | QSFP56 to QSFP56 |
| Data Rate | 200Gb/s (200GbE) |
| Signalling | 4x 50G PAM4 to 4x 50G PAM4 |
| Copper Pairs | 8 high-speed pairs, up to 50Gb/s each |
| Forward Error Correction | FEC performed on host platform |
| Electrical Physical | |
| Max Power Consumption | < 0.1W (passive) |
| Wire Gauge | 30 AWG |
| Min Bend Radius | 10x cable outer diameter |
| Hot Pluggable | Yes (QSFP56 MSA) |
| EEPROM | Onboard, per QSFP56 end |
| Compliance | |
| Standards | QSFP56 MSA, IEEE 802.3bj, IEEE 802.3cd |
| Environmental | RoHS compliant (lead-free) |
Write Your Own Review
Common questions about the 200G QSFP56 DAC Passive Copper Cable 0.5m for AI Supercomputer Compatible with ASUS GX10, MSI EdgeXpert, NVIDIA DGX Spark, Gigabyte AI Top ATOM.
It supports a full 200Gb/s (200GbE) link using 4x50G PAM4 signalling over a QSFP56-to-QSFP56 passive copper connection.
No. It is a passive copper cable that draws under 0.1W and requires no external power for connectivity.
Yes. This 0.5m cable is the recommended interconnect for stacking two NVIDIA DGX Spark units over their built-in NVIDIA ConnectX-7 200GbE ports.
It is hot-pluggable and compliant with the QSFP56 MSA, IEEE 802.3bj and IEEE 802.3cd standards, and is RoHS lead-free. FEC is performed on the host platform.
The 0.5m length uses 30AWG twinax copper, optimised for very short in-rack and adjacent-rack reaches.
