REFURBISHED

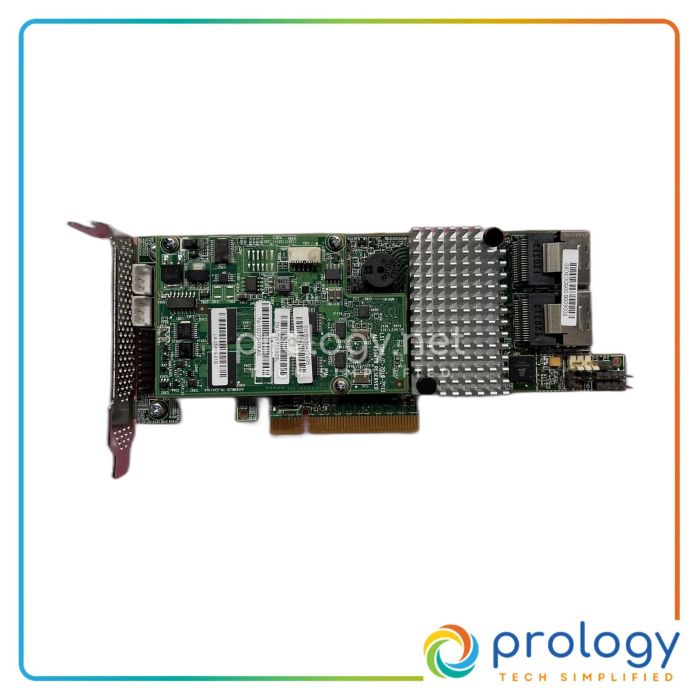

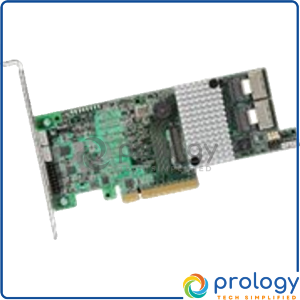

main product photo

MegaRAID 9266CV-8i 8-Port SATA/SAS Storage Controller – Refurbished | UCS-RAID-9266CV

In Stock
2 units available
SKU
UCS-RAID-9266CV-REFURBISHED
MPN
UCS-RAID-9266CV
Be the first to review this product
$112
The MegaRAID 9266CV-8i is a refurbished storage controller designed for Cisco UCS C220 M3 and C240 M3 servers. It supports up to 128 devices, 6 Gbit/s transfer rates, and features a 1 GB buffer.
In Stock
Device Type Storage controller (RAID) - plug-in card - low profile
Host Bus PCIe 2.0 x8
Processor LSI LSISAS2208 800 MHz
Compatible Slots 1 x PCI Express 2.0 x8 - low-profile
Interfaces 2 x SATA 6Gb/s / SAS 6Gb/s - 36 pin 4i Mini MultiLane (internal)
Data Transfer Rate 6 Gbit/s

Request a quote or add to cart — pricing available on enquiry for refurbished stock.

For international customers, please contact us for personalised support and assistance.

Request Quote / Enquire
180-Days Warranty
Secure Checkout
Free Delivery US
Dispatch in 1–2 Business Days
Add to Wish List Add to Compare
MegaRAID · 9266CV Series
MegaRAID 9266CV-8i 8-Port SATA/SAS Storage Controller Refurbished
High-performance storage solution for enterprise environments.
Overview
The MegaRAID 9266CV-8i is a robust storage controller designed for use in Cisco UCS C220 M3 and C240 M3 rack-mount servers. It features the LSI LSISAS2208 processor, enabling efficient RAID configurations and high data transfer rates. With support for up to 128 storage devices, it is ideal for demanding enterprise applications.
Key Features
  • Processor: LSI LSISAS2208 at 800 MHz for high performance.
  • Buffer Size: 1 GB for efficient data handling.
  • Data Transfer Rate: Up to 6 Gbit/s for rapid data access.
  • RAID Levels: Supports RAID 0, 1, 5, 6, 10, 50, 60 for flexible storage configurations.
  • Expansion Slots: 1 x PCI Express 2.0 x8 - low-profile for easy integration.
  • Max Storage Devices: Supports up to 128 devices for extensive storage needs.
  • Environmental Compliance: FCC Class B, UL, and other certifications ensure reliability.
Specifications
General
Device TypeStorage controller (RAID) - plug-in card - low profile
Host BusPCIe 2.0 x8
ProcessorLSI LSISAS2208 800 MHz
Ports & PoE
Compatible Slots1 x PCI Express 2.0 x8 - low-profile
Interfaces2 x SATA 6Gb/s / SAS 6Gb/s - 36 pin 4i Mini MultiLane (internal)
Performance
Data Transfer Rate6 Gbit/s
Max Storage Devices Qty128
RAID LevelRAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
Memory
Buffer Size1 GB
Physical
Depth16.8 cm
Height6.9 cm
Environmental
Max Operating Temperature45 °C
MTBF1,031,514 hours
Compliance
Compliant StandardsFCC Class B certified, FCC Class A certified, UL, VCCI, C-Tick, BSMI, EN 60950, EN 61000-3-2, EN55022, RRL, UL 1950, EN 61000-3-3, EN55024, CSA C22.2

Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.

Reviews
Write Your Own Review
You're reviewing:MegaRAID 9266CV-8i 8-Port SATA/SAS Storage Controller – Refurbished | UCS-RAID-9266CV
Your Rating
FAQ

Common questions about the MegaRAID 9266CV-8i 8-Port SATA/SAS Storage Controller – Refurbished | UCS-RAID-9266CV.

The MegaRAID 9266CV-8i supports RAID 0, 1, 5, 6, 10, 50, and 60.
It is specifically designed for Cisco UCS C220 M3 and C240 M3 rack-mount servers.
The controller supports up to 128 storage devices.
It offers a data transfer rate of up to 6 Gbit/s.
It uses SATA 6Gb/s and SAS 6Gb/s interfaces.
The buffer size is 1 GB.
Documents

No documents available for this product yet.
