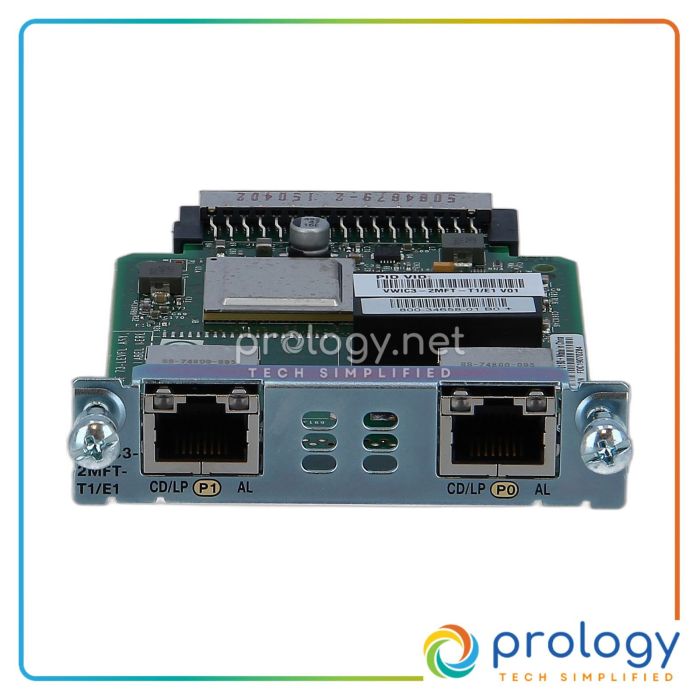

Cisco VWIC3-2MFT-T1/E1 2-Port WAN Interface Card – Refurbished | VWIC3-2MFT-T1/E1
In Stock — Ready to Ship
4 units available
SKU
VWIC3-2MFT-T1/E1-REFURBISHED
MPN
VWIC3-2MFT-T1/E1
$46
The Cisco VWIC3-2MFT-T1/E1 is a refurbished WAN interface card designed for voice and data integration. It features dual T1/E1 ports, a data transfer rate of 2.048 Mbps, and integrated CSU/DSU.
In Stock — Ready To Ship
General
- Device Type: Expansion module
- Form Factor: Plug-in module
Ports & PoE
- Networking Ports: T1/E1 x 2
Performance
- Data Transfer Rate: 2.048 Mbps
- Line Rate: T-1/E-1
- Line Coding Format: AMI, B8ZS, HDB3
Physical
- Width: 3.1 in
- Depth: 4.7 in
- Height: 0.8 in
- Weight: 3.03 oz
Environmental
- Min Operating Temperature: 32 °F
- Max Operating Temperature: 104 °F
- Humidity Range Operating: 5 - 85% (non-condensing)
Compliance
- Compliant Standards: CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, JATE, ICES-003 Class A, CS-03, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, EN 61000-4-8, IEC 60950-1, EN 60950-1, AS/NZS 3548 Class A, AS/NZS 60950, TIA/EIA-968-A, TBR4, TBR12, TBR13, GR-1089-CORE, CAN/CSA C22.2 No. 60950, VCCI Class A, GR-63-CORE, EN 300386, ANSI T1.403
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery US
Dispatch in 1–2 Business Days
Cisco · VWIC3 Series
VWIC3-2MFT-T1/E1 2-Port WAN Interface Card Refurbished
Versatile WAN interface for integrated voice and data solutions.
Overview
The Cisco VWIC3-2MFT-T1/E1 is a multifunctional WAN interface card that combines voice and data capabilities. It supports T1/E1 connections, allowing for flexible deployment in various network environments. This card is ideal for businesses looking to integrate voice and data services efficiently.
Key Features
- Dual T1/E1 Ports: Provides two ports for WAN connectivity.
- Data Transfer Rate: Supports a maximum data rate of 2.048 Mbps.
- Integrated CSU/DSU: Built-in channel service unit/data service unit functionality.
- Remote Management: Supports SNMP, Telnet, and CLI protocols for management.
- Line Coding Formats: Compatible with AMI, B8ZS, and HDB3 coding formats.
- Compliant Standards: Meets G.703, G.704, and ITU-T G.823 standards.
- Compact Design: Plug-in module form factor for easy installation.
Specifications
| GENERAL | |
|---|---|
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| PORTS & POE | |
| Networking Ports | T1/E1 x 2 |
| PERFORMANCE | |
| Data Transfer Rate | 2.048 Mbps |
| Line Rate | T-1/E-1 |
| Line Coding Format | AMI, B8ZS, HDB3 |
| PHYSICAL | |
| Width | 3.1 in |
| Depth | 4.7 in |
| Height | 0.8 in |
| Weight | 3.03 oz |
| ENVIRONMENTAL | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 85% (non-condensing) |
| COMPLIANCE | |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, JATE, ICES-003 Class A, CS-03, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, EN 61000-4-8, IEC 60950-1, EN 60950-1, AS/NZS 3548 Class A, AS/NZS 60950, TIA/EIA-968-A, TBR4, TBR12, TBR13, GR-1089-CORE, CAN/CSA C22.2 No. 60950, VCCI Class A, GR-63-CORE, EN 300386, ANSI T1.403 |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco VWIC3-2MFT-T1/E1 2-Port WAN Interface Card – Refurbished | VWIC3-2MFT-T1/E1.
The maximum data transfer rate is 2.048 Mbps.
This card supports two T1/E1 ports.
It supports AMI, B8ZS, and HDB3 line coding formats.
Yes, it is designed for integrated voice and data applications.
The form factor is a plug-in module.
The operating temperature ranges from 32 °F to 104 °F.
