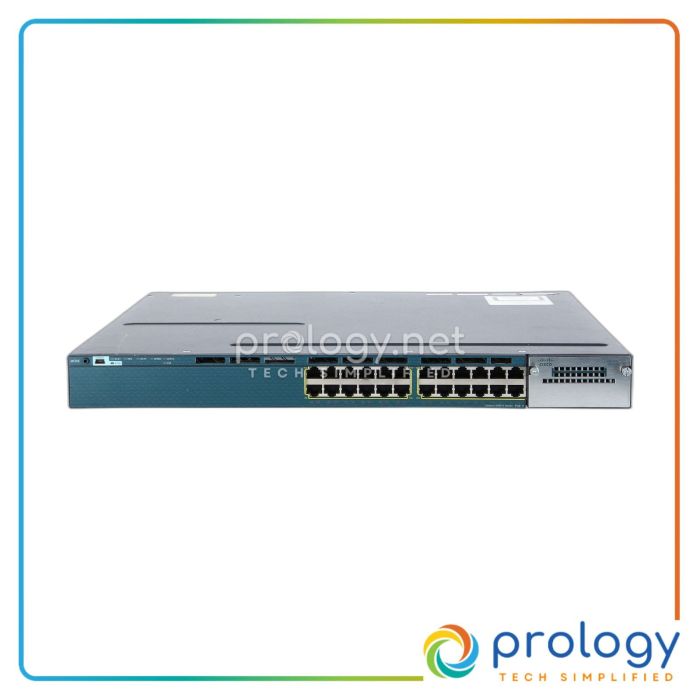

Cisco Catalyst 3560X 24-Port PoE+ IP Base Switch – Refurbished | WS-C3560X-24P-S
In Stock — Ready to Ship
3 units available
SKU
WS-C3560X-24P-S-REFURBISHED
MPN
WS-C3560X-24P-S
$205
The Cisco Catalyst 3560-X is a refurbished 24-port switch ideal for enterprises. It features PoE+, 160 Gbps switching capacity, and supports up to 1005 VLANs.
In Stock — Ready To Ship
Device Type
Switch - 24 ports - Managed
Enclosure Type
Rack-mountable 1U
Ports
24 x 10/100/1000 (PoE+)
PoE Budget
435W
Switching Capacity
160 Gbps
Forwarding Rate
65.5 Mpps
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery US
Dispatch in 1–2 Business Days
Cisco · Catalyst 3560 Series
WS-C3560X-24P-S 24-Port PoE+ Switch Refurbished
Designed for enterprise applications and advanced traffic management.
Overview
The Cisco Catalyst 3560-X is an enterprise-class standalone switch that enhances productivity through advanced features. It supports applications such as IP telephony and video, providing a borderless network experience. This switch is designed for ease of operation and energy efficiency.
Key Features
- Power over Ethernet (PoE+): Delivers up to 30W per port for powered devices.
- Switching Capacity: Offers 160 Gbps switching fabric bandwidth.
- VLAN Support: Supports up to 1005 virtual interfaces.
- Hot Swappable: Modules and fans can be replaced without powering down.
- Redundant Power Supply: Supports optional power redundancy for reliability.
- Jumbo Frame Support: Handles frames up to 9216 bytes for efficient data transfer.
- Management Protocols: Compatible with SNMP, SSH, and Telnet for remote management.
- Environmental Compliance: Meets multiple international standards for safety and performance.
Specifications
| General | |
|---|---|
| Device Type | Switch - 24 ports - Managed |
| Enclosure Type | Rack-mountable 1U |
| Ports & PoE | |
| Ports | 24 x 10/100/1000 (PoE+) |
| PoE Budget | 435W |
| Performance & Capacity | |
| Switching Capacity | 160 Gbps |
| Forwarding Rate | 65.5 Mpps |
| VLANs | 1005 |
| Memory | |
| RAM | 256 MB |
| Flash Memory | 128 MB |
| Layer & Routing | |
| Routing Protocols | RIP-1, RIP-2, HSRP, static IP routing, RIPng |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Physical | |
| Width | 44.5 cm |
| Depth | 46 cm |
| Height | 4.5 cm |
| Weight | 7.1 kg |
| Environmental | |
| Operating Humidity | 5 - 95% (non-condensing) |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 70 °C |
| MTBF | 181,370 hours |
| Compliance | |
| Compliant Standards | TUV GS, CISPR 22 Class A, RoHS, UL 60950-1, IEC 60950-1 |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco Catalyst 3560X 24-Port PoE+ IP Base Switch – Refurbished | WS-C3560X-24P-S.
The maximum power output per port is 30W with PoE+.
This switch can support up to 1005 VLANs.
No, the Cisco Catalyst 3560X is not stackable.
The switching capacity is 160 Gbps.
Yes, it supports SNMP, SSH, and Telnet for remote management.
The operating temperature range is -5 °C to 70 °C.
No documents available for this product yet.
