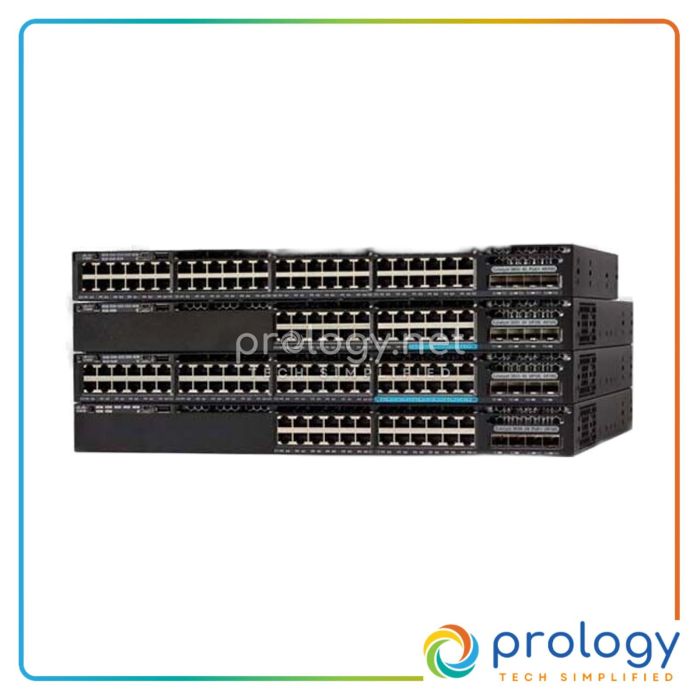

Cisco Catalyst 3650 48-Port UPOE IP Services Switch – Refurbished | WS-C3650-12X48UQ-E
In Stock — Ready to Ship
1 units available
SKU
WS-C3650-12X48UQ-E-REFURBISHED
MPN
WS-C3650-12X48UQ-E
$1,956
The Cisco WS-C3650-12X48UQ-E is a refurbished 48-port switch for enterprise networks. It features 36 Gigabit UPOE ports, 12 multi-rate ports, and 4x10G uplink ports.
In Stock — Ready To Ship
Device Type
Switch - 48 ports - L3 - managed - stackable
Enclosure Type
Desktop, rack-mountable 1U
Total Ports
48
RJ-45 Ports
36 x 10/100/1000 (UPOE)
Multi-Gigabit Ports
12 x 100/1000/2.5G/5G/10G (UPOE)
Uplink Ports
4 x 10G SFP+
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery US
Dispatch in 1–2 Business Days
Cisco · Catalyst 3650 Series
WS-C3650-12X48UQ-E 48-Port UPOE Switch Refurbished
Ideal for enterprise networks with advanced Layer 3 features.
Overview
The Cisco WS-C3650-12X48UQ-E is a high-performance standalone switch designed for enterprise networks. It leverages Cisco's advanced StackWise technology and Unified Access Data Plane (UADP) ASIC for seamless wired and wireless convergence. This model is equipped with 48 Ethernet ports, including 36 10/100/1000 Gigabit ports and 12 multi-rate ports ranging from 100Mbps to 10Gbps, ensuring high-speed connectivity and efficient traffic management.
Key Features
- Stackable Architecture: Supports up to 9 switches per stack for flexible network expansion.
- Power over Ethernet: Provides UPOE with a budget of 660W for powering devices.
- High Switching Capacity: Delivers 272 Gbps switching capacity for robust performance.
- Advanced Security Features: Includes encrypted traffic visibility and Layer 3 routing capabilities.
- Compact Design: 1U rack-mountable form factor for space-efficient deployment.
- Environmental Resilience: Operates in temperatures from -5 °C to 45 °C with a humidity range of 5-96%.
- Extensive Management Protocols: Supports SNMP, RMON, and SSH for comprehensive network management.
Specifications
| General | |
|---|---|
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Ports & PoE | |
| Total Ports | 48 |
| RJ-45 Ports | 36 x 10/100/1000 (UPOE) |
| Multi-Gigabit Ports | 12 x 100/1000/2.5G/5G/10G (UPOE) |
| Uplink Ports | 4 x 10G SFP+ |
| Power Over Ethernet (PoE) | UPOE |
| PoE Budget | 660 W |
| Performance & Capacity | |
| Switching Capacity | 272 Gbps |
| Forwarding Performance | 202.38 Mpps |
| Stacking Bandwidth | 160 Gbps |
| Memory | |
| RAM | 4 GB |
| Flash Memory | 4 GB |
| Layer & Routing | |
| Routing Protocols | BGP-4, IS-IS, RIP-1, RIP-2, PIM-SM, static IP routing, PIM-DM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng |
| Stacking | |
| Expansion Slots | 1 (total) / 1 (free) x Stacking Module |
| Interfaces & Connectivity | |
| Management Interfaces | 1 x USB Type A, 1 x serial (console) RJ-45, 1 x management (Gigabit LAN) RJ-45, 1 x management (mini-USB) |
| Power | |
| Power Supply | 1100 W AC |
| Physical | |
| Width | 44.5 cm |
| Depth | 48.6 cm |
| Height | 4.4 cm |
| Weight | 7.58 kg |
| Environmental | |
| Operating Temperature | -5 °C to 45 °C |
| Storage Temperature | -40 °C to 70 °C |
| Humidity Range | 5 - 96% (non-condensing) |
| MTBF | 203,130 hours |
| Compliance | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco Catalyst 3650 48-Port UPOE IP Services Switch – Refurbished | WS-C3650-12X48UQ-E.
The WS-C3650-12X48UQ-E supports stacking of up to 9 switches.
The switch has a PoE budget of 660W, allowing it to power multiple devices.
It features 4 x 10G SFP+ uplink ports for high-speed connectivity.
Yes, the WS-C3650-12X48UQ-E supports IPv6 along with various Layer 3 routing protocols.
The maximum operating temperature is 45 °C.
The switch can manage up to 32,000 MAC address entries.
