Cisco Catalyst 6500 48-Port PoE 802.3af Switch – Refurbished | WS-X6148A-GE-45AF
In Stock — Ready to Ship
2 units available
SKU
WS-X6148A-GE-45AF-REFURBISHED
MPN
WS-X6148A-GE-45AF
$231

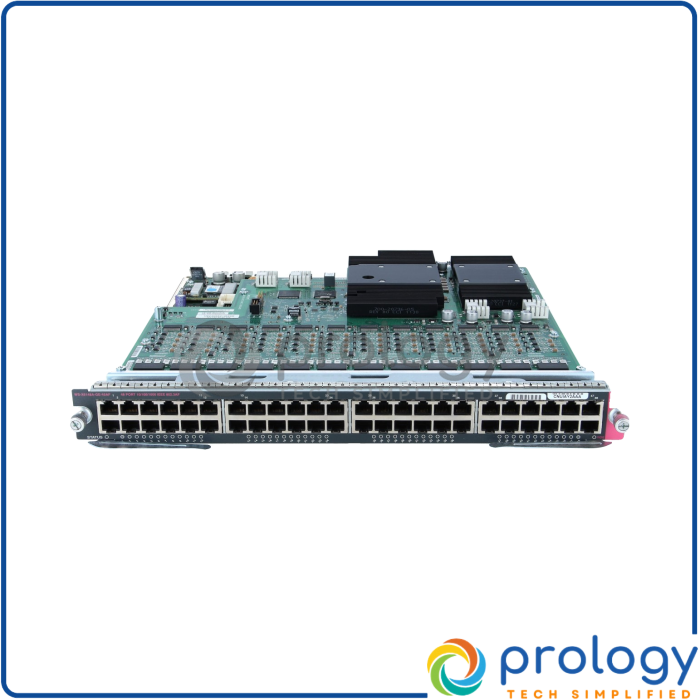

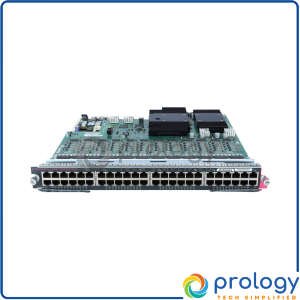

The Cisco WS-X6148A-GE-45AF is a refurbished 48-port PoE module for Catalyst 6500 series switches. It supports 10/100/1000 Mbps speeds, with a maximum power per port of 15.4W.
In Stock — Ready To Ship
Model
WS-X6148A-GE-45AF
Condition
Refurbished
Port Count
48
Port Speed
10/100/1000 Mbps
PoE Support
Yes, IEEE 802.3af
Maximum Power per Port
15.4W
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery US
Dispatch in 1–2 Business Days
Cisco · Catalyst 6500 Series
WS-X6148A-GE-45AF 48-Port PoE Switch Refurbished
Ideal for powering IP devices in enterprise networks.
Overview
The WS-X6148A-GE-45AF is a high-performance expansion module designed for the Catalyst 6500 series switches. It features 48 ports that support both Power over Ethernet (PoE) and Gigabit Ethernet connectivity, making it suitable for deploying voice, video, and data applications. Each port automatically selects between 10/100/1000 Mbps network speeds, providing flexible configuration options.
Key Features
- Port Count: 48 ports for high-density connectivity.
- PoE Support: Compliant with IEEE 802.3af, delivering power and data over a single cable.
- Maximum Power per Port: 15.4W for powering devices like IP phones.
- Speed: Supports 10/100/1000 Mbps for versatile network configurations.
- Jumbo Frame Support: Up to 9216 bytes for enhanced performance.
- Hot-Swappable: Allows for maintenance without downtime.
- Dimensions: Compact design for easy integration into existing setups.
Specifications
| General | |
|---|---|
| Model | WS-X6148A-GE-45AF |
| Condition | Refurbished |
| Ports & PoE | |
| Port Count | 48 |
| Port Speed | 10/100/1000 Mbps |
| PoE Support | Yes, IEEE 802.3af |
| Maximum Power per Port | 15.4W |
| Performance & Capacity | |
| Switch Fabric Bandwidth | 32 Gbps |
| Forwarding Rate | 15 Mpps |
| Physical | |
| Width | 15.3 in (39.0 cm) |
| Depth | 16.0 in (40.6 cm) |
| Height | 1.2 in (3.0 cm) |
| Weight | 7.4 lbs (3.35 kg) |
| Environmental | |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -40°F to 167°F (-40°C to 75°C) |
| Relative Humidity | 10% to 95%, non-condensing |
| Compliance | |
| EMC Standards | FCC Part 15 Class A, ICES-003 Class A, VCCI Class A |
Documents
- End-of-Sale and End-of-Life Announcement for the Cisco IOS Software Release 12.2(18)SXF for the Cisco Catalyst 6500 Series
- End-of-Sale and End-of-Life Announcement for the Cisco IOS Software Release 15.1(2)SY for the Cisco Catalyst 6500 Series Switches
- End-of-Sale and End-of-Life Announcement for the Cisco IOS Software Release 15.2(1)SY for Cisco Catalyst 6500 Series Switches
- End-of-Sale and End-of-Life Announcement for the Cisco IOS Software Release 15.2(2)SY for Cisco Catalyst 6500 Series Switches
- End-of-Sale and End-of-Life Announcement for the Cisco IOS Software Release 15.3(1)SY for Cisco Catalyst 6500 Series Switches
- Ethernet Services Plus Line Cards on Cisco Catalyst 6500 Series Switches Data Sheet
- Cisco Catalyst 6500 Series Mixed Media Gigabit Ethernet Modules
- 6000-WATT AC Power Supply for the Cisco Catalyst 6500 Series Chassis
- Cisco 7600 Series/Catalyst 6500 Series Services SPA Carrier-400
- Cisco Catalyst 6900 Series 40 Gigabit Ethernet Interface Module for Cisco Catalyst 6500 Series Switches Data Sheet
- Cisco Catalyst 6500 Series VPN Services Port Adapter
- Cisco Catalyst 6500 Series Supervisor Engine 2T Data Sheet
- Cisco Catalyst 6500 Series 10/100- & 10/100/1000-MBPS Ethernet Interface Modules Data Sheet
- Cisco Catalyst 6500 Series 10 Gigabit Ethernet Interface Modules Data Sheet
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco Catalyst 6500 48-Port PoE 802.3af Switch – Refurbished | WS-X6148A-GE-45AF.
The maximum power output per port is 15.4W.
Yes, it supports IEEE 802.3af PoE devices.
It supports jumbo frames up to 9216 bytes.
Yes, the WS-X6148A-GE-45AF is designed to be hot-swappable.
The operating temperature range is 32°F to 104°F (0°C to 40°C).
This module has 48 ports.
