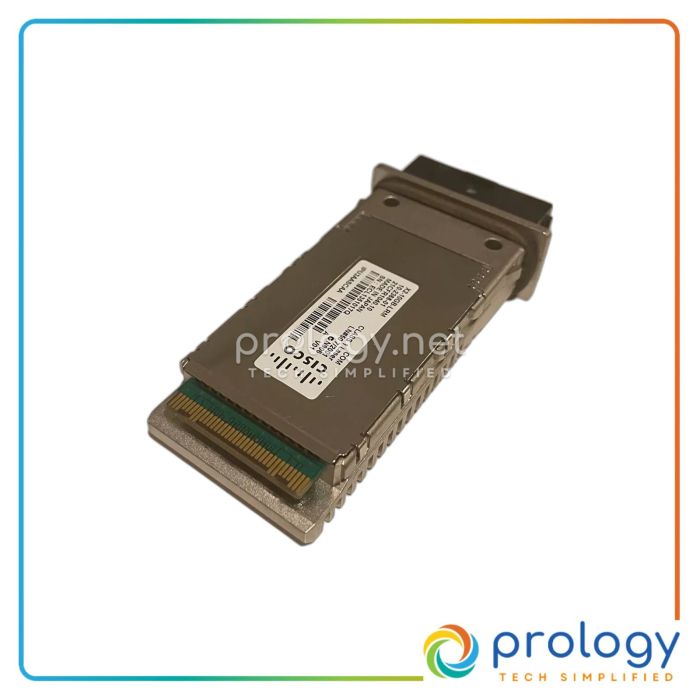

Cisco X2 10-Port 10GBASE-LR Transceiver Module – Refurbished | X2-10GB-LR
In Stock — Ready to Ship
10 units available
SKU
X2-10GB-LR-REFURBISHED
MPN
X2-10GB-LR
$46
The Cisco X2-10GB-LR is a refurbished 10 Gigabit transceiver module for data centers. It supports 10 km distance, 1310 nm wavelength, and operates over single-mode fiber.
In Stock — Ready To Ship
Device Type
X2 transceiver module
Form Factor
Plug-in module
Interfaces
1 x Ethernet 10GBase-LR - SC/PC single-mode x 2
Data Link Protocol
10 GigE
Max Transfer Distance
10 km
Optical Wave Length
1310 nm
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery US
Dispatch in 1–2 Business Days
Cisco · X2 Series
X2-10GB-LR 10-Port 10GBASE-LR Transceiver Module Refurbished
High-performance transceiver for long-range Ethernet applications.
Overview
The Cisco X2-10GB-LR is a high-performance 10 Gigabit transceiver module designed for long-range Ethernet applications. This plug-in module integrates seamlessly with Cisco networking equipment, providing a robust and reliable solution for extending network reach. It supports a 10 gigabit Ethernet transmission rate over single-mode fiber with a standard SC duplex connector, making it suitable for large-scale data centers and enterprise networks that require increased bandwidth over extended distances.
Key Features
- 10 Gigabit Ethernet Support: Designed for high-speed data transmission.
- Long-Range Capability: Operates effectively up to 10 kilometers.
- Single-Mode Fiber: Utilizes SC duplex connector for minimal signal loss.
- Hot-Swappable: Allows for easy deployment and replacement.
- Compact Form Factor: Ideal for high-density applications.
- Digital Optical Monitoring: Supports optical signal monitoring for performance management.
- Power Consumption: Operates at 4.5W for efficient energy use.
Specifications
| GENERAL | |
|---|---|
| Device Type | X2 transceiver module |
| Form Factor | Plug-in module |
| PORTS & POE | |
| Interfaces | 1 x Ethernet 10GBase-LR - SC/PC single-mode x 2 |
| PERFORMANCE | |
| Data Link Protocol | 10 GigE |
| Max Transfer Distance | 10 km |
| Optical Wave Length | 1310 nm |
| POWER | |
| Power Supply Voltage | 3.3V, 1.5V, 1.2V |
| Power Consumption | 4.5W |
| PHYSICAL | |
| Width | 36 mm |
| Depth | 91 mm |
| Height | 13.5 mm |
| Weight | 10.58 oz |
| ENVIRONMENTAL | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| COMPLIANCE | |
| Compliant Standards | IEEE 802.3ae, Laser Class 1, IEC 60825-1, RoHS |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco X2 10-Port 10GBASE-LR Transceiver Module – Refurbished | X2-10GB-LR.
The X2-10GB-LR supports a maximum distance of 10 kilometers.
The X2-10GB-LR is designed for use with single-mode fiber.
Yes, the X2-10GB-LR is hot-swappable for easy deployment and replacement.
The X2-10GB-LR has a power consumption of 4.5W.
The optical wavelength of the X2-10GB-LR is 1310 nm.
The dimensions of the X2-10GB-LR are 36 mm in width, 91 mm in depth, and 13.5 mm in height.
