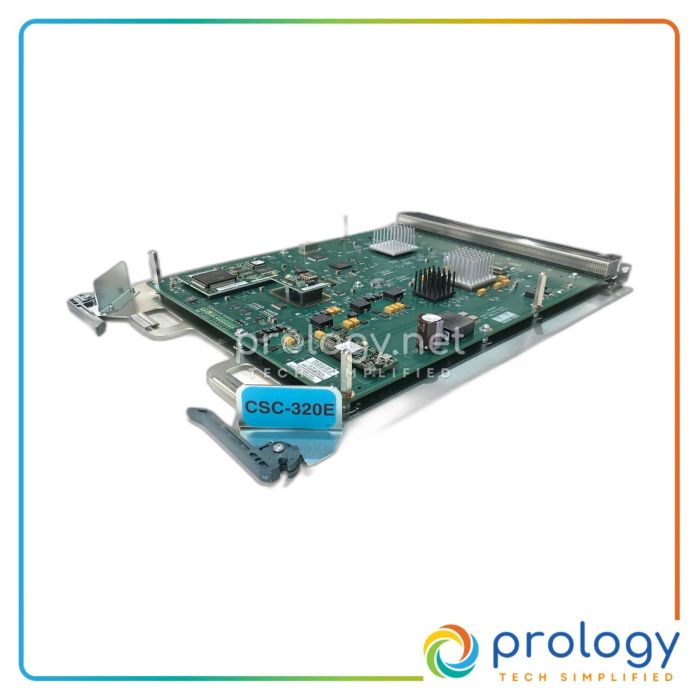

main product photo

Cisco 12416E-CSC Enhanced Clock Scheduler Card for Cisco 12000 Series 12416 Router – Refurbished

In Stock
1 units available
SKU
12416E-CSC-REFURBISHED
MPN
12416E-CSC
Be the first to review this product
A$5,518 A$5,016
Refurbished The Cisco 12416E-CSC is an Enhanced Clock Scheduler Card (CSC) for the Cisco 12000 Series 12416 router that supplies the system clock and scheduling information to the crossbar switch fabric.
In Stock
Brand Cisco
Model 12416E-CSC
Device Type Enhanced Clock Scheduler Card
Compatible Chassis Cisco 12000 Series / 12416
Fabric Redundancy 1+1 CSC
Condition Refurbished

Request a quote or add to cart — pricing available on enquiry for refurbished stock.

For international customers, please contact us for personalised support and assistance.

Request Quote / Enquire
180-Days Warranty
Secure Checkout
Free Delivery AU
Dispatch in 1–2 Business Days
Add to Wish List Add to Compare
12416E-CSC
Cisco 12416E-CSC Enhanced Clock Scheduler Card for Cisco 12000 Series 12416 Router – Refurbished REFURBISHED
Refurbished The Cisco 12416E-CSC is an Enhanced Clock Scheduler Card (CSC) for the Cisco 12000 Series 12416 router that supplies the system clock and scheduling information to the crossbar switch fabric.
The Cisco 12416E-CSC is an Enhanced Clock Scheduler Card for the Cisco 12000 Series (12416) Internet router. Within the router's crossbar switch fabric, the CSC generates the system clock that synchronizes data transfers between line cards and the route processor, and distributes scheduling information to the switch fabric cards (SFCs). A full-bandwidth configuration uses two CSCs and three SFCs, where one CSC plus the three SFCs form the active fabric and the second CSC provides redundancy.
Key Features
  • Enhanced Clock Scheduler Card (CSC) for the Cisco 12000 Series 12416 router
  • Generates the system clock that synchronizes data transfers across the crossbar switch fabric
  • Distributes scheduling information and the system clock signal to the switch fabric cards (SFCs)
  • Deployed as two CSCs (CSC0/CSC1) for 1+1 clock-plane redundancy
  • Active fabric consists of one CSC plus three SFCs; the second CSC provides redundancy
  • Installs in slot 0 (CSC0) or slot 1 (CSC1) of the switch fabric card cage
  • Draws less than 10W from the router backplane
  • Not hot-swappable in this role; router must be powered down for install/removal
Specifications
General
BrandCisco
Part Number12416E-CSC
Product TypeEnhanced Clock Scheduler Card
Compatible ChassisCisco 12000 Series / 12416 router
Architecture
Fabric RoleClock Scheduler Card (CSC) in crossbar switch fabric
Full-Bandwidth Config2 CSCs + 3 SFCs
Redundancy1+1 (second CSC provides redundancy)
Slot AssignmentSlot 0 (CSC0) or Slot 1 (CSC1)
Power
Power DrawLess than 10W from router backplane

Documents

Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.

Related Articles

Reviews
Write Your Own Review
You're reviewing:Cisco 12416E-CSC Enhanced Clock Scheduler Card for Cisco 12000 Series 12416 Router – Refurbished
Your Rating
FAQ

Common questions about the Cisco 12416E-CSC Enhanced Clock Scheduler Card for Cisco 12000 Series 12416 Router – Refurbished.

It is the Enhanced Clock Scheduler Card that generates the system clock and distributes scheduling information to the switch fabric cards in the Cisco 12416 router's crossbar switch fabric.
A full-bandwidth redundant fabric uses two CSCs and three SFCs; one CSC plus the three SFCs are active, and the second CSC provides redundancy.
In its clock-scheduler role the card should be installed or removed only with the router powered down to preserve hardware integrity.
