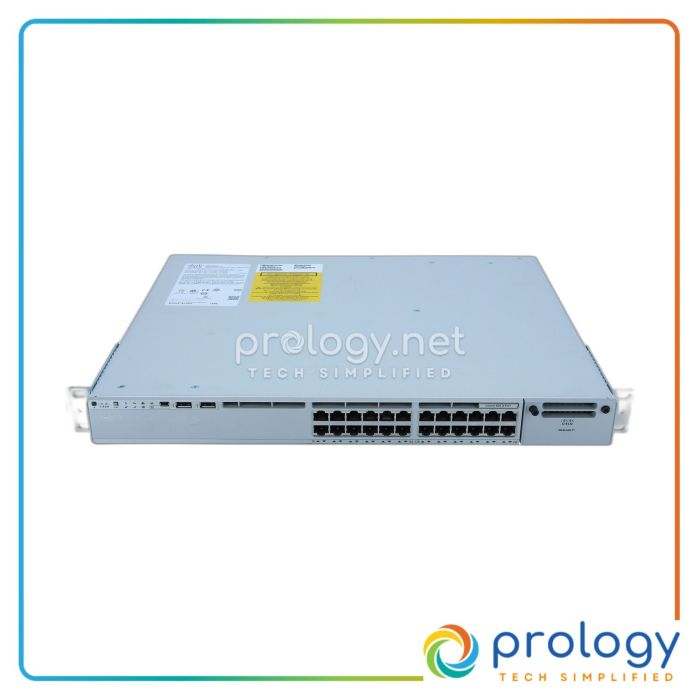

Cisco Catalyst 9200 24-Port PoE+ Network Advantage Switch – New | C9200-24P-A
In Stock — Ready to Ship
1 units available
SKU
C9200-24P-A-NEW
MPN
C9200-24P-A
A$3,944
The Cisco Catalyst 9200 24-port PoE+ switch is new and ideal for medium-sized businesses. It features Layer 3 routing, a PoE budget of up to 740W, and 160 Gbps stacking bandwidth.
In Stock — Ready To Ship
General
- Device Type: Switch - 24 ports - L3 - smart - stackable
- Enclosure Type: Rack-mountable
Ports & PoE
- Ports: 24 x 10/100/1000 Base-T RJ-45 PoE+
- PoE Budget: Up to 740W
Performance & Capacity
- Switching Capacity: 128 Gbps
- Forwarding Rate: 190.4 Mpps
- Jumbo Frame Support: 9198 bytes
Memory
- RAM: 4 GB
- Flash Memory: 4 GB
Layer & Routing
- Routing Protocols: OSPF, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SSM, MSDP, policy-based routing (PBR), RIPng
Stacking
- Stacking Bandwidth: 160 Gbps
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery AU
Dispatch in 1–2 Business Days
Cisco · Catalyst 9200 Series
C9200-24P-A 24-Port PoE+ Switch New
Designed for enterprise-level networking with advanced security features.
Overview
The Cisco Catalyst 9200 24-port PoE+ Switch with Network Advantage software extends the capabilities of intent-based networking. It is designed for medium-sized businesses and enterprise branch offices, offering robust security and automation features. This switch supports Layer 3 routing, encrypted traffic analytics, and SD-Access, ensuring a reliable and manageable networking infrastructure.
Key Features
- Power over Ethernet: Supports PoE+ with up to 30W per port.
- Stacking Bandwidth: Offers 160 Gbps for efficient stacking.
- Switching Capacity: Delivers up to 128 Gbps switching capacity.
- Forwarding Rate: Achieves a forwarding rate of 190.4 Mpps.
- MAC Address Table: Supports up to 32,000 entries.
- Environmental Resilience: Operates in humidity ranges of 5-90% non-condensing.
- Dimensions: Compact design with a depth of 44.5 cm, height of 4.4 cm, and width of 43.9 mm.
- Redundant Power Supply: Supports dual redundant power supplies for enhanced availability.
Specifications
| General | |
|---|---|
| Device Type | Switch - 24 ports - L3 - smart - stackable |
| Enclosure Type | Rack-mountable |
| Ports & PoE | |
| Ports | 24 x 10/100/1000 Base-T RJ-45 PoE+ |
| PoE Budget | Up to 740W |
| Performance & Capacity | |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 190.4 Mpps |
| Jumbo Frame Support | 9198 bytes |
| Memory | |
| RAM | 4 GB |
| Flash Memory | 4 GB |
| Layer & Routing | |
| Routing Protocols | OSPF, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SSM, MSDP, policy-based routing (PBR), RIPng |
| Stacking | |
| Stacking Bandwidth | 160 Gbps |
| Interfaces & Connectivity | |
| Uplink Configuration | Modular uplink options |
| Power | |
| Power Supply | Internal power supply - hot-plug |
| Physical | |
| Width | 43.9 mm |
| Depth | 44.5 cm |
| Height | 4.4 cm |
| Weight | 5.50 kg |
| Environmental | |
| Operating Humidity | 5 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Compliance | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco Catalyst 9200 24-Port PoE+ Network Advantage Switch – New | C9200-24P-A.
The maximum PoE budget for the C9200-24P-A is up to 740W.
The C9200-24P-A features 24 x 10/100/1000 Base-T RJ-45 PoE+ ports.
The C9200-24P-A supports stacking bandwidth of 160 Gbps.
The C9200-24P-A supports OSPF, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SSM, MSDP, policy-based routing (PBR), and RIPng.
The C9200-24P-A weighs 5.50 kg.
The dimensions of the C9200-24P-A are 44.5 cm depth, 4.4 cm height, and 43.9 mm width.
