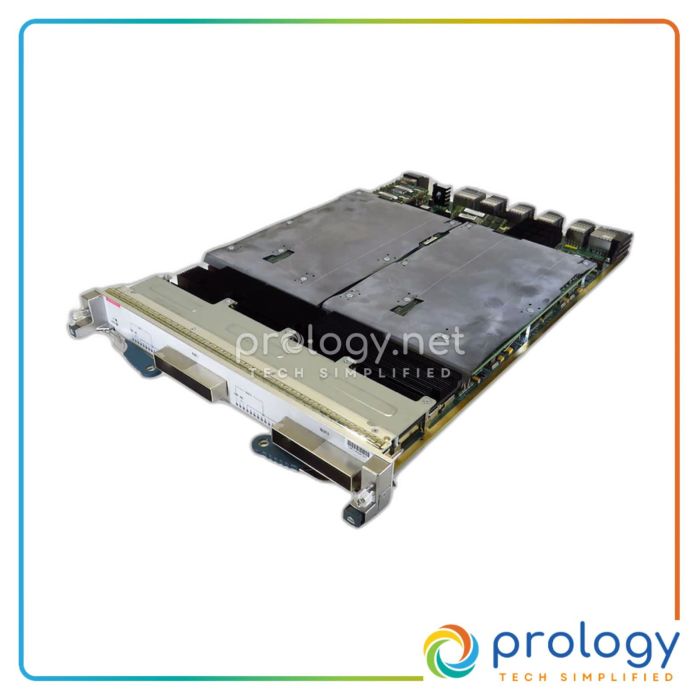

Cisco Nexus 7000 M2-Series 2-Port 100GbE with XL Option Switch – New | N7K-M202CF-22L

Name: Cisco Nexus 7000 M2-Series 2-Port 100GbE with XL Option Switch – New | N7K-M202CF-22L
Brand: Cisco
SKU: N7K-M202CF-22L
Availability: BackOrder
Rating: 4.6 (5 reviews)

Out of stock

SKU

N7K-M202CF-22L-NEW

MPN

N7K-M202CF-22L

Be the first to review this product

A$0

The Cisco Nexus 7000 M2-Series 2-Port 100GbE module is new and ideal for large-scale networks. It supports 2 x 100Gb Ethernet ports, 1,000,000 IPv4 routes, and 2GB RAM.

Out of Stock

General

Device Type: Switch - 2 ports
Enclosure Type: Plug-in module

Ports & PoE

Ports: 2 x 100Gb Ethernet - CFP

Performance & Capacity

IPv4 Routes: up to 1,000,000
IPv6 Routes: up to 350,000
NetFlow Entries: 512,000
ACL: 128,000
MAC Address Table Size: 128K entries
Jumbo Frame Support: 9216 bytes

Memory

RAM: 2 GB

Environmental

Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 5 - 90% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
MTBF: 143,690 hours

Compliance

Compliant Standards: NEBS level 3, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, EMC, ICES-003 Class A, FCC CFR47 Part 15, EN 300-386, IEC 60950-1, UL 60950-1 Second Edition, EN 60601-1-2

Request a quote or add to cart — pricing available on enquiry for refurbished stock.

For international customers, please contact us for personalised support and assistance.

Request Quote / Enquire

180-Days Warranty

Secure Checkout

Free Delivery AU

Dispatch in 1–2 Business Days

Add to Wish List Add to Compare

Description

Cisco · Nexus 7000 Series

N7K-M202CF-22L 2-Port 100GbE Switch New

High-performance module for data-intensive environments.

Overview

The Cisco Nexus 7000 M2-Series 2-Port 100 Gigabit Ethernet Module with XL Option is designed for high-density, high-bandwidth network architectures. It provides non-blocking performance on each port, making it suitable for large network cores and service provider environments. This module supports CFP optical transceivers, ensuring robust connectivity and exceptional data transfer rates.

Key Features

High-Density Connectivity: Supports 2 x 100Gb Ethernet ports for scalable networking.
M2-Series Architecture: Optimized for high-performance computing and cloud environments.
Enhanced Scalability: Integrated XL Option for increased efficiency.
Robust Security: Features 128-bit AES encryption and VLAN support.
Jumbo Frame Support: Supports frames up to 9216 bytes.
Environmental Efficiency: Designed for lower power consumption.
High Capacity: Supports up to 1,000,000 IPv4 routes and 350,000 IPv6 routes.
Long MTBF: Mean time between failures of 143,690 hours.

Specifications

General
Device Type	Switch - 2 ports
Enclosure Type	Plug-in module
Ports & PoE
Ports	2 x 100Gb Ethernet - CFP
Performance & Capacity
IPv4 Routes	up to 1,000,000
IPv6 Routes	up to 350,000
NetFlow Entries	512,000
ACL	128,000
MAC Address Table Size	128K entries
Jumbo Frame Support	9216 bytes
Memory
RAM	2 GB
Environmental
Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Humidity Range Operating	5 - 90% (non-condensing)
Min Storage Temperature	-40 °F
Max Storage Temperature	158 °F
MTBF	143,690 hours
Compliance
Compliant Standards	NEBS level 3, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, EMC, ICES-003 Class A, FCC CFR47 Part 15, EN 300-386, IEC 60950-1, UL 60950-1 Second Edition, EN 60601-1-2
