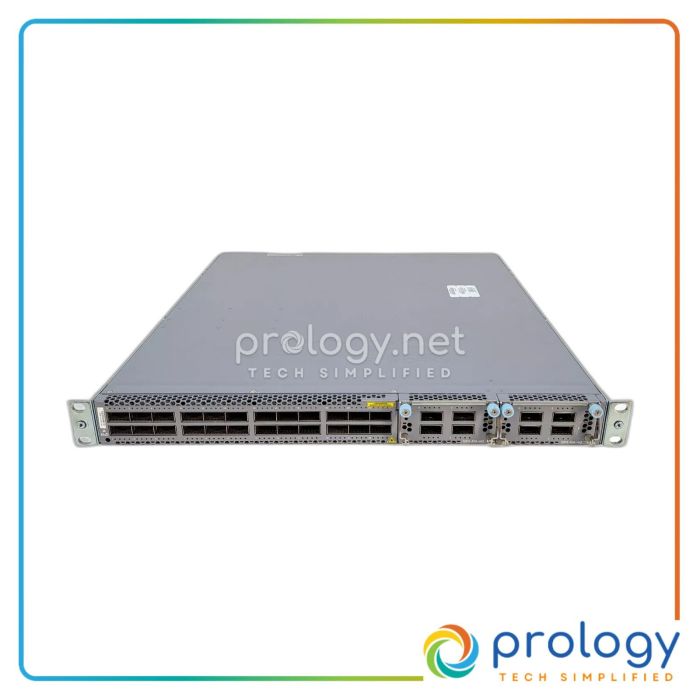

Juniper QFX5100 24-Port QSFP+ High-Performance Switch – New | QFX5100-24Q-3AFO

Out of stock
SKU
QFX5100-24Q-3AFO-NEW
MPN
QFX5100-24Q-3AFO
Be the first to review this product
A$0
The Juniper QFX5100-24Q-3AFO is a new high-performance switch for data centers. It features 24 QSFP+ ports, 3 management ports, and a switching capacity of 2.56 Tbps.
Out of Stock
General
  • Model: QFX5100-24Q-3AFO
  • Device Type: Switch - 24 ports - L3 - Managed
  • Enclosure Type: Front to back airflow rack-mountable 1U
Ports & PoE
  • Ports: 24 x QSFP+ (breakout compatible)
  • Management Ports: 3 (1 x console RJ-45, 1 x USB, 2 x SFP)
Performance & Capacity
  • Switching Capacity: 2.56 Tbps
  • Forwarding Rate: 1.44 Bpps
  • MAC Address Table Size: 288K entries
  • Jumbo Frame Support: 9216 bytes
Memory
  • RAM: 8 GB
  • Flash: 32 GB SSD
Layer & Routing
  • Layer Support: Layer 2 and 3
  • Routing Protocols: OSPF, RIP, IGMP, VRRP, PIM-SM, static IP routing
Power
  • Power Consumption: 161 Watt
  • Power Supply: 2 (hot-plug)

Request a quote or add to cart — pricing available on enquiry for refurbished stock.

For international customers, please contact us for personalised support and assistance.

Request Quote / Enquire
180-Days Warranty
Secure Checkout
Free Delivery AU
Dispatch in 1–2 Business Days
Add to Wish List Add to Compare
Juniper · QFX5100 Series
QFX5100-24Q-3AFO 24-Port Switch New
Designed for advanced data center networking.
Overview
The Juniper QFX5100-24Q-3AFO is a cutting-edge network switch tailored for demanding data center environments. It combines high performance, flexibility, and scalability, making it suitable for various networking applications. With its robust architecture, this switch supports extensive routing and switching protocols, ensuring optimal network performance.
Key Features
  • High-Density Ports: 24 QSFP+ ports for high-speed data transfer.
  • Management Ports: Three dedicated management ports for enhanced control.
  • Redundant Power Supplies: Supports dual AC power supplies for high availability.
  • Cooling Efficiency: Front-to-back airflow design optimizes cooling.
  • Expansion Capability: Two expansion slots for additional connectivity modules.
  • Robust Performance: Switching capacity of 2.56 Tbps and 1.44 Bpps forwarding rate.
  • Environmental Resilience: Operates in a wide temperature range with high humidity tolerance.
Specifications
General
ModelQFX5100-24Q-3AFO
Device TypeSwitch - 24 ports - L3 - Managed
Enclosure TypeFront to back airflow rack-mountable 1U
Ports & PoE
Ports24 x QSFP+ (breakout compatible)
Management Ports3 (1 x console RJ-45, 1 x USB, 2 x SFP)
Performance & Capacity
Switching Capacity2.56 Tbps
Forwarding Rate1.44 Bpps
MAC Address Table Size288K entries
Jumbo Frame Support9216 bytes
Memory
RAM8 GB
Flash32 GB SSD
Layer & Routing
Layer SupportLayer 2 and 3
Routing ProtocolsOSPF, RIP, IGMP, VRRP, PIM-SM, static IP routing
Power
Power Consumption161 Watt
Power Supply2 (hot-plug)
Physical
Width44.09 cm
Depth52.02 cm
Height4.37 cm
Weight9.8 kg
Environmental
Operating Temperature0 to 40 °C
Storage Temperature-40 to 70 °C
Humidity Range Operating5 - 90% (non-condensing)
Humidity Range Storage0 - 95% (non-condensing)
Compliance
Compliant StandardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP)

Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.

Reviews
Write Your Own Review
You're reviewing:Juniper QFX5100 24-Port QSFP+ High-Performance Switch – New | QFX5100-24Q-3AFO
Your Rating
FAQ

Common questions about the Juniper QFX5100 24-Port QSFP+ High-Performance Switch – New | QFX5100-24Q-3AFO.

The maximum switching capacity is 2.56 Tbps.
This switch features three management ports.
It supports 24 QSFP+ ports, which are breakout compatible.
The switch weighs 9.8 kg.
The operating temperature range is from 0 to 40 °C.
Yes, it supports dual hot-plug AC power supplies.
