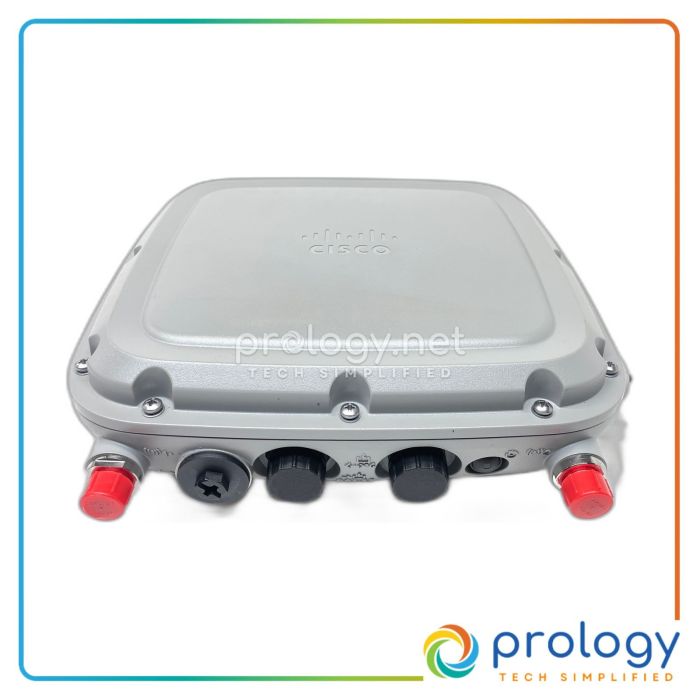

Cisco Catalyst 9124AXE 1-Port Wireless Access Point Wi-Fi 6 Outdoor AP – New | C9124AXE-Z
The Cisco Catalyst 9124AXE-Z is a new outdoor wireless access point designed for enterprises. It supports Wi-Fi 6, Bluetooth 5.0, and dual-band frequencies.
Out of Stock
General
- Device Type: Wireless access point
- Ruggedized Design: Outdoor
Ports & PoE
- Number of Ports: 1 x 1/2.5GBase-T - RJ-45
- Management Port: 1 x management (RS-232) - RJ-45
Performance & Capacity
- Data Link Protocol: IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.0
- Maximum Data Rate: 5.38 Gbit/s
Power
- Power Over Ethernet (PoE) Supported: UPOE
Physical
- Width: 259.1 mm
- Depth: 233.7 mm
- Height: 81.3 mm
- Weight: 3.18 kg
Environmental
- Min Operating Temperature: -40 °F
- Max Operating Temperature: 149 °F
- Humidity Range Operating: 0 - 100%
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery US
Dispatch in 1–2 Business Days
Cisco · Catalyst 9124AX Series
Catalyst 9124AXE Wireless Access Point New
High-performance outdoor access point for seamless connectivity.
Overview
The Cisco Catalyst 9124AXE-Z is a rugged outdoor wireless access point designed for high-density environments. It leverages Wi-Fi 6 technology to provide enhanced performance and coverage for various devices, including IoT. This access point is ideal for service providers and enterprises needing reliable outdoor connectivity.
Key Features
- Wi-Fi 6 Support: Delivers high-speed wireless connectivity with improved efficiency.
- Bluetooth 5.0: Enables low-energy wireless communication for IoT devices.
- Dual-Band Frequencies: Operates on both 2.4 GHz and 5 GHz bands for flexible deployment.
- Rugged Design: Built to withstand outdoor conditions with IP67 rating.
- Advanced Security: Supports WPA3 encryption for enhanced data protection.
- Multiple Antenna Options: Flexibility in deployment with external antennas.
- High Throughput: Capable of data rates up to 5.38 Gbit/s.
Specifications
| General | |
|---|---|
| Device Type | Wireless access point |
| Ruggedized Design | Outdoor |
| Ports & PoE | |
| Number of Ports | 1 x 1/2.5GBase-T - RJ-45 |
| Management Port | 1 x management (RS-232) - RJ-45 |
| Performance & Capacity | |
| Data Link Protocol | IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.0 |
| Maximum Data Rate | 5.38 Gbit/s |
| Power | |
| Power Over Ethernet (PoE) Supported | UPOE |
| Physical | |
| Width | 259.1 mm |
| Depth | 233.7 mm |
| Height | 81.3 mm |
| Weight | 3.18 kg |
| Environmental | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 0 - 100% |
| Compliance | |
| Environmental Compliance | IP67, EN55024, AS/NZS 60950-1 |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco Catalyst 9124AXE 1-Port Wireless Access Point Wi-Fi 6 Outdoor AP – New | C9124AXE-Z.
The Catalyst 9124AXE-Z supports a maximum data rate of 5.38 Gbit/s.
Yes, it is designed for outdoor deployment with an IP67 rating.
The Catalyst 9124AXE-Z supports external detachable antennas.
Yes, it supports UPOE for power over Ethernet.
It supports IEEE 802.11ax (Wi-Fi 6) and Bluetooth 5.0.
The operating temperature range is from -40 °F to 149 °F.
